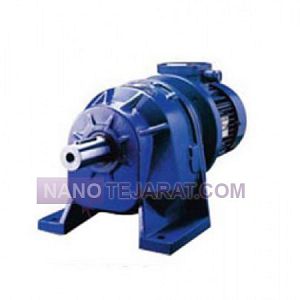

Motovario helical gearbox

The Motovario helical gearbox series delivers high-efficiency power transmission for industrial applications, featuring precision-engineered helical gearing with torque capacities ranging from 100 Nm to 15,000 Nm. These gearboxes achieve exceptional mechanical efficiency up to 96% through optimized tooth profiles and premium bearing systems. The cast iron or aluminum housing options provide superior heat dissipation and corrosion resistance, while the modular design allows for multiple mounting positions foot-mounted, flange-mounted, or shaft-mounted configurations. With backlash as low as 5 arc-minutes in precision models, these units ensure smooth operation and accurate positioning. Standard models feature IP55 protection, with optional IP66 sealing available for harsh environments. The advanced lubrication system extends maintenance intervals up to 20,000 operating hours.

Motovarios helical gear technology reduces operational noise levels below 68 dBA while minimizing vibration for enhanced system longevity. The hardened and ground gear teeth case-hardened to 60 HRC provide extended service life even under continuous heavy loads. These gearboxes support various input options including IEC-standard motor flanges and direct shaft connections. Thermal optimization maintains

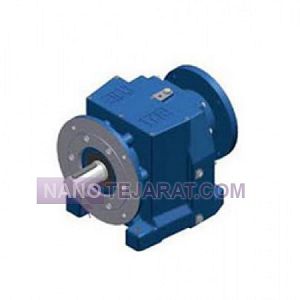

SITI Helical Gearbox

The SITI helical gearbox series delivers high-efficiency power transmission with torque capacities ranging from 30 Nm to 10,000 Nm. Featuring precision-ground helical gears with 20CrMnTi alloy steel construction, these units achieve up to 97% mechanical efficiency while operating at noise levels below 63 dBA. The rugged cast iron housing GG25 grade provides exceptional thermal stability and vibration damping, with optional aluminum alloy versions for weight-critical applications. Available in foot-mounted, flange-mounted, and shaft-mounted configurations, these gearboxes support IEC standard motor interfaces and offer ultra-precise models with backlash as low as 2 arc-minutes. The triple-lip sealing system ensures IP67 protection against dust and water ingress, while the advanced lubrication system extends maintenance intervals to 30,000 operating hours.

SITIs innovative gear design incorporates carburized and tempered gear teeth 60-62 HRC with profile grinding for maximum durability under continuous heavy loads. The optimized bearing arrangement exceeds AGMA load capacity standards by 15-20%, ensuring reliable performance in demanding conditions. These gearboxes operate efficiently across an extended temperature range -25°C to +110°C and feature corrosion-resistant surf

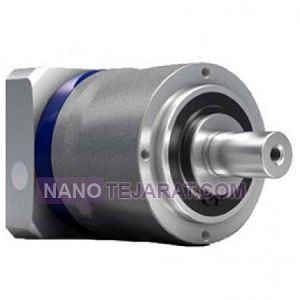

Alpha Solar Gearbox

Alpha Planetary Gearboxes offer an extensive torque capacity range from 300 Nm to 4 million Nm with mechanical efficiency exceeding 97%, achieved through multi-stage precision helical gear design. Nitrided and ground gears with optimized helix angle maintain mechanical backlash below 2 arc minutes and reduce operational noise to less than 62 dBA. The reinforced housing, made of GGG-70 ductile iron with electrostatic coating, withstands radial loads up to 300 kN and axial loads up to 200 kN.

An intelligent lubrication system with active temperature control ensures stable performance across a temperature range of -30°C to +100°C, making this product suitable for industrial robotics, material handling systems, and heavy machinery. Preloaded tapered roller bearings and a multi-stage sealing system with a grease chamber extend operational life under harsh conditions.

The modular structure of these planetary gearboxes enables direct flange mounting onto standard IEC and NEMA motors, supporting horizontal, vertical, and angular mounting configurations. Compliance with ISO 14635-1, AGMA 6008, and DIN 3990 standards is provided, along with optional ATEX/IECEx Zone 22 certifications. Sun and planetary gears undergo vacuum heat treatment, guaranteeing a 35,000-hour service life unde

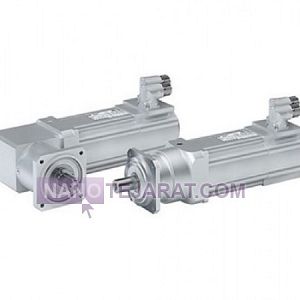

Lenze solar gearbox

The Lenze planetary gearbox delivers high-efficiency power transmission through its precision-engineered multi-stage helical gear system, offering torque capacities from 200 Nm to 3.5 million Nm with mechanical efficiency exceeding 96%. Its compact design incorporates case-hardened, ground gears with optimized helix angles, reducing operational noise below 65 dBA while maintaining backlash as low as 3 arc-minutes. The reinforced housing utilizes spheroidal graphite iron EN-GJS-600 with corrosion-resistant coating, supporting radial loads up to 280 kN and axial loads of 180 kN. An integrated temperature-controlled lubrication system ensures reliable performance across -25°C to +80°C ambient conditions, ideal for packaging, material handling, and automation applications.

Lenzes modular planetary gear units feature flange-mount compatibility with IEC/NEMA motors and offer horizontal, vertical, or torque-arm installation configurations. Key structural innovations include preloaded tapered roller bearings, triple-labyrinth sealing with optional lip seals, and vibration-dampened housing geometry. Compliant with ISO 6336, AGMA 2015, and DIN 3990 standards, these gearboxes provide optional ATEX/IECEx certifications for explosive atmospheres. The hardened and ground sun/planet gear

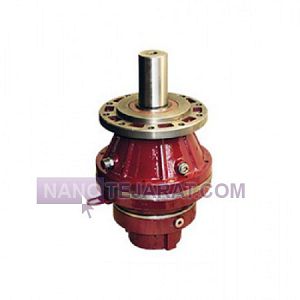

Shahbaz solar gearbox

The Shahbaz planetary gearbox delivers superior power transmission through its precision-engineered multi-stage planetary system, capable of handling torque loads up to 3.8 million Nm with 96% mechanical efficiency. Its compact design features case-hardened, ground helical gears with optimized tooth profiles that minimize noise levels below 68 dBA. The heavy-duty housing, constructed from high-grade SG iron with corrosion-resistant coating, withstands radial forces up to 450 kN and axial loads of 280 kN. An advanced forced lubrication system with integrated temperature control ensures reliable operation in ambient temperatures ranging from -25°C to +65°C, making it ideal for cement plants, mining operations, and heavy industrial applications.

Shahbaz planetary gear units boast a modular construction with multiple mounting options horizontal, vertical, and flange configurations for flexible installation. Key components include tapered roller bearings for enhanced load capacity, labyrinth seals with optional V-ring upgrades, and thermally optimized housing geometry. Compliant with ISO 1328, AGMA 2008, and DIN 3967 standards, these gearboxes offer optional ATEX certification for hazardous environments. The precision-ground gears deliver backlash as low as 4 arc-minutes, suita

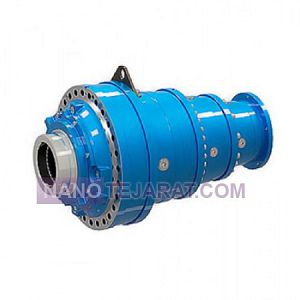

Brevini solar gearbox

The Brevini planetary gearbox is engineered for high-performance industrial applications, featuring a compact and robust design with multi-stage planetary gear systems. It delivers exceptional torque density up to several million Nm while maintaining minimal weight and footprint. The gearbox incorporates precision-ground, case-hardened gears for optimal efficiency up to 98% and reduced energy loss. Its reinforced housing withstands heavy mechanical loads, and advanced lubrication systems ensure reliable operation in harsh conditions. Available in horizontal, vertical, and flange-mounted configurations, it supports optional upgrades like integrated brakes, torque arms, and IoT-enabled sensors for predictive maintenance. Brevini gearboxes comply with ISO, AGMA, and DIN standards, offering customizable solutions for mining, energy, and heavy machinery sectors.

Designed for durability and low maintenance, the Brevini planetary gearbox uses high-quality alloy steel components and advanced heat treatment processes to extend service life. It features a modular design for easy adaptation to specific load and speed requirements, with backlash as low as 1-3 arc-min for precision applications. The gearbox includes efficient cooling options air, water, or oil and corrosion-resistant coa

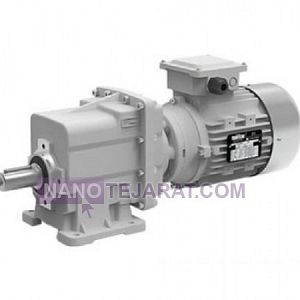

Transtecno helical gearbox

The Transtecno helical gearbox series offers high-performance power transmission solutions with torque capacities ranging from 50 Nm to 12,000 Nm. Engineered with precision-cut helical gears, these units achieve mechanical efficiency up to 96% while maintaining exceptionally low noise levels below 65 dBA. The heavy-duty cast iron housing provides superior heat dissipation and vibration damping, with optional aluminum housings available for weight-sensitive applications. Featuring multiple mounting configurations foot, flange, and shaft-mounted options, these gearboxes support standard IEC motor interfaces and offer backlash as low as 3 arc-minutes in precision models. The advanced sealing system meets IP66 protection standards, making them suitable for harsh industrial environments.

Transtecnos helical gear technology incorporates case-hardened gear teeth 58-60 HRC with precision grinding for extended service life under continuous operation. The optimized bearing arrangement ensures reliable performance with radial and axial load capacities exceeding industry standards. These gearboxes operate efficiently across a wide temperature range -20°C to +100°C and come with long-life lubrication for maintenance intervals up to 25,000 hours. Certified to ISO 9001 standards with CE,

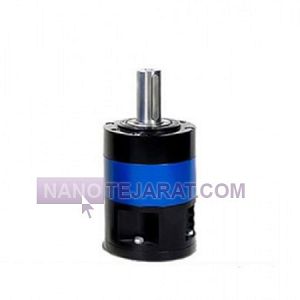

Tramec servo motor solar gearbox

Tramec planetary gearboxes are designed for servo motor applications and feature a planetary planetary structure. These gearboxes offer high output torque and remarkable power density, with a wide range of reduction ratios standard reduction ratios and high custom ratio options and excellent mechanical efficiency often above 95%. Their compact design and extremely low backlash less than 1 arcmin in Precision models are key features.

These gearboxes are typically built with a lightweight yet robust one-piece aluminum housing, hardened and ground gears for high strength and durability, and high-quality bearings to withstand radial and axial loads. The output is often available as a smooth shaft, splined shaft, or standard flanged interface compatible with common servo motor interfaces.

Tramec gearboxes for precision servo applications require smooth and quiet operation, high positioning accuracy, and exceptional reliability. They can withstand high shock and momentary loads and are available in different backlash classes from Standard to Precision and High Precision. These gearboxes are usually pre-filled with long-life grease and require minimal maintenance. Their optimized design ensures smooth power transmission with minimal heat dissipation.

Compliance with inter

Iran Helical Gearbox

Iran Helical Gearbox is a reliable choice among industrial power transmission systems, offering stable, quiet, and high-efficiency performance through the use of helical gears. This gearbox is precisely engineered and manufactured in compliance with international standards such as ISO and DIN, making it suitable for a wide range of industrial applications. Its internal structure is designed around continuous gear engagement to ensure smooth torque transmission and minimize sudden shocks. Iran helical gearboxes are typically available in various gear ratios and power capacities, making them ideal for use in conveyor systems, packaging machinery, assembly lines, and mining operations.

Structurally, the Iran Helical Gearbox features a durable housing made of gray cast iron or industrial-grade aluminum, offering high resistance to mechanical stress and environmental corrosion. These gearboxes are available with solid or hollow shafts, flange-mounted or foot-mounted designs to accommodate various installation requirements. The gears are made of alloy steel, hardened through heat treatment, and precision-ground to ensure maximum accuracy and minimal friction. High-quality bearings and oil seals are used to guarantee leak-free operation and extended service life. Iran helical gearbox

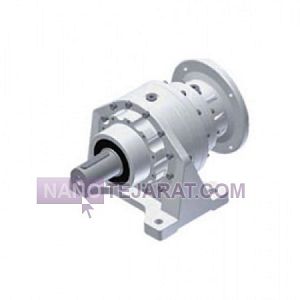

SITI solar gearbox

The SITI planetary gearbox utilizes advanced planetary gear technology to deliver smooth, precise, and highly efficient power transmission for industrial systems. Featuring a modular structure with extensive customization options, this gearbox adapts perfectly to diverse industrial requirements including steel plants, cement factories, power stations, and mining operations. Its key advantages include multiple reduction ratios, high torque capacity, and compact dimensions - all contributing to enhanced operational efficiency and reduced energy consumption in industrial machinery.

From a technical perspective, the SITI planetary gearbox boasts a durable housing constructed from premium materials such as die-cast iron or hardened steel, ensuring exceptional resistance to mechanical stress and harsh environmental conditions. The advanced lubrication system combined with high-performance bearings and bushings guarantees extended service life and uninterrupted operation even under extreme temperatures and heavy loads. The multi-stage gear design enables high reduction ratios without significant increases in size or weight, optimizing installation space and simplifying maintenance procedures. Precision-engineered components ensure minimal vibration and noise levels below industry s

SEW solar gearbox

The SEW planetary gearbox is recognized as one of the most advanced types of industrial gear units, specifically engineered for power transmission in heavy-duty and complex systems. Utilizing a planetary gear arrangement, this gearbox delivers exceptionally high torque in a compact design. Its modular construction allows for flexible configurations, making it suitable for demanding industrial applications such as steel production, mining, cement plants, and power generation. The SEW planetary gearbox, particularly the P series, offers torque capacities exceeding 4 million Nm, a wide range of gear ratios, and high mechanical efficiency, making it the optimal choice for power transmission in harsh environments.

From a technical perspective, SEW planetary gear units are equipped with reinforced bearings and shafts, ensuring reduced friction and extended operational lifespan. An advanced lubrication system combined with optional oil cooling units guarantees continuous and reliable performance, even under high temperatures and extreme loads. Additionally, the use of multiple planetary gear stages allows for high gear ratios without increasing the overall size of the gearbox. These features, along with precision engineering in compliance with international standards, make SEW planet

Helical gearbox Rahnama

The Helical Gearbox Rahnama is one of the most widely used components in industrial power transmission systems, known for its precise design and stable performance across various applications. This gearbox uses helical spiral gears that deliver smooth and quiet torque transmission while ensuring high efficiency and minimal vibration. Due to the gradual engagement of the gear teeth, wear is significantly reduced, leading to extended service life. These features, along with a wide range of gear ratios and high torque capacity, make the gearbox ideal for production lines, conveyors, mining, food processing, and steel industries. Its flexibility in horizontal or vertical mounting positions adds to its versatility.

Structurally, the Helical Gearbox Rahnama features a durable housing made from cast iron or aluminum alloy, offering high resistance against mechanical stress and environmental corrosion. Different models are available with flange-mounted, foot-mounted, hollow shaft, or solid shaft configurations to suit diverse industrial requirements. High-quality industrial bearings and reliable seals minimize oil leakage and enhance the gearbox’s overall durability while reducing maintenance needs. These gearboxes are easily coupled with standard IEC motors and other industrial dri

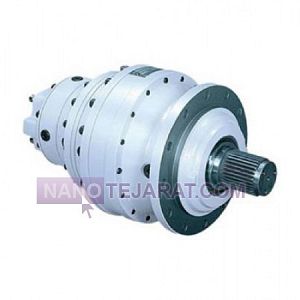

Bonfiglioli solar gearbox

The Bonfiglioli solar planetary gearbox is an advanced power transmission solution designed for heavy-duty industrial applications across sectors such as mining, energy, transportation, agriculture, and manufacturing. Utilizing planetary gear technology and a modular design, this gearbox delivers high torque transmission within a compact footprint, ensuring high efficiency with minimal power loss. Its multi-stage configuration allows for precise speed reduction and smooth, stable operation under variable load conditions. The hardened gear system and robust bearings ensure long service life and reliable performance even in high-stress environments.

From a technical perspective, the Bonfiglioli solar gearbox is available in various models with a wide range of gear ratios—from approximately 1:3 to over 1:1000—making it adaptable to diverse industrial requirements. The gearbox housing is made from high-strength steel or cast iron, offering excellent resistance to impact, vibration, and harsh environmental conditions. Internal lubrication with high-temperature industrial oil minimizes friction, enhances performance, and reduces the need for frequent maintenance. These gearboxes also support flexible mounting options and are compatible with electric, hydraulic, or hybrid motors,

IMAK helical gearbox

The IMAK helical gearbox is a high-quality product in the field of industrial power transmission that utilizes alloy steel helical gears to provide smooth and quiet operation. Thanks to its precise engineering design and use of premium raw materials, this gearbox can simultaneously withstand radial and axial loads while offering high efficiency in torque transmission. The modular structure of the IMAK gearbox allows easy installation in various positions, making it suitable for diverse industrial applications including production lines, conveyor systems, and material processing machinery. Compliance with international standards in design and manufacturing ensures the product’s quality and durability under harsh and continuous working conditions.

Structurally, the IMAK helical gearbox features a robust housing made from cast iron or aluminum alloy that offers excellent resistance to mechanical stresses and environmental corrosion. The gears are manufactured through precise heat treatment and grinding to guarantee optimal performance and long service life. A multi-layer sealing system combined with high-quality industrial bearings prevents oil leakage and enables easy maintenance. Additionally, the design of this gearbox allows compatibility with various standard electric moto

PC Helical Gearbox

The PC helical gearbox is a compact and high-efficiency industrial power transmission system that uses precision-cut helical gears to deliver torque with minimal noise and vibration. It is built from high-quality alloy steel with carefully controlled heat treatment processes, ensuring high strength, wear resistance, and extended service life. The housing is typically made of reinforced cast iron or aluminum, providing durability under mechanical stress and harsh environmental conditions. Designed for light to medium-duty industrial applications, the PC gearbox can be installed in various orientations and is suitable for use in packaging lines, conveyor systems, and assembly machinery.

Structurally, the PC helical gearbox features a modular design that allows easy coupling with standard electric motors. Its multi-layer sealing system prevents oil leakage and protects the internal components from dust and moisture. This gearbox is capable of handling both radial and axial loads simultaneously, making it a reliable option for mechanical systems that require precision and operational stability. In addition, its user-friendly design and easy access to internal parts simplify maintenance and periodic servicing. With high efficiency, energy-saving performance, and smooth operation, t

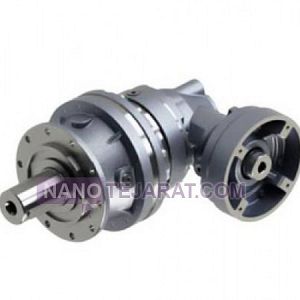

PGR solar gearbox

The PGR series planetary gearbox represents advanced motion control technology, engineered for high-performance servo applications. Featuring a precision planetary gear design with reduction ratios from 3:1 to 100:1+, it delivers exceptional torque density and mechanical efficiency exceeding 96%. The hardened and ground gear teeth, combined with high-quality bearings, ensure reliable operation under heavy radial and axial loads. With backlash as low as 1 arc-minute in precision models, it maintains superior positioning accuracy for demanding industrial automation. The compact aluminum housing provides optimal heat dissipation while reducing overall system weight.

PGR gearboxes incorporate a robust one-piece housing design with multiple output options including solid shaft, splined shaft, and servo-mount flange configurations. Advanced lubrication technology extends maintenance intervals, while the optimized gear geometry ensures quiet operation even at high speeds. The units meet ISO 9001 quality standards and carry CE certification, making them suitable for CNC machinery, robotic systems, and precision packaging equipment. Their ability to withstand shock loads and momentary overloads, combined with minimal thermal expansion characteristics, makes them ideal for continuous

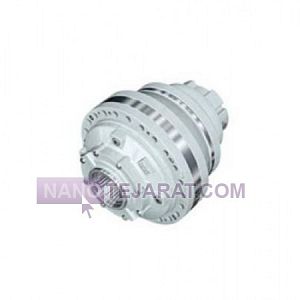

Reggiana solar gearbox

The Reggiana planetary gearbox is a high-efficiency, modular power transmission unit designed for heavy-duty applications in agricultural, mining, marine, and industrial sectors. Utilizing planetary epicyclic gear technology, this gearbox enables the transfer of high torque with a compact size and relatively low weight. Its multi-stage configuration allows for precise control of output speed while ensuring optimal mechanical power transmission. The precision-hardened gear system offers exceptional resistance to pressure and wear, resulting in extended service life even under demanding operating conditions.

Technically, the Reggiana planetary gearbox features a wide range of reduction ratios, available from approximately 1:3 up to over 1:1000, making it suitable for various machinery and production lines. The housing is constructed from high-grade cast iron or specialized alloys, providing high structural strength along with vibration absorption and noise reduction capabilities. The internal lubrication system uses long-lasting industrial-grade oil, minimizing the need for frequent maintenance while ensuring consistent performance under high temperatures and loads. Key advantages of this product include flexible mounting options, modular component design, and compatibility with

Lenze helical gearbox

The Lenze helical gearbox is an advanced power transmission system engineered with German precision to deliver highly reliable, quiet, and efficient performance in industrial applications. It features case-hardened and ground helical gears with optimized contact angles that maximize mechanical efficiency. The housing is made from vibration-resistant cast iron or aluminum and is designed in a modular format, allowing for flexible installation positions and seamless integration with various electric motors. These features make Lenze a premium choice for industrial automation, packaging lines, CNC machines, and complex transmission systems.

Structurally, the Lenze helical gearbox is equipped with an optimized internal lubrication system that minimizes friction and extends the life of moving components. Its multi-layer sealing system with an IP65 protection rating prevents dust and moisture ingress, ensuring stable performance even in harsh environments. The gearbox is engineered to handle combined radial and axial loads while reducing energy consumption and improving overall system efficiency. Additional benefits include easy maintenance, low operating noise, and compatibility with intelligent industrial controllers, placing this gearbox among the top-tier solutions for professio

Pars Helical Gearbox

The Pars Helical Gearbox is a practical and reliable solution for industrial power transmission, designed with precision and high build quality for use in various machines and production lines. Utilizing helical gears, this gearbox ensures smooth power transfer with minimal noise, high efficiency, and low vibration. The helical gear design enables gradual engagement between gear teeth, which reduces wear, increases durability, and improves long-term performance. Pars helical gearboxes are available in a wide range of gear ratios and torque capacities, making them suitable for conveyors, packaging equipment, mixers, elevators, and many other industrial applications.

Structurally, the Pars Helical Gearbox features a robust housing made of cast iron or aluminum alloy, offering excellent resistance to mechanical stress, impact, and environmental corrosion. High-quality bearings and seals are used to prevent oil leakage and maintain optimal internal lubrication. These gearboxes are available in various configurations, including solid or hollow output shafts, foot-mounted or flange-mounted designs, allowing for easy installation on different types of machinery. Pars gearboxes can be coupled with standard industrial motors and deliver stable, reliable performance even under continuou

Nord Helical Gearbox

The Nord helical gearbox is a distinguished product in industrial power transmission, designed with a strong focus on build quality and optimal performance. This gearbox utilizes alloy steel helical gears with precise heat treatment, which not only enhances wear resistance but also significantly improves power transmission efficiency. The housing is made from durable and robust alloys, ensuring the ability to withstand heavy loads and harsh environmental conditions. Its modular design allows for easy installation in various positions and compatibility with standard motors. Additionally, low noise levels and minimal vibration make the Nord gearbox ideal for use in sensitive systems and advanced industrial environments.

Structurally, the Nord helical gearbox is equipped with an optimized automatic lubrication system that reduces internal friction and extends the lifespan of moving components. The sealing system with an IP65 protection rating prevents the ingress of dust and moisture, ensuring stable operation under demanding working conditions. This gearbox can handle both radial and axial loads simultaneously and delivers high efficiency, reducing energy consumption. Easy maintenance and flexible installation options make the Nord helical gearbox a popular and reliable choice a

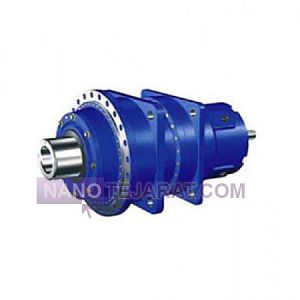

Behin Solar Gearbox

The Behin planetary gearbox is a widely used product in industrial power transmission, designed based on a planetary gear system for heavy and medium-heavy applications. Its structure employs planetary and sun gears to transmit input power smoothly and uniformly to the output without vibrations. The modular design and customization options make the Behin planetary gearbox suitable for various industries such as mining, oil and gas, petrochemical, and production lines. These gearboxes typically offer high torque capacity, transmission efficiency above 95%, and a wide range of gear ratios.

From a technical standpoint, the Behin planetary gearbox is manufactured with a durable housing made of cast iron or reinforced steel to withstand heavy radial and axial loads. Its advanced internal lubrication system, along with the possibility of installing cooling units for special applications, ensures reliable operation. The use of high-quality industrial bearings and shafts guarantees long service life and reduces internal wear. Additionally, the multi-stage gear design enables achieving high gear ratios without significantly increasing the overall size of the gearbox. These features make the Behin planetary gearbox an ideal choice for industries that prioritize efficiency and durability

Worm gearbox Motovario NMRV030

The Motovario NMRV030 worm gearbox is designed with a gear ratio ranging from 5 to 100 and can transmit torque up to 50 Nm. The input and output shafts are made of high-strength steel, providing high radial and axial load capacity. Its smooth operation and low noise level make it suitable for industrial systems requiring high precision. The aluminum housing is lightweight and corrosion-resistant, while the internal lubrication system with industrial oil extends the lifespan of the gears. This gearbox can be mounted both vertically and horizontally and is compatible with IEC standard motors. Its compact dimensions and modular design ensure easy installation in confined spaces.

The Motovario NMRV030 offers an efficiency of approximately 85%, making it suitable for light to medium power transmission applications. Its operating temperature ranges from -10°C to 90°C, allowing use in humid or dusty industrial environments. The maximum input speed is 1500 rpm, and the output shaft precision is below 0.02 mm. The worm gear undergoes precise heat treatment, enhancing wear and corrosion resistance. Easy installation and maintenance, long service life, and high flexibility make the Motovario NMRV030 an ideal choice for power transmission in production lines and mechanical equipment.

Helical gearbox Satisfied

The Rezaayat Helical Gearbox is a high-quality product in the field of industrial power transmission that uses helical gears to deliver power transfer with minimal noise and vibration. The precise gear design and use of premium raw materials enhance the gearbox’s service life and durability. This product can withstand both radial and axial loads simultaneously and is suitable for various applications such as production lines, conveyor systems, packaging machinery, and other industrial equipment. Manufactured with high precision and in compliance with international standards, the Rezaayat helical gearbox offers stable and reliable performance.

Structurally, this gearbox features a robust housing made from cast iron or aluminum alloy, providing excellent resistance to impact and environmental corrosion. The gears are heat-treated and precision ground to ensure maximum efficiency and minimal friction. Additionally, a multi-layer sealing system combined with high-quality industrial bearings prevents oil leakage and facilitates easy maintenance, ensuring long-lasting durability. The Rezaayat helical gearbox can be easily coupled with various standard electric motors and delivers dependable performance under heavy and continuous operating conditions.

STM helical gearbox

The STM helical gearbox is recognized as a high-quality industrial product designed for smooth and stable power transmission. This gearbox features helical gears made from alloy steel with precise heat treatment, which enhances wear resistance and improves transmission efficiency. The gearbox housing is constructed from strong and lightweight alloys, ensuring it can withstand mechanical stresses and various environmental conditions. Its modular design and ability to be installed at different angles provide high flexibility for diverse industrial applications. Additionally, reduced noise and vibration make this gearbox suitable for use in sensitive environments and advanced equipment.

Structurally, the STM helical gearbox is equipped with an optimized internal lubrication system that reduces friction and extends the lifespan of moving parts. A multi-layer sealing system with an IP65 rating offers reliable protection against dust and moisture ingress, ensuring stable performance under harsh working conditions. This gearbox can handle both radial and axial loads simultaneously, and with its high efficiency and easy maintenance, it is an excellent choice for production lines, heavy machinery, and industrial power transmission systems.

Chinese CEW NMRV25 worm gearbox

The CEW NMRV25 worm gearbox is designed with a gear ratio ranging from 5:1 to 100:1 and supports an input power of up to 1.5 kW. The output shaft is made of alloy steel with a surface hardness of 58 HRC and can withstand radial loads up to 2000 N. Its aluminum housing is precision-machined from a lightweight, corrosion-resistant alloy and allows installation at various angles. Internal permanent lubrication with industrial grease extends the gears’ service life up to 25,000 hours. The input shaft diameter is 14 mm, and the output shaft diameter is 25 mm, while precise assembly reduces vibration and noise levels to 55 dB.

The CEW NMRV25 worm gears are manufactured to ISO Class 6 accuracy and feature a 14-degree helix angle for smooth torque transmission. Mechanical efficiency varies between 75% and 85% depending on the reduction ratio, and it can handle peak loads up to 4000 N. Its compact design allows easy installation on automation equipment and production lines. Shafts are reinforced with nickel-chrome coating, enhancing wear and corrosion resistance. Simple flange and base mounting ensure precise alignment, delivering smooth, slip-free performance in industrial and semi-industrial applications.

Sharif Helical Gearbox

The Sharif Helical Gearbox is an advanced product in the field of industrial power transmission, utilizing high-precision helical gears to deliver smooth and quiet operation. Engineered with precise design and high-quality materials, this gearbox is capable of transmitting high torque while simultaneously handling radial and axial loads. Its modular design and versatile mounting options provide flexibility for use in production lines, conveyor systems, and various industrial machinery. Compliance with international standards ensures its quality and long-lasting durability.

Structurally, the Sharif Helical Gearbox features a robust housing made from cast iron or aluminum alloy, offering high resistance to mechanical stress and environmental corrosion. The gears are manufactured through precise heat treatment and grinding processes to guarantee optimal performance and extended service life. Advanced sealing systems and high-quality bearings reduce friction and prevent oil leakage, enabling easy and efficient maintenance. The Sharif helical gearbox is easily coupled with different electric motors and provides reliable performance under heavy and continuous operating conditions.

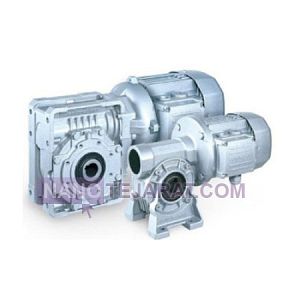

Bonfiglioli VF-W Helical-Worm Gearbox

The Bonfiglioli VF/W helical-worm gearbox features a gear ratio ranging from 7 to 100 and can transmit torque from 50 to 6000 Nm. The allowable input speed reaches up to 3000 rpm, while the average transmission efficiency ranges between 91 and 95 percent. The housing is made of high-strength aluminum alloy or ductile cast iron, providing excellent resistance to corrosion and mechanical stress. The output shaft can be selected as either hollow or solid, with radial and axial load capacities calculated according to ISO 6336 standards. The gearbox is continuously lubricated using recommended industrial lubricants and can operate in ambient temperatures from -20 to 40 °C.

The VF/W gearbox is equipped with an optimized cooling system and precisely CNC-machined gear profiles, reducing noise levels to 68 dB. Its modular design allows direct mounting of standard IEC motors, and flexible couplings ensure stable performance. The gearbox weight varies from 15 to 950 kg depending on size and gear ratio, and the output shaft can withstand shock loads up to 150 percent of the nominal torque. Easy maintenance is enabled through accessible gear housing and lubrication system design.

Bauer BG Series Direct Shaft Gearbox

The Bauer BG series direct shaft gearboxes, featuring a helical design, are developed for light to medium industrial applications. These gearboxes are available with input power ranging from 0.03 kW to 75 kW and output torque between 20 Nm and 18,500 Nm. The gear ratio varies from 2.46 to 73.13 in two-stage models and from 12.45 to 259 in three-stage models. The gearbox housing is made of durable cast iron and features an IP65 protection rating according to IEC 529, providing resistance against dust and water splashes. Additionally, these gearboxes offer low-noise operation and high installation flexibility, supporting mounting options such as base, flange, and shaft.

Other notable features of the BG series include compatibility with inverters, enabling seamless integration with current and future systems. They comply with international standards such as NEMA, IEC, CSA, and CE, making them suitable for humid and dusty environments. The estimated oil life is 15,000 hours with mineral oil and 25,000 hours with synthetic oil. These features, combined with an economical design and high efficiency, make the BG series gearboxes an ideal choice for a wide range of industries.

STM Italy AR/1 Series Inline Shaft Gearbox

The STM Italy AR/1 Series inline shaft gearbox, featuring an integrated design and helical gears, is suitable for transmitting power from 0.5 to 55 kilowatts and torque from 20 to 600 Newton-meters. The gear ratio in this series ranges from 1:1.2 to 1:7.5, and the high precision manufacturing of the gears reduces noise and extends the system’s service life. Its robust steel housing enhances resistance to radial and axial loads, while optimized internal lubrication ensures stable operation at temperatures between 0 and 50 degrees Celsius. The standard flange mounting allows direct connection to motors and various machinery.

The AR/1 series gearboxes, with their lightweight design relative to power and compact structure, are ideal for steel, petrochemical, food industries, and industrial mixers. The inline shaft output enables easy connection to auxiliary equipment without complex couplings. The gear structure is optimized to provide over 95 percent mechanical efficiency, and its wear and fatigue resistance minimizes routine maintenance. These features make the STM AR/1 a reliable choice for industrial applications with variable loads and harsh environments.

Bauer German worm gearbox

The Bauer worm gearbox from Germany features industrial design and high precision, with a power range of 0.03 to 5.5 kW and torque between 25 and 1000 Nm. The gear ratio in this series is adjustable from 4.6:1 to 932:1, offering high radial and axial load capacity. The housing is made of durable aluminum and cast iron, while the hardened gear surfaces ensure quiet operation and long service life. Easy installation with various standard flanges and shafts provides versatility for applications such as conveyors, packaging machines, and power transmission systems.

Bauer worm gearboxes offer high efficiency and precise motion transmission, capable of continuous operation in ambient temperatures from -10 to 40°C. The modular design allows easy gear replacement and quick maintenance, while optimized lubrication reduces friction and energy consumption. These gearboxes comply with DIN and ISO standards, providing resistance to vibration and shock, making them suitable for demanding industrial environments like food production lines and heavy machinery. Vertical and horizontal installation flexibility enables connection to electric motors and precise speed control.

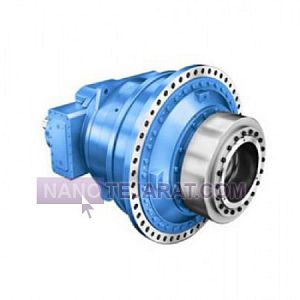

Flender solar gearbox

The Flender planetary gearbox is a highly advanced power transmission solution designed for heavy-duty and continuous applications such as steel, mining, cement, and power generation industries. With its modular design and precision engineering, the planetary epicyclic configuration allows for the transmission of high torque in a compact footprint. The multi-stage gear arrangement and even load distribution across the gear teeth reduce wear and extend the service life of internal components, ensuring smooth and vibration-free operation.

Technically, the Flender planetary gearbox supports extremely high torque outputs—up to several million Newton-meters—and offers a wide range of gear ratios that can be tailored to the specific needs of any industrial process. These gear units are engineered and manufactured in accordance with international standards such as ISO and DIN, using high-quality materials like hardened alloy steel. Key features include flexible installation options vertical, horizontal, or flange-mounted, integrated cooling systems, and a wide selection of accessories such as brakes, couplings, and condition monitoring sensors.

IMAK IRV 30 Worm Gearbox

The IMAK IRV 30 worm gearbox, made in Italy, belongs to the IRV series of aluminum gearboxes with a unicase design. This gearbox features a 30:1 gear ratio, a maximum output torque of 45 Nm, and an output shaft diameter of 18 mm. Suitable for NEMA 34 stepper motors, it is designed with dimensions of 86×86 mm and optimized for installation with a 14 mm input shaft up to 35 mm in length. Its seamless construction reduces maintenance needs and prevents lubricant leakage. The gearbox is recommended for input speeds up to 1500 RPM and, due to its high gear ratio, is not ideal for precise positioning applications.

The IRV 30 IMAK gearbox, with its lightweight and robust aluminum design, is suitable for applications with high radial loads. It complies with international ISO standards and is widely used in industries such as automotive, packaging, and food processing. Its aluminum construction not only reduces weight but also improves heat dissipation and extends the device’s service life. With its compact design and easy installation, this gearbox is an excellent choice for confined spaces and industrial applications requiring stable performance.

PC063 Direct Shaft Helical Gearbox

The PC063 direct shaft gearbox is a helical type with a pre-stage design, capable of transmitting torque from 2.6 to 1195 Nm and an input speed of 1400 RPM. Its housing is made of corrosion-resistant aluminum alloy, and the total system weight is approximately 13 kg. The shafts are manufactured with ISO Class 6 precision and a surface hardness of 50-60 HRC, providing simultaneous radial and axial load capacity. The helix angle of the gears ranges from 15 to 35 degrees, achieving a power transmission efficiency of up to 96%. Internal lubrication with ISO VG 220 industrial oil extends the service life of components beyond 50,000 operating hours.

The PC063 gearbox allows direct motor mounting with a B5 standard flange and coaxial connection to NMRV worm gear units. The output flange is designed as size 71B14a, enabling continuous high torque transmission. Bearings are of tapered and cylindrical roller types, and the shaft surface is dynamically balanced to ±0.02 mm. This design complies with ISO and AGMA standards and supports the installation of speed control and braking systems, while ensuring power transmission with minimal noise and friction.

Bonfiglioli VF 30 Worm Gearbox

The Bonfiglioli VF 30 worm gearbox is a right-angle power transmission unit suitable for light to medium industrial applications. This gearbox offers gear ratios ranging from 7 to 100, output torque between 13 and 90 Nm, and a transferable mechanical power of 0.04 to 75 kW. In various models, the input speed is typically 1800 rpm, while the output speed varies between 60 and 257 rpm depending on the gear ratio. The output torque in these models ranges from 131.5 to 164.4 lb-in. These gearboxes operate with a mechanical efficiency of 66.7% to 84.9% and are designed compactly, weighing approximately 2.4 kg.

The VF 30 gearbox is designed for horizontal or vertical installation and supports IEC-standard electric motors. It is available with different types of output shafts, including keyed hollow shafts, single- or double-ended solid shafts, and splined shafts. In ATEX models, these gearboxes are designed for explosive environments and hold the relevant certifications. Additionally, the VF 30 comes with durable surface coatings, fluoropolymer seals, and optional torque arms to enhance performance and longevity under various environmental conditions.

SITI MU 30 worm gearbox

The SITI MU 30 worm gearbox features a metric design and a square-shaped housing, belonging to the MU series. Its high flexibility and compact dimensions make it ideal for industrial and commercial applications. This gearbox is available in reduction ratios ranging from 7.5:1 to 100:1 and can transmit torque up to 26,550 lb-in approximately 3,000 Nm. Its input power ranges from 0.5 to 15 horsepower and is compatible with standard B5 and B14 motors. The output is offered as a hollow shaft with standard splines or as double plug shafts. These gearboxes come pre-lubricated and are available in sizes MU30, MU40, MU50, MU63, MU75, MU90, and MU110.

In the MU series, gearboxes feature a modular design and can be installed in various positions, making them suitable for packaging, pumping, conveyors, textile machinery, mixers, unit transport, and food and beverage industries. Their compact design and lightweight construction occupy less space compared to similar American cast-iron designs, reducing costs. Additionally, the modular MU series provides high installation flexibility and is interchangeable with European brands such as the W and NMRV series.

Chinese TS RC01 direct shaft gearbox

The TS RC01 direct shaft helical gearbox is an advanced engineering product designed for industrial and agricultural applications. This gearbox features a robust aluminum housing and offers input options including shaft, hollow shaft, B14 half flange, and B5 flange. The input shaft diameter is available in four sizes: 11, 14, 19, and 24 millimeters, while the output shaft diameter is 20 millimeters. It can be mounted on standard motor frames 63, 71, 80, and 90. The gear ratio ranges from 3.82 to 45.89, and with a 1400 RPM motor, the output speed varies between 30.5 and 366 RPM. The input power with a 1400 RPM motor ranges from 0.34 kW to 2.4 kW, and the output torque varies between 60 and 120 Nm.

The TS RC01 gearbox, with its versatile gear ratios, allows adaptation to various requirements. It is widely used in industries such as agriculture, hospitality, garment production, construction materials, and machinery repair. Its output torque ranges from 3.5 to 500 Nm, demonstrating its high capability for heavy-duty tasks. These features make it an ideal choice for industrial and agricultural applications requiring high-torque power transmission.

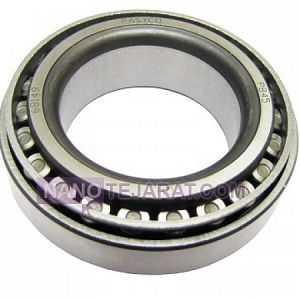

Tiba Gearbox Bearing

The Transmission Bearing Suitable for the Tiba – Smooth Operation and Long-Lasting Performance

The transmission bearing suitable for the Tiba plays a crucial role in reducing friction between the rotating components of the gearbox. This small yet essential part ensures smooth shaft movement, contributing to the flawless operation of the vehicle’s powertrain. The quality of the bearing directly affects gearbox noise reduction, smoother gear shifting, and the overall lifespan of the car.

Technical Specifications and Benefits of the Complete Tiba Gearbox Bearing Set:
Includes input shaft bearings, output shaft bearings, and other key gearbox components

Compatible with all Tiba models Tiba 1, Tiba 2, manual and hatchback versions

Made of high-grade alloy steel, resistant to wear and high temperatures

Provides quiet, smooth, and vibration-free performance

Recommended for installation by experienced mechanics or professional repair shops

Long service life when used with standard gearbox oil

📞 Contact Number for Orders and Expert Consultation:
+98 912 648 2568
📧 Email: rollpars.bearing@gmail.com

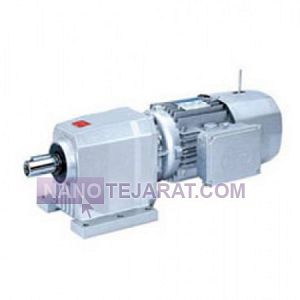

Bonfiglioli direct shaft gearbox

The Bonfiglioli shaft-mounted gearbox series delivers robust power transmission solutions for heavy-duty industrial applications. Engineered with hardened helical or bevel-helical gearing, these units achieve torque ranges from 100 Nm to 18,000 Nm with efficiency levels exceeding 94%. The compact shaft-to-shaft design eliminates alignment issues while offering multiple mounting positions for flexible installation. Featuring cast iron housings with precision-machined surfaces, these gearboxes withstand extreme operational stresses and environmental conditions. Their advanced sealing system IP65/IP66 options ensures reliable performance in dusty or wet environments, while the maintenance-friendly design allows easy access to lubrication points.

Bonfigliolis direct shaft-mounted configuration reduces mechanical losses and space requirements compared to traditional gearmotor setups. The optimized gear geometry minimizes vibration and noise levels below 70 dBA at rated speed. Standard models include torque arms with adjustable positioning and corrosion-resistant surface treatments. With optional anti-backlash versions achieving

Ilmaz DV Series Disk-Type Overhung Hollow Shaft Gearbox

The Ilmaz DV Series Disk-Type Overhung Hollow Shaft Gearbox features a gear ratio ranging from 5:1 to 100:1 and an output torque of 50 to 1200 Nm. The input shaft diameter varies from 20 to 80 mm, while the output shaft diameter ranges from 25 to 100 mm. This gearbox is equipped with wear-resistant bearings capable of operating at temperatures up to 90°C and is lubricated with ISO VG 220 industrial oil. The housing is made of durable aluminum and steel alloy, and the weight of different models ranges from 15 to 180 kg. Manufacturing precision is below 0.05 mm, and output vibration is less than 0.02 mm at 1500 RPM.

The gearbox can operate in ambient temperatures from -20°C to +70°C with relative humidity up to 90%. Its disk-type design increases power transmission efficiency up to 98% and reduces noise by up to 5 dB compared to standard models. The total length of the gearbox varies between 200 and 800 mm depending on gear ratio and output power. It can be installed in horizontal and vertical orientations with angles up to 45 degrees. ISO 9001 certification and factory quality control tests ensure reliable performance.

Sahand VF/FC 185 Flanged Worm Gearbox

The Sahand VF/FC 185 worm gearbox, with a robust design and standard dimensions, is ideal for industrial applications requiring high torque in limited spaces. This gearbox can handle an output torque of up to 3600 Nm and an input power of up to 15 kW. Its gear ratio ranges from 7 to 10,000, allowing adaptation to various operational needs. The housing is made of cast aluminum with a corrosion-resistant coating and is designed for installation in different positions. This gearbox is particularly suitable for industries that require speed reduction and torque increase, such as chemical and food processing sectors.

The VF/FC 185 Sahand gearbox features a hollow or solid output shaft and can connect to standard IEC motors, providing high installation flexibility. It can be installed in various orientations, including vertical and horizontal, making it ideal for confined spaces. Its lubrication system uses synthetic oil, reducing maintenance needs and extending service life. With its engineered design and technical features, this gearbox is a reliable choice for industrial applications requiring stable and dependable performance.

Hydromec Q85 Worm Gearbox

The Hydromec Q85 worm gearbox, part of the square gearbox series with a right-angle design, features a one-piece cast iron housing produced through a vacuum process to enhance strength and corrosion resistance. This gearbox offers reduction ratios ranging from 7 to 96 and a maximum output torque of 347 Nm, making it suitable for heavy-duty industrial applications. The worm wheel is made of bronze alloy with centrifugal casting on an iron hub, ensuring long service life and high wear resistance. The worm and input shaft are made of alloy steel with surface hardening Rc 58-60 and ground teeth, designed to reduce noise and improve efficiency.

Equipped with standard IEC flange dimensions and a hollow output shaft, the gearbox allows easy installation. The housing is precisely machined for accurate alignment of bearings and gears. Enlarged bearings securely support the high-speed shaft, ideal for applications with frequent start-stop and reverse operations. Q85 gearboxes are available in center distances from 40 to 125 mm and can be supplied with torque arms, various flanges, or bases installable in three different positions.

Peugeot 206 gearbox bearing

Gearbox Shaft Bearing for Peugeot 206 – Specifications:
Compatible with Peugeot 206 models: Type 2, Type 5, SD, both manual and automatic

Suitable for 5-speed manual and AMT automated manual transmissions

Made from high-strength alloy steel, resistant to wear and heat

Delivers smooth, quiet operation under city and highway driving conditions

Highly resistant to pressure, temperature, and environmental contaminants

Long service life when used with proper gearbox oil

Manufactured by trusted brands such as SKF, KOYO, NTN, TBC, and OEM suppliers

Complies with international quality standards ISO / TS

Professional installation by a qualified mechanic is recommended

Factory-sealed packaging with authenticity hologram

Covered by warranty for physical integrity and authenticity

Ideal for both end-users and professional auto repair shops

📩 For the latest price of the Peugeot 206 gearbox bearing or to receive a purchase consultation, please email our support team at: rollpars.bearing@gmail.com
Experience a reliable and trusted source for automotive parts with Roll Pars.

SEW Worm Gearbox Series S

The SEW Series S worm gearbox features a compact design, high torque transmission, and optimal efficiency. This unit offers gear ratios from 5:1 to 100:1, with a rated power range of 0.25 kW to 22 kW. Its integrated housing, made from high-precision cast aluminum or cast iron, is protected with anti-corrosion coating. The output shaft, capable of handling high radial and axial loads, ensures easy installation and flexibility in mechanical layouts. Internal lubrication with mineral or synthetic oil guarantees continuous operation, reduces wear, and requires minimal maintenance.

The SEW Series S gearbox comes with standard IEC mounting options and various flanges for electric motor installation. Output shaft positioning accuracy can reach ±1 degree. Operating temperatures range from -10°C to +40°C without additional equipment. The right-angle, straight-shaft worm design reduces noise and extends component lifespan. With its low weight, compact size, and ability to withstand shock torque, this gearbox is ideal for automotive, packaging, food processing, and general industrial machinery applications.

AMG SRC01 Type Chinese Helical Inline Shaft Gearbox

The AMG SRC01 Chinese helical shaft gearbox is recognized as a cost-effective solution with high performance across various industries. These gearboxes are available in power ranges from 0.12 to 4 kW and reduction ratios between 3.74 and 51.30. Their housings are made of corrosion-resistant aluminum, providing lightweight construction and efficient heat dissipation. The gear system is manufactured from heat-treated alloy steel to minimize friction and extend service life. They come in direct shaft and flange-mounted configurations B5 and B14 with specific model codes, and standard couplings like Motovario and Bonfiglioli can also be installed.

In the SRC01 gearbox design, precise selection of gear ratios and shaft dimensions improves performance while reducing noise. These gearboxes are especially suited for packaging machinery, conveyors, and pumps. Operating speeds range from 1400 to 2800 RPM at the input, yielding output speeds from 14 to 280 RPM. Output torque spans 42 to 543 Nm. Easy installation, maintenance, and competitive pricing make these gearboxes a preferred choice for industrial projects.

Oztekfen Helical Gearbox

The Oztekfen helical gearbox is designed using advanced technologies and high-quality materials to deliver stable and reliable performance across various industries. Its helical gears enable power transmission with minimal vibration and noise, significantly improving transmission efficiency. The robust housing is made from corrosion- and heat-resistant alloys, ensuring long service life and durability under harsh working conditions. Additionally, the variety of gear ratios allows users to select the gearbox precisely according to the specific requirements of their industrial systems.

Structurally, the Oztekfen helical gearbox is engineered for easy and quick installation and maintenance, which helps reduce operational costs. Its advanced lubrication system and efficient ventilation guarantee flawless operation and high durability of internal components. Compliant with international standards and incorporating modern technologies, this gearbox is an ideal choice for heavy-duty applications, conveyors, industrial machinery, and power transmission systems that require continuous and reliable performance.

Motovario Hollow Shaft Bevel Gearbox

The Motovario hollow shaft bevel gearbox is constructed from durable cast iron or aluminum and can transmit torque up to 13,000 Newton-meters. Its speed reduction ratios range from 5.71:1 to 187.24:1 across three stages, covering a wide range of industrial applications. The hollow output shaft allows direct mounting onto the motor shaft, reducing the need for couplings. It supports motor input power up to 90 kW, ensuring optimal performance under heavy loads. The helical and bevel gear design minimizes noise and maximizes efficiency in industrial systems.

This gearbox is designed for a maximum input speed of 3000 RPM and offers IP55 protection, making it suitable for standard industrial environments. Models with ATEX certification can be used safely in explosive atmospheres. The dimensions of the hollow shaft and flange diameter comply with international standards, allowing fast installation. Operating temperature ranges from -20 to 50°C, and continuous lubrication increases service life while reducing maintenance. This gearbox is an ideal choice for conveyor systems, pumps, and industrial mixers.

Peugeot 405 gearbox bearing

Peugeot 405 Gearbox Bearing is one of the most essential components in the vehicle’s power transmission system. It plays a critical role in reducing friction and ensuring the smooth rotation of shafts and internal gears. This part is especially important in positions like the input shaft bearing or output shaft bearing of the Peugeot 405 gearbox, contributing to the quiet, smooth, and safe operation of the gearbox.

Technical Specifications of Peugeot 405 Gearbox Bearings:
High resistance to wear and elevated temperatures

Compatible with Peugeot 405, Peugeot Pars, and similar models

Smooth operation and significant reduction in gearbox noise

Long service life when used with quality transmission oil

Suitable for installation by professional mechanics familiar with 5-speed manual transmissions

The price of the Peugeot 405 gearbox shaft bearing varies depending on the brand NTN, KOYO, SKF, TBC, and OEM brands, country of origin, and packaging type. To get the latest price or receive a quote, feel free to contact our experts at Roll Pars Takmil Sanat or send us an email at.

Chinese NMRV Worm Gearbox Size 110

The NMRV 110 worm gearbox, with a gear ratio from 10:1 to 60:1, is made of high-strength die-cast aluminum alloy. The output shaft has a diameter of 55 mm, supporting radial loads up to 1200 N and axial loads up to 600 N. Continuous lubrication with industrial grease reduces worm wheel wear and extends service life up to 20,000 operating hours. Flange installation accuracy and shaft alignment are within 0.05 mm, and operational noise is measured below 55 dB. The standard operating temperature ranges from -10 to +90 degrees Celsius.

Applications of the NMRV 110 gearbox include power transmission in industrial production lines, conveyors, and packaging machinery. The output torque can reach 150 Nm, with system efficiency varying between 65% and 75% depending on the gear ratio. The corrosion-resistant anodized body provides high durability in humid and dusty industrial environments. Compact dimensions of 220 × 180 × 160 mm allow easy installation in limited spaces, with a total weight of approximately 17 kg. ISO 9001 certification ensures manufacturing quality and dimensional precision.

Oztekfen MRA straight-shaft gearbox

The Oztekfen MRA helical gearbox with a straight shaft and single key connection can transmit torque ranging from 50 to 1200 Nm. Its gear ratio is adjustable from 5:1 to 100:1, allowing continuous operation at a maximum input speed of 1500 RPM. The gearbox housing is made of durable aluminum or cast iron, and the precision-machined gears reduce noise while increasing efficiency up to 95%. The output shaft can withstand high radial and axial loads, making it suitable for direct installation on industrial equipment and automated production lines.

The Oztekfen MRA gearbox features an optimized internal lubrication system using industrial synthetic oil, which extends the lifespan of bearings and gears. Its helical gear design minimizes impact and vibration under heavy dynamic loads. Compact dimensions and low weight enable installation in confined spaces. Equipped with a standard single-key shaft, it can be easily connected to electric motors with IEC flanges and other industrial accessories. These features make the MRA ideal for automotive, packaging, and material handling industries.

Pars Gorji Series F Size 107 Hollow Shaft Overhead Gearbox

The Pars Gorji Series F Size 107 Hollow Shaft Overhead Gearbox features a gear ratio range from 5:1 to 60:1 and an output power between 0.37 and 15 kW. The hollow output shaft has an internal diameter of 40 to 80 mm and an installation length of 120 mm, allowing easy mounting on standard industrial shafts. The input speed reaches up to 1500 RPM, with a maximum output torque of 800 Nm. Helical gears with a 20-degree angle reduce friction and increase efficiency up to 95 percent. The gearbox housing is made of durable aluminum and steel alloys, enhancing both radial and axial load capacity.

This gearbox can be installed in six different overhead orientations, with an operating temperature range of 0 to 50°C. Lubrication uses 1.5 liters of synthetic oil, extending gear lifespan. The mechanical shock safety factor is designed up to 1.5 times the nominal torque. The distance between input and output shafts is 180 mm, and the housing diameter is 107 mm, which helps reduce vibrations. This gearbox is ideal for packaging machinery, conveyor lines, and food and pharmaceutical industries.

SHARIF direct shaft gearbox with flange

The SHARIF direct shaft gearbox with a flange design is suitable for transmitting torque from 50 to 1200 Newton-meters at input speeds of 1400 to 3000 RPM. Its housing is made of high-precision machined aluminum or steel alloy and can withstand temperatures up to 90°C. The gears are made of chrome steel, hardened, and manufactured to ISO Class 6 accuracy to minimize vibration and noise. The input shaft diameter ranges from 20 to 80 mm, and the output shaft diameter ranges from 25 to 90 mm, while the synthetic oil lubrication system extends the lifespan of internal components.

This flange-mounted gearbox achieves a mechanical efficiency of 95% and operates at noise levels below 65 dB under full load. The output shaft can handle radial loads up to 4500 N and axial loads up to 2000 N. Flange dimensions comply with IEC standards, ranging from 90 to 250 mm, allowing easy installation on standard industrial motors and production machinery. The bearing system uses double-row bearings with automatic lubrication, reducing vibration and ensuring a service life of up to 20,000 hours.

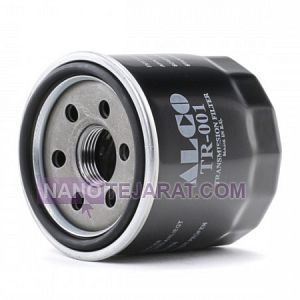

Gearbox hydraulic filter

The hydraulic oil filter for gearboxes is designed with a precise filtration capacity ranging from 5 to 15 microns to effectively remove suspended particles and impurities from the gearbox oil. These filters typically withstand operating pressures up to 30 bar and function within a temperature range of -20 to 120 degrees Celsius. The filtration elements are made of cellulose and synthetic fibers with a filtration surface area up to 0.8 square meters. The durable metal housing provides full protection against corrosion and mechanical stresses, enhancing the service life of the power transmission system.

Regarding standards, the hydraulic oil filter for gearboxes generally complies with ISO 16889, ensuring filtration efficiency and mechanical durability under harsh conditions. The service life of these filters ranges between 700 and 1400 hours. Optimized engineering design and high-quality materials reduce internal gearbox wear and improve system efficiency. These filters play a critical role in maintaining gearbox health and lowering maintenance and repair costs.

AMG helical gearbox

The AMG helical gearbox is designed using advanced technologies and high-quality raw materials to deliver optimal and reliable power transmission performance. Its helical gears ensure power transfer with minimal vibration and noise, guaranteeing high efficiency. The durable housing and robust structure of the AMG gearbox are made from special alloys with high resistance to wear and corrosion, which increases the device’s lifespan and stability even under harsh working conditions. Additionally, this gearbox is available in various gear ratios to best meet diverse industrial requirements.

Structurally, the AMG helical gearbox features a practical design that allows easy installation and maintenance, reducing operational costs and enhancing productivity. Its advanced lubrication system and efficient ventilation ensure flawless operation and long-lasting internal components. Compliance with international manufacturing standards makes this gearbox an ideal choice for heavy industrial applications, production lines, and continuous power transmission systems.

SEW R47 Series Direct Shaft Gearbox

The SEW R47 series direct shaft gearbox features a helical design with a direct shaft, enabling high torque transmission with minimal slippage and energy consumption. Gear ratios in this series range from 3.18 to 290, and the maximum output torque reaches 20,000 Nm. The output shaft diameter varies between 20 and 120 mm, and the allowable input speed is designed up to 3,000 RPM. The helical teeth reduce operational noise and increase efficiency to over 95%, while allowing continuous operation in industrial environments with temperatures from 0 to 40°C.

R47 models are available with motor powers from 0.12 to 90 kW and can be mounted either flange or foot-mounted. The housing is made of durable cast steel or aluminum alloy. These gearboxes have an IP55 protection rating and an F thermal class, and maintenance is simplified through standard lubricant replacement. The use of wear-resistant bearings and industrial-grade oils extends service life up to 50,000 operating hours, making them suitable for conveyors, pumps, fans, and automotive industry applications.

AMG Inline Shaft Gearbox Model AMG SRCF-PIEC

The SRCF-PIEC inline gearbox is part of the helical gearbox series with flange mounting, designed for industrial applications requiring high torque. These gearboxes are offered with input power ranging from 0.12 to 4 kW and output torque between 3 and 601 Nm. Their gear ratios range from 3.74 to 51.30, allowing precise adaptation to various requirements. The die-cast aluminum construction not only reduces weight but also ensures high durability. These gearboxes comply with IEC and ISO9001 standards and are designed for mounting with various motors, including B5 and B14 types.

In the SRCF-PIEC gearbox design, helical gears with an optimal contact angle enable smooth and quiet torque transmission. This feature enhances service life and reduces maintenance needs. The gearbox can be installed vertically or horizontally, compatible with different shafts or flanges. Additionally, it allows the installation of extra bearings to handle high axial and radial loads. These gearboxes are suitable for applications such as conveyors, pumps, and packaging machinery.

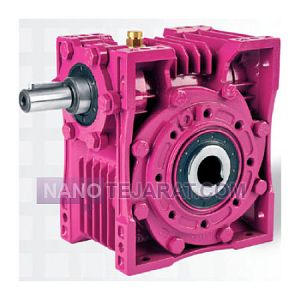

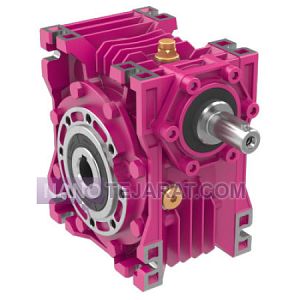

Yilmaz ET Series Worm Gearbox

The Yilmaz ET series worm gearbox features a right-angle design with perpendicular input and output shafts, making it suitable for various industrial applications such as conveyors, mixers, and automation systems. These gearboxes are equipped with IEC input shafts ranging from size 63 to 112 and offer gear ratios from 7.5:1 to 100:1. The aluminum housing with anti-corrosion coating, compact structure, and optimally designed cooling fins ensures efficient thermal performance. With nominal torque from 5 Nm up to 1000 Nm and output speeds up to 260 RPM, these gearboxes are ideal for compact systems requiring high torque and reduced speed.

The ET series gearboxes use bronze gears and steel screws, providing high durability and wear resistance. They can be mounted in base, flange, or torque arm configurations and are designed for demanding operating conditions. Options for a free output shaft, reinforced bearings, brakes, and other accessories are available. These gearboxes are especially suitable for applications that require quiet and smooth operation.

ZF 180 gearbox graphite plate

The ZF 180 gearbox graphite plate is manufactured from compressed graphite and high-strength resin, capable of withstanding temperatures up to 350°C. Its thickness ranges from 4.5 to 6 millimeters, with a diameter of approximately 280 to 320 millimeters, ensuring full compatibility with the ZF 180 transmission system. The friction coefficient ranges from 0.28 to 0.35, enabling precise power transfer with minimal slippage. The plate surface is heat-treated and CNC-finished to enhance wear resistance and ensure reliable operation under continuous load cycles.

This graphite plate features a multilayer structure with ventilation grooves measuring 2.5 millimeters in width, enabling 25 percent faster heat dissipation compared to standard models. The approximate weight of the component ranges from 1.8 to 2.4 kilograms, with a production tolerance below 0.02 millimeters. Its precise design and durable materials increase gearbox lifespan and improve power transmission efficiency in heavy-duty construction and industrial machinery.

IMAK Turkey Direct Shaft Gearbox

The IMAK IR series direct shaft gearbox features a helical design with a monolithic housing, ideal for industrial applications requiring high torque in limited spaces. These gearboxes are available in single-stage and two-stage configurations and can handle torques up to 18,000 Nm. Input shaft diameters range from 20 mm IR42-43 models to 120 mm IR152-154 models. The input speed varies from 2.4 RPM to 852 RPM. They are compatible with motors rated from 0.12 kW to 160 kW and are designed for versatile installation positions.

The IR gearbox housing is made from GG20 cast iron or aluminum with corrosion-resistant coating. Helical gears are manufactured from 16MnCr5 alloy steel, hardened to 57 HRC, and precisely ground for optimal performance and long service life. Multi-layer sealing and high-quality industrial bearings prevent oil leakage and allow easy maintenance. These gearboxes can withstand radial and axial loads, making them suitable for production lines, conveyor systems, and material processing machinery.

Nord UNICASE Series Helical Inline Gearbox

The UNICASE series helical inline gearboxes from Nord feature a robust, integrated design, making them suitable for industrial applications requiring high torque and limited installation space. These gearboxes are available in various types, including Worm, Inline, and Bevel. Their power range varies from 0.16 to 268 horsepower, while output torque across different models ranges from 823 to 442,537 lb-in approximately 93 to 50,000 Nm. Constructed with helical gears made of alloy steel with hardened teeth, these gearboxes ensure smooth operation, low noise, and long service life.

The UNICASE design uses a single, robust housing that incorporates all bearing seats in one cast piece. This structure enhances strength and reduces vibrations. UNICASE gearboxes can be mounted on a base, flange, or with a shaft, making them suitable for diverse industrial environments. Lubrication is provided using factory-filled ISO VG220 mineral oil, which improves efficiency and minimizes maintenance requirements.

Transtecno CM 040 Worm Gearbox

The Transtecno CM 040 worm gearbox is a compact model with precise industrial design, developed for power transmission in limited spaces. This gearbox delivers an output torque of up to 90 Nm and offers a wide range of gear ratios from 1:7 to 1:100. Its die-cast aluminum housing ensures low weight and high resistance to corrosion. The input shaft diameter is 9 mm and the standard output shaft diameter is 18 mm. The efficiency in single-stage operation ranges between 70 and 75 percent.

The Transtecno CM 040 worm gearbox is designed for continuous operation under different temperature conditions from 0 to 40 degrees Celsius. Specialized industrial-grade lubricant enhances the service life of the gears. The nominal input speed is supported up to 1400 rpm, and the output shaft can withstand a radial load of up to 1200 N. This model is manufactured in compliance with CE and ISO standards, making it suitable for packaging machinery, conveyor systems, and industrial automation applications.

The Bonfiglioli C-Series Inline Shaft Gearbox

The Bonfiglioli C-Series inline shaft gearbox features a compact design and can transmit torque ranging from 45 to 12,000 Nm, making it ideal for industrial applications in confined spaces. It is available in 2- to 4-stage versions, with a gear ratio adjustable between 2.6 and 1481. The mechanical power transmission ranges from 0.09 to 213 kW, and its efficiency is optimized to reduce energy consumption while enhancing motion accuracy. The housing is made of a durable alloy capable of withstanding high dynamic and thermal loads, and direct shaft mounting is supported.

The C-Series is compatible with various IEC asynchronous motors and servo motors, and offers dual sealing and C5 protection class. ATEX versions are available for explosive environments, with mounting options on B14 flanges or directly on a base. Standard backlash reduction and helical inline shaft design ensure smooth, quiet operation over the long term and extend the service life of internal components.

Bonfiglioli Italy VF 49 Helical Hollow Shaft Worm Gearbox

The Bonfiglioli VF 49 hollow shaft gearbox is a high-quality product made in Italy, designed for power transmission in industrial machinery and increasing efficiency in production lines and conveyors. This gearbox features a durable hollow shaft design and is made from high-quality industrial materials, providing stable performance and long service life.

The Bonfiglioli hollow shaft industrial gearbox is one of the best options for the food, packaging, and heavy industrial machinery sectors. Thanks to its high efficiency in power transmission and reduced motor wear, it is a smart choice for industrial managers.

By choosing the Bonfiglioli VF 49 industrial gearbox, you can benefit from easy installation, smooth operation, and low noise levels. This product is suitable for industrial production lines, heavy-duty conveyors, packaging industries, and automated machinery, and its Italian standard design ensures long service life and high energy efficiency.

The Sahand NMRV W40 Worm Gearbox

The Sahand NMRV W40 worm gear reducer, with an aluminum housing and brass gears, belongs to the W series of gearboxes. These gearboxes feature a wide range of gear ratios from 7 to 100 and output power between 0.12 and 15 kW, making them suitable for various industrial applications. The maximum allowable input speed is 1400 RPM, and the output torque reaches up to 45 Nm. They comply with international ISO and IEC standards and are compatible with NEMA 34 motors.

The NMRV W40 gearbox is designed with a seamless structure that requires minimal maintenance and prevents lubricant leakage. These features enhance the gearbox’s durability and efficiency under diverse operating conditions. Due to its worm gear configuration, it exhibits higher backlash and is not ideal for precise positioning applications. Overall, the Sahand NMRV W40, with its technical and structural characteristics, is a reliable choice for power transmission in various industries.

Yilmaz EN Series Worm Gearbox

The Yilmaz EN series worm gearbox features a right-angle design and a robust body made of alloy steel or cast iron, suitable for transmitting torques from 80 to 4500 Nm. The gear ratio of this series ranges from 5 to 100 and can withstand shock loads and ambient temperatures up to 90°C. The gearbox input complies with IEC standards, allowing direct mounting on induction motors with power up to 90 kW. Precision-machined gears reduce noise levels below 65 dB and extend service life up to 20,000 operating hours.

The worm gears are made of hardened steel with a chrome-nickel coating, and continuous lubrication is ensured using ISO VG 220 synthetic oil. The output shaft is designed for high radial and axial loads, and roller and ball bearings provide stable performance at speeds from 1400 to 3000 rpm. Standard flange mounting and compatibility with other gearboxes make this series ideal for packaging, conveyor, and heavy machinery applications.

PARS Gorji Series R Direct Shaft Gearbox Size 167

The PARS Gorji Series R Helical Gearbox with Direct Shaft, Size 167, is a high-quality and widely used product in both light and heavy industries, designed for efficient power transmission. With its helical design and direct shaft, this gearbox enables smooth and quiet power transfer, making it an ideal choice for environments that require stable performance and long service life.

If you are looking for a high-quality, high-efficiency, and durable helical gearbox with a direct shaft, the PARS Gorji Series R Helical Gearbox, Size 167, is a reliable option for various industries. With its modern design, easy installation, and low-maintenance requirements, this gearbox enhances the productivity of power transmission systems.

By choosing this gearbox, you not only reduce maintenance costs but also optimize the performance of your industrial systems and prevent unexpected breakdowns.

Gearbox Butterfly Valve

Technical Specifications of Gearbox Butterfly Valve Butterfly Valve with Gearbox

Available sizes: from DN50 to DN2000 depending on the manufacturer

Body material: Cast iron, carbon steel, stainless steel

Disc material: Stainless steel, cast iron, special alloys

Working pressure: Up to 16 bar PN16 and higher pressure models available

Operating temperature: -20°C to 200°C depending on material

Actuator type: Manual gearbox, motorized gearbox

Standards: ISO 5208, API 609, DIN EN 593

Sealing type: Rubber, metal, or composite

Weight: Lighter compared to ball valves and gate valves of similar size

Opening and closing time: Fast and controllable thanks to the gearbox

Service life: Long-lasting due to high-quality materials and proper maintenance

For pricing and detailed technical information about gearbox butterfly valves, please contact our experts!

Motovario Vertical Gearbox from Italy

Motovario Vertical Gearbox from Italy – A Smart Choice for Precise and Reliable Power Transmission

In modern industries where precision, durability, and efficiency play a critical role, choosing high quality mechanical equipment is essential. The Motovario vertical gearbox, manufactured in Italy, stands out as a premium solution in the field of power transmission. With its engineered design, stable performance, and long service life, it has earned the trust of many industrial professionals.

If you are looking for a vertical gearbox that offers high quality, reliable operation, and extended durability, the Motovario gearbox from Italy is a smart investment. Combining Italian engineering, precise design, and advanced technical features, this product is built to meet your industrial needs with excellence.

Peugeot 405 Gearbox Bearing – JBR

Sale and Price of Peugeot 405 Gearbox Bearing – JBR Chinese Brand at Ansari Specialized Bearing Store

If you
e looking to buy a gearbox bearing for your Peugeot 405 that offers both reliable quality and a reasonable price, the JBR Chinese gearbox bearing is one of the most popular options in the auto parts market. With its precise design and durable materials, this component plays a key role in reducing friction and ensuring smooth power transmission within the gearbox system.

To inquire about prices and purchase various types of Peugeot 405 gearbox bearings from trusted brands like JBR China, get in touch with the experts at Ansari Bearing Store. Our consultants are ready to guide you in choosing the best replacement part and provide you with a secure and satisfying online shopping experience.

Flender Vertical Gearbox from Germany

Buy Flender Vertical Gearbox from Germany – Best Price & Guaranteed Quality

In the world of industrial equipment, choosing the right gearbox can make a significant difference in system performance, durability, and efficiency. The Flender vertical gearbox from Germany stands out as a premium solution in the field of power transmission. With its high-quality construction, precision engineering, and reliable performance, it has earned a strong reputation across various industries.

If you
e looking for an industrial gearbox that offers superior quality, dependable operation, and advanced design, the Flender vertical gearbox is a smart choice. Backed by robust technical features and global support, this product is engineered to meet the demands of diverse industrial applications with excellence.

Yilmaz Vertical Gearbox from Turkey

Purchase and Price of Yilmaz Vertical Gearbox from Turkey

In the world of industrial equipment, choosing the right gearbox can make a significant difference in system performance and overall efficiency. The Yilmaz vertical gearbox from Turkey stands out as a top-tier product in the field of power transmission, thanks to its precision engineering and high-quality construction. It has earned the trust of many industries across the globe.

If you
e looking to buy a vertical gearbox that offers high durability, long service life, and reliable performance, Yilmazs range of models from Turkey can meet your industrial needs in the best possible way. By choosing this product, you
e not only benefiting from cutting-edge technology, but also making a smart investment in your mechanical systems.
