Turnbuckle Iran

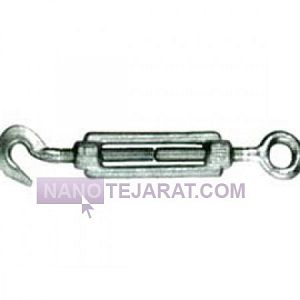

Turnbuckle

The technical and structural specifications of the "Turnbuckle" a double-ended turnbuckle are presented in an engineering, numerical, and precise manner. These connectors are designed for precise tension control in cables and bracing systems. They consist of two long threaded rods with opposite thread directions left-hand and right-hand housed within a threaded cylindrical body. Rotation of the central body causes the two eye bolts to simultaneously draw inward or extend outward. This mechanism allows for continuous, precise length adjustment and the application of tension from both ends. Common materials include alloy steel, galvanized steel, and stainless steel to resist corrosion and high tensile loads. Their design enables the application of controlled pre-tensioning force in rigging systems.

Common turnbuckle types are classified by their end fittings, including "eye-eye," "eye-hook," and "hook-hook" varieties. The appropriate type selection depends on the required connection at each end of the assembly. They are manufactured in various sizes and load capacities to match the diameter and strength of corresponding steel wire ropes. For safe operation, calculating the final tension force and ensuring the turnbuckles load rating exceeds that of the attached cable is crucial.

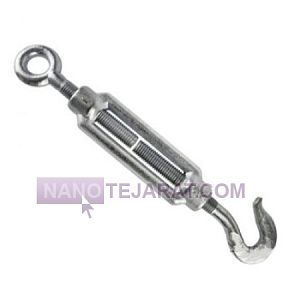

Stainless steel turnbuckle

The stainless steel turnbuckle is an industrial and construction tool used for adjusting tension in wires, cables, and ropes in rigging, railing, and suspended structures. It is manufactured from stainless steel grade 304 or 316 with tensile strength ranging from 500 to 800 MPa. Load capacity varies from 0.5 to 5 tons depending on size. The design includes a D-shaped or U-shaped body with a threaded adjustment screw and anti-slip nut, providing precise and secure cable tensioning. Polished or matte industrial finishes offer high resistance to corrosion, moisture, and harsh environmental conditions.

Structurally, the stainless steel turnbuckle features a forged body with controlled heat treatment for enhanced strength and durability. Screws and nuts are precision machined to ensure smooth operation without play. It can operate reliably in temperatures from −40°C to +300°C. The turnbuckle is compatible with wire ropes, steel cables, ropes, and railing or lifting equipment. It is widely used in marine, construction, oil and gas, and bridge applications. Engineered design ensures long-term stability, safety, and extended service life.

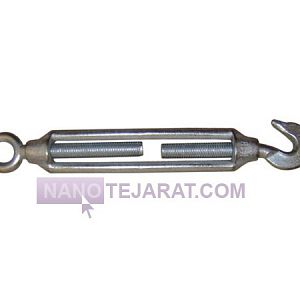

Turnbuckle

A tensioner is a tool used to control and adjust the tension and stress in various structures. This device is commonly used in construction projects, the oil and gas industry, and metal structures to prevent movement or deformation of objects. Tensioners are typically made from high-strength steel and are capable of withstanding very heavy loads. They come in various types, including manual, hydraulic, and mechanical models. Some models use twisting systems or clamps to adjust pressure and tension. Tensioners can usually handle loads ranging from 1 ton to 50 tons or more.

Tensioners have a specific design, typically consisting of a central shaft, adjustable clamps or screws, and a locking system to secure the load. These tools are used in various environments, including industrial settings, workshops, and construction projects. Tensioners are often used to control the tension of cables, wires, or hoses in piping systems, wiring systems, and the installation of heavy equipment. Additionally, tensioners are typically designed with corrosion-resistant coatings to increase service life and protect against environmental damage.

stainless steel turnbuckle

This stainless steel handrail is made from 304 alloy with 18% chromium and 8% nickel. The alloy provides an ultimate tensile strength of 520 MPa and a yield strength of 215 MPa. The profile is typically a circular tube with an outer diameter of 42.4 mm and a wall thickness of 2 mm. Its surface features a mirror polish Ra ≤ 0.2μm or brushed finish Ra ≤ 0.5μm. Handrails come in standard lengths of 3000 mm with a length tolerance of ±1.5 mm. Weight per linear meter is approximately 2.1 kg. These specifications comply with the European standard EN 10088-3.

Fittings include 304 steel support brackets with a thickness of 5 mm. These brackets are installed with a maximum center-to-center spacing of 1500 mm. Each bracket can withstand a lateral impact load of 0.75 kN at 1100 mm height from the base. Ground fixing uses M10 Class 8.8 mechanical anchors or TIG welding. Its design prevents water and debris accumulation. The product is suitable for high-humidity environments and temperatures from -50°C to +200°C. Its installation requires minimal maintenance.

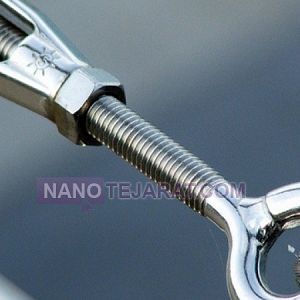

Wire Rope Turnbuckle

The wire rope turnbuckle is a mechanical tensioning device used to apply controlled tension to wire ropes cables and chains. It is manufactured from carbon steel or alloy steel with tensile strength ranging from 400 to 900 MPa. Turnbuckle size is selected according to wire rope diameter, typically from 6 to 36 millimeters. Common types include hook hook eye eye and hook eye configurations. Precision right hand and left hand threads allow fine length and tension adjustment.

Structurally the wire rope turnbuckle consists of a threaded central body and two forged end fittings. Heat treatment improves fatigue resistance and durability under continuous loading. The surface is protected with hot dip galvanizing or industrial coating to enhance corrosion resistance. It is capable of handling both static and dynamic loads. This component is widely used in steel structures power lines marine industries mast installation and industrial bracing systems ensuring secure and stable connections.

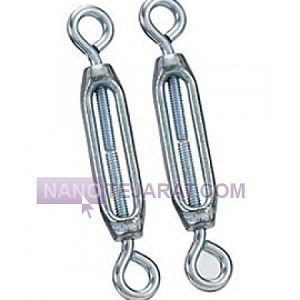

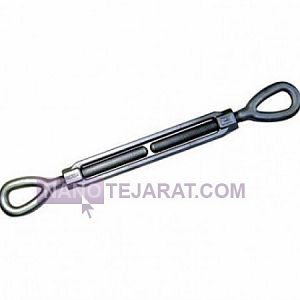

forged eye eye Turnbuckle

The Forged Eye sling is a heavy-duty industrial tool for load securing, tensioning, and attachment in cranes, hoists, and heavy industries. Sling lengths typically range from 1 to 12 meters, with load capacities varying from 1 to 15 tons depending on size and material. The body and eye are made from forged alloy steel with heat treatment, providing high resistance to tension, impact, and wear. The surface is coated with galvanized layer or epoxy paint for long-term protection against corrosion, moisture, and harsh environmental conditions.

Structurally, the Forged Eye sling features a single eye at one end for safe attachment to loads or chains. The design ensures uniform force distribution, reduces concentrated stress, and prevents slippage or equipment damage. The Forged Eye sling is optimized for cranes, industrial hoists, production lines, and heavy industries, manufactured according to EN 13414-1 and ISO 7593 standards to ensure safety, durability, and long-term performance.

Turnbuckles

The load binder lashing is an industrial safety tool used to secure and stabilize heavy loads and objects in transportation systems, hoists, and cranes. The binder’s load capacity ranges from 1 to 50 tons, with lengths ranging from 300 to 1500 mm. It is made from wear- and impact-resistant alloy steel with heat treatment, offering a tensile strength of over 600 MPa. The surface is galvanized or epoxy-coated for corrosion, moisture, and wear resistance, ensuring long-term durability.

Structurally, the load binder consists of a steel body with two rings or hooks for easy attachment to wire ropes, chains, or hoisting systems. Its design ensures uniform force distribution, increases safety, and reduces the chance of load slippage. This tool is optimized for heavy industry, cranes, industrial hoists, production lines, and warehousing, manufactured according to DIN 15401 and ISO 7531 standards to ensure long-term safety and durability.

galvanized shackle turnbuckle

Socket double head restraints are produced in both steel grades and stainless steel grades. The inch and millimeter sizes of double-ended socket clamps are used in the connections of chain slings and towing wires and in order to increase the tension and tension of the connection strings.
The shape of the body of the two-ended socket arrester can be both flat and tubular, and in heavy industries, flat examples of the double-ended socket arrester are often used. The main body of the double-ended socket arrester is produced by hot forging method, and G80 steel grade, which has high tensile strength and surface hardness, is often used in its production.

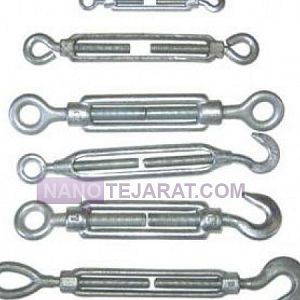

Turnbuckle

Turnbuckle is a type of rigging that is used along with wire rope slings and chain slings. turnbuckles are used in order to chain the length of connection and therefore fasten or loosen the sling connections. there are two types of turnbuckles in general including round and flat turnbuckles. different shapes of fittings are used on the open end of turnbuckle connection including eyes, sockets and hooks. Carbon steel turnbuckles have higher tensile strength compared to stainless steel turnbuckles.

hook and hook turnbuckle

Hook and hook Turnbuckle is one of the most widely used connections in lifting, which is produced in different shapes and grades. Among the types of restraint series, the fastest connection is related to the double head restraint. In fact, the two ends of the hook shape of the restraint have a play opening and are ready to be connected to all kinds of shapes, eyelets, towing rope slings, sling rings or other chain connections.

Round stainless steel turnbuckle

Round stainless steel turnbuckles are usually used in G316 of stainless steel and are available in various inch sizes. stainless steel turnbuckles are used mostly in decoration and banisters.

G316 stainless steel turnbuckle

G316 turnbuckle has equal tensile strength to G304. the main difference of two grades of stainless steel turnbuckle is in stain resistance which is higher for G316.
