Fitting Iran

press clamping fitting

A wall plate male threaded press elbow is a 90 degree combined fitting designed for directional change and fixed water outlet installation in piping systems. The body is manufactured from low lead forged brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Press connections are typically designed for 16 to 32 millimeter pipes, while the male threaded outlet ranges from 1 2 to 1 inch. Operating temperature varies from 0 to 95 degrees Celsius with peak tolerance up to 110 degrees Celsius. The wall plate enables precise fixation using standard anchor screws.

The component structure includes a 90 degree angled body, a press socket with stainless steel sleeve, and a precision machined male thread with tolerance below ±0.05 millimeter. Body wall thickness ranges from 3 to 6 millimeters to withstand internal pressure stress. Sealing of the press joint is achieved through EPDM O rings and controlled pipe deformation. Pressure drop at the 90 degree turn remains below 0.2 bar at nominal flow rate. Nickel plating thickness from 8 to 20 microns enhances corrosion resistance. Quality control includes hydrostatic testing, pull out resistance testing, and precise inspection of threads and mounting pl

press clamping fitting

A male threaded press adapter is a transition fitting used to connect press pipes to female threaded components in cold and hot water systems. The body is manufactured from low lead forged brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Press connection sizes are typically designed for 16 to 32 millimeter pipes, while the male threaded outlet ranges from 1 2 to 2 inches. Operating temperature varies from 0 to 95 degrees Celsius with peak tolerance up to 110 degrees Celsius. External threads comply with BSPT or NPT standards.

The component structure includes a press socket with stainless steel sleeve, EPDM O ring, and a precision machined threaded section with tolerance below ±0.05 millimeter. Body wall thickness ranges from 3 to 6 millimeters to withstand internal pressure stress. Sealing of the press joint is achieved through controlled pipe deformation and O ring compression. Pressure drop in the straight path remains below 0.15 bar at nominal flow rate. Nickel plating thickness from 8 to 20 microns enhances corrosion resistance. Quality control includes hydrostatic testing, pull out resistance testing, and precise thread inspection.

press clamping fitting

A 90 degree male threaded wall plate press tee is a combined fitting designed for branching and fixed installation in cold and hot water systems. The body is manufactured from low lead forged brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Press connections are typically designed for 16 to 32 millimeter pipes, while the male threaded branch ranges from 1 2 to 1 inch. Operating temperature varies from 0 to 95 degrees Celsius. The mounting plate ensures accurate fixation on walls or metal structures.

The component structure includes a 90 degree angled body, press sockets with stainless steel sleeves, and a precision machined male thread with tolerance below ±0.05 millimeter. Body wall thickness ranges from 3 to 6 millimeters to withstand internal pressure stress. Sealing of the press joint is achieved through EPDM O rings and controlled pipe deformation. Pressure drop in the main path remains below 0.2 bar at nominal flow rate. Nickel plating thickness from 8 to 20 microns improves corrosion resistance. Quality control includes hydrostatic testing, pull out resistance testing, and precise inspection of threads and angle geometry.

press clamping fitting

A compression elbow fitting is a 90 degree angled connector used to change flow direction in cold and hot water piping systems. The body is typically manufactured from forged CW617N brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Connection sizes are generally designed for 16 to 32 millimeter pipes. Operating temperature ranges from 0 to 95 degrees Celsius with peak tolerance up to 110 degrees Celsius. Sealing is achieved using a brass compression ring and high temperature resistant EPDM O ring.

The structure includes an angled body, threaded compression nuts, and a cutting ring for mechanical pipe locking. Body wall thickness typically ranges from 3 to 6 millimeters to withstand internal pressure stress. Thread machining tolerance is below ±0.05 millimeter, and internal surface roughness is designed under 3.2 microns. Pressure drop at the 90 degree turn remains below 0.15 bar at nominal flow rate. Nickel surface plating with thickness from 8 to 20 microns enhances corrosion resistance. Quality control includes hydrostatic testing, leakage testing, and precise dimensional inspection.

press clamping fitting

A compression tee fitting is a mechanical branch connector used to divide flow in cold and hot water piping systems. The body is typically manufactured from forged CW617N brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Connection sizes are generally designed for 16 to 32 millimeter pipes. Operating temperature ranges from 0 to 95 degrees Celsius with peak tolerance up to 110 degrees Celsius. Sealing is achieved using a brass compression ring and high temperature resistant EPDM O ring.

The structure consists of a central body, threaded compression nuts, and a cutting ring for mechanical pipe locking. Body wall thickness typically ranges from 3 to 6 millimeters to withstand internal pressure stress. Thread machining tolerance is below ±0.05 millimeter, and internal surface roughness is designed under 3.2 microns. Pressure drop in the branch path remains below 0.15 bar at nominal flow rate. Nickel surface plating with thickness from 8 to 20 microns enhances corrosion resistance. Quality control includes hydrostatic testing, leakage testing, and precise dimensional inspection.

press clamping fitting

A 90 degree male threaded compression tee is an angled branch fitting used for water distribution piping systems. The body is manufactured from forged CW617N brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Compression connections are typically designed for 16 to 32 millimeter pipes, while the male threaded branch ranges from 1 2 to 1 inch. Operating temperature varies from 0 to 95 degrees Celsius. The mounting plate allows secure installation using anchor screws.

The component structure includes a 90 degree angled body, compression nuts, cutting rings, and a precision machined male thread with tolerance below ±0.05 millimeter. Body wall thickness ranges from 3 to 6 millimeters to withstand internal pressure stress. Sealing is achieved through EPDM O rings and mechanical compression of brass rings. Pressure drop in the main path remains below 0.2 bar at nominal flow rate. Nickel plating thickness from 8 to 20 microns improves corrosion resistance. Quality control includes hydrostatic testing, leakage testing, and accurate inspection of threads and angle geometry.

press clamping fitting

A press reducing coupling is a straight transition fitting designed to change pipe size in cold and hot water systems. The body is manufactured from low lead forged brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Common size combinations include 16 to 20, 20 to 25, and 25 to 32 millimeters. Operating temperature ranges from 0 to 95 degrees Celsius with peak tolerance up to 110 degrees Celsius. The internal design ensures pressure drop below 0.2 bar at nominal flow rate.

The component structure includes two press sockets with stainless steel sleeves and high temperature resistant EPDM O rings. Body wall thickness ranges from 3 to 6 millimeters to withstand internal pressure stress. Sealing is achieved through controlled pipe deformation and uniform O ring compression. Dimensional tolerance in the press area is maintained below ±0.05 millimeter. Nickel plating thickness from 8 to 20 microns enhances corrosion resistance. Quality control includes hydrostatic testing, pull out resistance testing of press joints, and precise dimensional inspection.

Poliran polyethylene cross fitting

The Poliran polyethylene cross fitting is manufactured from high-density polyethylene grade PE100 with an approximate density of 0.955 g/cm³. This component is designed for four-way branching in water distribution, sewage, and pressurized irrigation systems. It provides a tensile strength of around 25 MPa and impact resistance exceeding 10 kJ/m². The operating temperature range is 0 to 40°C, and the nominal pressure rating varies between 6 and 16 bar depending on the model. Its precisely engineered angles and smooth inner walls ensure uniform flow distribution and minimize stress concentration at the branching points.

Poliran polyethylene cross fittings are available in butt-weld and electrofusion types, covering diameters from 32 to 400 mm. The butt-weld version is installed using controlled heat fusion, ensuring complete sealing and superior mechanical integrity. These fittings exhibit excellent resistance to corrosion, UV radiation, and chemical agents, offering a service life of over 50 years. Production follows ISIRI 14427 and ISO 4427 standards, ensuring dimensional precision and consistent quality across all models.

press clamping fitting

A 90 degree wall mounted press tee is a fixed branch fitting designed for water distribution in modern piping systems. The body is typically manufactured from low lead forged brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Press connection sizes are generally designed for 16 to 32 millimeter pipes. Operating temperature ranges from 0 to 95 degrees Celsius with peak tolerance up to 110 degrees Celsius. The wall plate enables stable installation using standard anchor screws.

The structure includes a 90 degree angled body, press sockets with stainless steel sleeves, and EPDM O rings. Body wall thickness typically ranges from 3 to 6 millimeters to withstand internal pressure stress. Sealing is achieved through controlled pipe deformation and O ring compression. Pressure drop in the main flow path remains below 0.2 bar at nominal flow rate. Nickel plating thickness from 8 to 20 microns enhances corrosion resistance. Quality control includes hydrostatic testing, pull out resistance testing of press joints, and precise dimensional inspection.

press clamping fitting

A press coupling is a straight connector used to join two pipes of equal diameter in cold and hot water systems. The body is manufactured from low lead forged brass with tensile strength between 350 and 500 megapascals. Nominal working pressure ranges from 10 to 16 bar, with test pressure up to 24 bar. Common sizes include 16, 20, 25, and 32 millimeters. Operating temperature ranges from 0 to 95 degrees Celsius with peak tolerance up to 110 degrees Celsius. The internal hydraulic design ensures pressure drop below 0.15 bar at nominal flow rate.

The structure includes two press sockets with stainless steel sleeves and heat resistant EPDM O rings. Body wall thickness ranges from 3 to 6 millimeters to withstand internal pressure stress. Sealing is achieved through controlled pipe deformation and uniform O ring compression. Dimensional tolerance in the press area is maintained below ±0.05 millimeter. Nickel plating thickness from 8 to 20 microns enhances corrosion resistance. Quality control includes hydrostatic testing, pull out resistance testing of press joints, and precise dimensional inspection.

Stainless Steel Railing Fittings

Stainless steel railing fittings are industrial components used for installing and connecting various stainless steel railings in indoor and outdoor spaces. These fittings are typically made from stainless steel 304 or 316 to provide high corrosion resistance, durability, and weatherproof performance. Designs include angled connectors, T-joints, pipe adapters, and base supports for quick and secure railing installation. Component diameters range from 25 to 50 millimeters with a thickness of 1 to 2 millimeters. Surfaces are polished for a smooth finish and resistance to scratches and wear.

Structurally, stainless steel railing fittings are precision-welded or assembled to withstand the weight and pressure applied to the railing. The geometric design ensures uniform force distribution and prevents stress concentration. They operate reliably within minus 20 to plus 80 degrees Celsius and offer high resistance to impact and mechanical stress. Each piece undergoes dimensional inspection and quality control before packaging to ensure installation durability and safety.

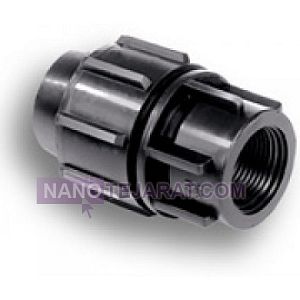

3-4x25 mm polyethylene female fitting

Purchase 3/4×25 Polyethylene Female Connection with Best Price and Quality:

If you
e looking for a high-quality ¾-inch × 25mm polyethylene female connection, this product is the ideal choice for polyethylene piping systems. Made from premium-grade polyethylene, these fittings are designed for connecting polyethylene pipes in water supply, industrial, and agricultural systems.

Thanks to their high durability and easy installation, these connections are perfect for piping projects. They prevent leaks and ensure a completely watertight seal for your piping system.

To buy 25×3.4mm polyethylene female connections with genuine quality and competitive pricing, you can rely on Sial Sanat, a trusted supplier of polyethylene pipes and fittings. These products come in standard packaging and are suitable for both small and large-scale projects.

Flanged Polyethylene Fitting 90x3 Inch

Flanged Polyethylene Fitting 3×90 Inch | Best Price & Quality

The threaded flanged polyethylene fitting size 3×90 inches is one of the most widely used connections in industrial and municipal piping systems. Made from PE100 grade material, it offers high resistance to corrosion, impact, and chemicals, making it an ideal choice for water supply, sewage, and fluid transfer projects. Its flanged design allows for easy connection to both polyethylene and metal pipes—no welding required—enabling quick installation using bolts and nuts.

These fittings can withstand pressures up to PN16 and are widely used in pressurized systems, drip irrigation, and oil & gas industries. Key benefits include lightweight construction, long lifespan, and low maintenance costs. For optimal sealing, we recommend using rubber gaskets.

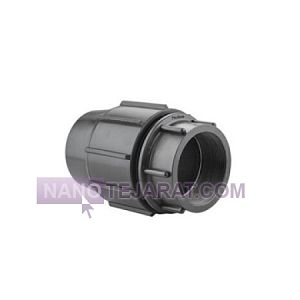

Polyethylene Female Fitting 1-2x20

The polyethylene female fitting ½×20 is one of the most widely used fittings in pressurized water piping and irrigation systems. Also known as a 20mm female fitting, it is used to connect polyethylene pipes to valves, filters, and other equipment.

Technical Specifications of 20mm x ½" Polyethylene Female Fitting:

Size: ½×20 mm 20mm x ½ inch

Material: Polypropylene copolymer PP-CO - impact and corrosion resistant

Working Pressure: 10 bar atm - suitable for pressurized systems

Connection Type: High-pressure threaded Female Adaptor - internal thread female

Primary Use: Connecting 20mm polyethylene pipes to valves, filters, and equipment with ½" threads

For bulk purchases and current pricing information on 20x1.2 polyethylene female fittings, please contact our experts.

1-32 polyethylene branch saddle fitting

The 1×32 polyethylene branch saddle is one of the most widely used fittings in polyethylene piping systems, designed for creating branch connections and changing pipe directions. This three-way fitting allows connection of a 32mm diameter pipe to a main pipe of the same diameter. Manufactured from polyethylene PE material, it offers excellent resistance to pressure, impact, and corrosion.

Thanks to its lightweight construction, high durability, and easy installation, this fitting serves as an excellent alternative to traditional metal fittings. If you
e looking for a cost-effective and long-lasting solution for your piping system, the 1×32 polyethylene branch saddle is an ideal choice.

For purchasing and professional consultation, please contact the experts at Sial Sanat.
