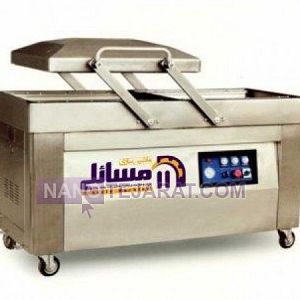

Twin-Chamber Gas Flush Vacuum Packaging Machine

This machine is constructed from a heavy-duty wear-resistant epoxy-coated steel chassis and 316L stainless steel components. Each vacuum chamber has standard internal dimensions of 600 x 500 x 150 mm, customizable up to 1200 x 800 x 300 mm. The centralized vacuum system uses a 7.5 kW rotary vane pump capable of achieving 0.05 to 5 mbar vacuum. The MAP gas flushing system operates with ±0.3% volumetric accuracy, blending N₂, CO₂, and O₂ in programmable ratios. Dual ceramic sealing elements 3.2 kW each with controlled temperature of 120–280°C are installed. With dual-chamber simultaneous operation, cycle speed is 4–12 seconds, processing 40–100 packages per minute.

An advanced PLC-based control system with a 12-inch touchscreen and 100 programmable profiles is integrated. Differential pressure sensors, infrared gas leak detectors, and PID thermal sensors ensure precision and safety. Hydraulic doors with 20 bar operating pressure and electromechanical safety locks enable risk-free operation. Compatible with multilayer EVOH/PA/PP films of 70–250 microns thickness for Modified Atmosphere Packaging MAP. External dimensions are 2800 x 1600 x 2000 mm with an approximate weight of 1200 kg. The machine complies with CE, ISO 22000 standards and carries EHEDG and GMP certi

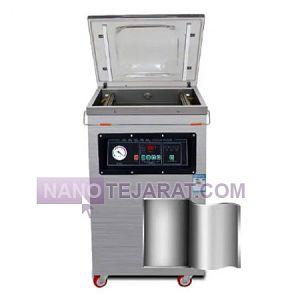

Single-Chamber Vertical Gas Flush Vacuum Packaging Machine

This machine is built with a heavy-duty electrostatic epoxy-coated steel chassis and 316 stainless steel components. The vacuum chamber is available with internal dimensions from 500 x 400 x 150 mm to 1000 x 700 x 250 mm. The vacuum system utilizes a two-stage 5.5 kW rotary vane pump achieving vacuum levels of 0.1 to 2 mbar. The MAP gas flushing system operates with ±0.4% volumetric accuracy, blending N₂, CO₂, and O₂. A ceramic sealing element 2.8 kW with adjustable temperature of 100–260°C is installed. Cycle speed ranges from 3–8 seconds, processing 20–50 packages per minute.

A PLC-based control system with a 10-inch touchscreen and 50 programmable work profiles is integrated. Piezoresistive pressure sensors, ultrasonic gas leak detectors, and film detection sensors ensure operational accuracy. A hydraulic door with 18 bar pressure and dual mechanical-electronic safety locks enhances safety. Compatible with multilayer EVOH/PA/PE films of 75–200 microns thickness for MAP packaging. External dimensions are 1800 x 1100 x 1900 mm with a weight of approximately 650 kg. The machine complies with CE and ISO 22000 standards and carries EHEDG certification for food and pharmaceutical applications.

Fully Automatic Gas Flush Vacuum Sealing Machine

The fully automatic gas flush vacuum sealer is built with a heavy-duty epoxy-coated steel frame and 316 stainless steel components. Vacuum chamber dimensions range from 500 x 400 x 150 mm to 1200 x 800 x 300 mm. The vacuum system uses a two-stage oil pump 5.5 kW achieving vacuum levels of 0.1 to 1 mbar. The MAP gas flushing system operates with ±0.5% volumetric accuracy, blending N₂, CO₂, and O₂. A ceramic sealing element 2 kW with adjustable temperature of 100–250°C is installed. Cycle speed is 3–10 seconds, capable of processing 20–60 packages per minute.

A PLC control system with a 10-inch touchscreen and storage for 50 work programs is integrated. Pressure sensors, gas leak detectors, and lid placement sensors ensure precision and safety. A hydraulic door mechanism 15 bar pressure with dual safety locks enhances operational security. Compatible with multilayer films EVOH/PA/PE of 80–200 microns thickness for sealing. External dimensions range from 1500 x 1000 x 1800 mm to 2500 x 1500 x 2200 mm. The machine complies with CE and ISO 22000 standards and carries EHEDG certification for food industry applications.

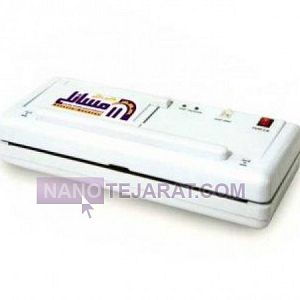

Retail Vacuum Packaging Machine

This retail vacuum machine features an ABS and 304 stainless steel 1 mm thick construction. It integrates a two-stage oil rotary vacuum pump with 12 m³/h flow rate, achieving vacuum levels down to 0.5 mbar. The sealing system uses a ceramic heating element with adjustable temperature 120–200°C and 10 mm seal width. Maximum bag length is 400 mm with a depth of 300 mm, featuring adjustable chamber height. Vacuum and sealing cycle times are adjustable from 15 to 60 seconds in manual or automatic mode. An LCD digital display allows precise adjustment of time, temperature, and pressure parameters.

The system offers both standard vacuum and gas flush nitrogen modes with ±10 mL gas injection accuracy. The vacuum chamber is made of 8 mm transparent polycarbonate with a magnetic safety lock. Machine dimensions are 600 x 450 x 350 mm, weighing 28 kg. Power consumption is 1.5 kWh, operating on 220V AC single-phase voltage. It includes a replaceable oil filter and a maintenance alert system. Designed for butcher shops, grocery stores, and restaurants with a capacity of 100–200 packages per day.

Chamberless Vertical Vacuum Packaging Machine

This machine features a carbon steel chassis with electrostatic epoxy coating and 304 stainless steel components. The vacuum sealing strip operates at widths of 500–1200 mm and variable speeds of 5–15 m/min. A two-stage rotary vane vacuum pump 4 kW achieves vacuum levels up to 0.1 mbar. A ceramic sealing element 2.5 kW with controlled temperature of 80–220°C is installed. It can process 8–20 packages per minute depending on film size and thickness. Power consumption is 8 kWh with required air pressure of 6 bar and flow of 200 L/min.

An industrial PLC control system with a 7-inch touchscreen and 30 programmable profiles is integrated. Optical and ultrasonic sensors automatically detect film thickness and adjust sealing parameters. A rotary cutting system with hardened steel blades ensures cutting precision of ±0.3 mm. Compatible with multilayer PA/PE and EVA films of 60–180 microns thickness. Machine dimensions are 1800 x 900 x 1600 mm with a weight of approximately 350 kg. It complies with CE safety standards, ISO 9001, and carries RoHS certification.

Vacuum

The industrial vacuum cleaner features a 220V 50-60 Hz induction motor with 1200 to 3000 watts power. Suction power ranges from 200 to 400 kPa with airflow of 30 to 60 liters per second. Collection tank is made of stainless steel or polyethylene with 20 to 80-liter capacity. Primary HEPA 13 or 14 filter provides 99.95% particle retention down to 0.3 microns. Operational noise levels are 65 to 75 dB with vibration damping and acoustic insulation. Device weight ranges from 8 to 25 kg with industrial swivel casters and brake locks.

Structure includes a rotary vane vacuum pump with automatic oiling and adjustable suction valve. Housing is constructed from powder-coated carbon steel resistant to impact and corrosion. Suction hose is steel-wire reinforced PVC with 2 to 4-meter length and 32 to 62 mm diameter. Multi-stage filtration system includes cyclonic pre-filter, bag filter, and HEPA filter. Equipped with tank full indicator, emergency stop switch, and overload protection. Complies with ISO 9001, IEC 60335-2-69, and CE standards for industrial environments.

Desktop Gas Flush Vacuum Sealing Machine

This desktop unit features an AISI 304 stainless steel body 1.5 mm thick and a polycarbonate control panel. Overall dimensions are 500 x 400 x 300 mm, weighing 22 kg. A single-stage oil rotary vacuum pump with 8 m³/h flow rate achieves vacuum levels down to 0.1 mbar. The gas flushing system offers ±5 mL accuracy, adjustable gas volumes from 50 to 1000 mL. A ceramic sealing element with adjustable temperature 100–200°C provides a 3 mm seal width. Total cycle time vacuum, gas flush, seal ranges from 15 to 45 seconds, fully programmable.

Control is managed via a PLC with a 5-inch touchscreen and internal memory for 10 programs. An internal gas reservoir 5 L capacity, 6 bar working pressure supports N₂ or CO₂. A piezoresistive pressure sensor monitors chamber pressure with ±0.5% accuracy. The chamber lid is made of 10 mm polycarbonate with a mechanical lock and silicone gasket. Power consumption is 1.2 kW, requiring 4 bar compressed air at 10 L/min. The machine complies with FDA and CE standards for food contact applications.

Automatic Gas Flush Vacuum Sealing Machine

The automatic gas flush vacuum sealer is built with an AISI 304 stainless steel chassis of 3 mm thickness. It achieves vacuum levels down to 0.1 mbar using a two-stage 1500-watt oil pump. The MAP gas injection system is controlled via pneumatic solenoid valves with ±1% volumetric accuracy. Production speed ranges from 10 to 40 cycles per minute depending on package size and film thickness. The sealing chamber is aluminum alloy with a 1000-watt ceramic heater adjustable from 100 to 250°C.

The control system features an industrial PLC and a 10-inch touchscreen HMI for setting pressure, time, and gas parameters. It supports multilayer barrier films PA/PE/EVOH with thicknesses from 80 to 150 microns. Processable package dimensions range from 100x50 mm to 400x300 mm, with depths up to 150 mm. Power consumption is 8 kW per hour, requiring 6 bar compressed air at 200 liters per minute. It includes infrared leak detection sensors and data tracking for quality assurance. Overall dimensions are 2000x1500x1800 mm, with an approximate weight of 1200 kg.

Manual Desktop Vacuum Sealer

This device is constructed from a 4 mm thick polycarbonate body and galvanized metal components. The vacuum chamber measures 300 x 250 x 100 mm with a maximum capacity of 5 liters. It uses a single-stage 0.75 kW piston pump achieving vacuum levels up to 5 mbar. The sealing element is a Teflon-coated heat strip 1.2 kW operating at a constant 180°C. Manual vacuum and sealing cycles take 10–30 seconds, processing 2–4 bags per minute. Power consumption is 1.8 kWh and weight is 8.5 kg.

The control system includes mechanical push buttons and LED indicators for vacuum and temperature status. A manual control valve for vacuum and optional gas flush ±2% volumetric accuracy is provided. An automatic heat cut-off sensor upon door opening enhances safety. Compatible with multilayer PE/Nylon bags of 80–150 microns thickness. External dimensions are 400 x 350 x 200 mm with noise levels below 65 dB. The machine complies with CE, RoHS, and carries FCC certification for household and laboratory use.

Chamberless Desktop Vacuum Sealer

This desktop unit features a polycarbonate body and epoxy-coated steel components. It employs a dry piston vacuum pump with 4 m³/h flow rate and minimum pressure of 5 mbar. A ceramic heating element provides adjustable sealing temperature 100–180°C with a 5 mm seal width. It can vacuum seal multilayer plastic bags up to 350 mm wide and 150 microns thick. Total vacuum and sealing cycle time is digitally adjustable from 10 to 30 seconds. An LED digital display shows real-time pressure and temperature status indicators.

The system uses Teflon-coated sealing jaws and an intelligent pressure sensor for leak detection. Seal length is adjustable up to 400 mm with manual jaw spacing control. Dimensions are 450 x 300 x 150 mm, with a weight of 6.8 kg. Power consumption is 0.8 kWh, operating on 220V AC single-phase voltage. Oil-free design and passive cooling keep the surface temperature below 55°C. Ideal for household, laboratory, and small retail use with a capacity of 50–150 packages per day.

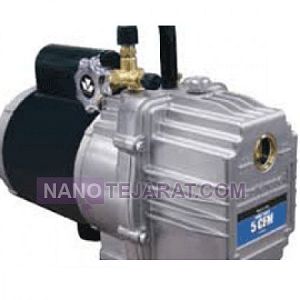

Vacuum Pump

A vacuum pump is a mechanical device designed to create negative pressure and evacuate air or gas from a sealed environment. Typical suction capacity ranges from 50 to 1000 liters per minute, with achievable vacuum pressure from 0.1 to 0.001 bar. A 0.5 to 7.5 kilowatt electric motor or a small diesel engine powers rotor rotation. The rotor is made of hardened steel or aluminum alloy with wear-resistant coating. The cylinder and internal chamber are constructed from stainless steel or die-cast aluminum for durability and corrosion resistance.

Structurally, the vacuum pump includes a rotor or screw impeller, mechanical or graphite sealing system, and standard inlet and outlet connections. Special oil or grease lubricates and reduces internal friction. Device weight ranges from 30 to 500 kilograms and can be mounted on a steel base or wheeled chassis. Continuous operation is guaranteed in temperatures from 0 to 50°C, with compatibility for chemical, medical, and packaging industries.

Vacuum pump oil filter

Vacuum pump oil filters are usually used for purifying paraffin base oild that circulate within vacuum pumps and therefore should have the filtration size of 1 micro meter. as opposed to engine oils that have plenty of additives, most vacuum pump oil filters are dealing basically with anti-oxidation, anti corrosion and sometimes fumes. the working pressure and application of oil filters for vacuum pumps is between 0.007 PSI equivalent to 0.5 bar and up to 29 PSI equivalent to 2000 mbar. these oil filters operate well in temperature between -20 to 90 degrees C.
