Price: To be negotiated

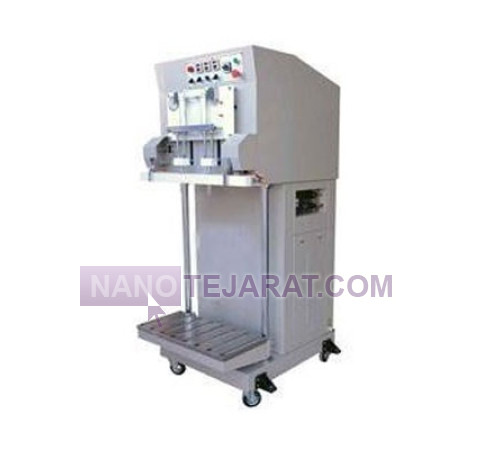

Chamberless Vertical Vacuum Packaging Machine

Exporter, Wholesale, Manufacturer
Isfahan
+989122003350

Price: Negotiate

Price :negotiated

Chamberless Vertical Vacuum Packaging Machine , Iran

This machine features a carbon steel chassis with electrostatic epoxy coating and 304 stainless steel components. The vacuum sealing strip operates at widths of 500–1200 mm and variable speeds of 5–15 m/min. A two-stage rotary vane vacuum pump 4 kW achieves vacuum levels up to 0.1 mbar. A ceramic sealing element 2.5 kW with controlled temperature of 80–220°C is installed. It can process 8–20 packages per minute depending on film size and thickness. Power consumption is 8 kWh with required air pressure of 6 bar and flow of 200 L/min.

An industrial PLC control system with a 7-inch touchscreen and 30 programmable profiles is integrated. Optical and ultrasonic sensors automatically detect film thickness and adjust sealing parameters. A rotary cutting system with hardened steel blades ensures cutting precision of ±0.3 mm. Compatible with multilayer PA/PE and EVA films of 60–180 microns thickness. Machine dimensions are 1800 x 900 x 1600 mm with a weight of approximately 350 kg. It complies with CE safety standards, ISO 9001, and carries RoHS certification.You can order and buy Chamberless Vertical Vacuum Packaging Machine from Iran by contacting us through whatsaap and email.
WEBSITE: Chamberless Vertical Vacuum Packaging Machine Iran

Applications of Standing External Vacuum Machines

Standing external chamberless vacuum machines are designed for rapid and flexible packaging of bulky and heavy products. They operate by evacuating air from inside the bag and sealing it externally. Their primary application is in the food industry for packaging fresh red meat, poultry, fish, and large frozen meat cuts. They are used in the textile and furniture industries for compressing and protecting blankets, pillows, household items, and bulky fabrics. In the electronics and equipment industries, they are applied for packaging components sensitive to moisture, such as electronic boards and motors. They are suitable for industrial packaging of chemical and construction products like construction powders and leak-resistant bags. Stand-up design for easy access, high suction power, and the ability to use roll bags are key advantages of this model.
