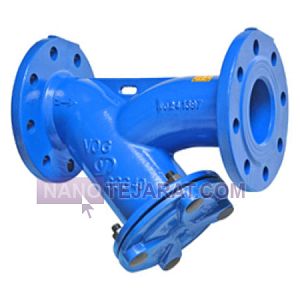

Vogiran flanged Y-type strainer

The Vogiran flanged Y-type strainer is manufactured with a ductile iron GGG40 or carbon steel body, rated for a nominal pressure of PN16. It is designed to remove suspended solids, sediments, and impurities from process fluids in industrial pipelines. The internal mesh screen is made of stainless steel AISI 304 or 316 with a filtration accuracy of 500–800 microns, ensuring durability against wear and corrosion. The working temperature range is 0°C to 200°C, and the flanges are manufactured according to EN1092-2 standards. The bottom cover is bolted for easy access, allowing quick cleaning or replacement of the filter screen. Its Y-pattern design enhances flow efficiency and minimizes pressure drop across the valve.

Depending on the nominal size DN50–DN300, the strainer weight ranges from 8 to 80 kilograms. The interior and exterior surfaces are epoxy-coated for superior resistance to rust and humidity. It can be installed both horizontally and vertically, making it suitable for water supply, steam, compressed air, industrial oil, and non-corrosive fluids. The robust construction and precision engineering extend the valve’s service life while reducing maintenance needs. Manufactured in accordance with EN 558 and DIN 3202 standards, the Vogiran Y-type flanged strainer is

flanged shaft

Truck mounted concrete pump spare parts include concrete delivery assemblies, high pressure hydraulic systems, articulated boom structures, and heavy duty wear resistant components. Nominal operating pressure typically ranges from 90 to 130 bar, with pumping capacities between 60 and 200 cubic meters per hour. Delivery cylinders are manufactured with internal diameters from 180 to 230 millimeters and strokes of 1500 to 2100 millimeters. Concrete pistons use reinforced polyurethane packings capable of withstanding pressures up to 120 bar and temperatures up to 80 degrees Celsius. Pipes and elbows are produced from alloy steel with hardness between 60 and 65 HRC. Wear plates and cutting rings exceed 600 Brinell hardness to maximize operational life.

The boom structure is fabricated from high strength steel with yield strength above 700 megapascals to minimize elastic deflection at height. Boom length varies from 28 to 65 meters and includes 3 to 6 articulated sections. A hydraulic piston pump rated at 110 to 220 kilowatts delivers 200 to 340 liters per minute. The S valve or rock valve switches concrete flow at 20 to 35 cycles per minute. Machining tolerances for pins and bushings are maintained below 0.05 millimeters. Quality control includes hydrostatic pressure testing, boom

bearing flange

Truck mounted concrete pump spare parts include concrete delivery assemblies, high pressure hydraulic systems, multi section articulated booms, and heavy duty wear resistant components. Nominal operating pressure typically ranges from 90 to 130 bar, with pumping capacities between 60 and 200 cubic meters per hour. Delivery cylinders are manufactured with internal diameters from 180 to 230 millimeters and strokes of 1500 to 2100 millimeters. Concrete pistons use reinforced polyurethane packings capable of withstanding pressures up to 120 bar with high abrasion resistance. Pipes and elbows are produced from alloy steel with hardness between 60 and 65 HRC. Wear plates and cutting rings exceed 600 Brinell hardness to extend service life.

The boom structure is fabricated from high strength steel with yield strength above 700 megapascals to minimize deflection and vibration at height. Boom length varies from 28 to 65 meters and includes 3 to 6 articulated sections. A hydraulic piston pump rated at 110 to 220 kilowatts delivers 200 to 340 liters per minute. The S valve or rock valve switches concrete flow at 20 to 35 cycles per minute. Machining tolerances for pins and bushings are maintained below 0.05 millimeters. Quality control includes hydrostatic pressure testing, boom fatigue

flanged shaft

Truck mounted concrete pump spare parts include concrete delivery assemblies, high pressure hydraulic systems, articulated boom structures, and heavy duty wear resistant components. Nominal operating pressure typically ranges from 90 to 130 bar, with pumping capacities between 60 and 200 cubic meters per hour. Delivery cylinders are manufactured with internal diameters from 180 to 230 millimeters and strokes of 1500 to 2100 millimeters. Concrete pistons use reinforced polyurethane packings capable of withstanding pressures up to 120 bar. Pipes and elbows are produced from alloy steel with hardness between 58 and 65 HRC. Wear plates and cutting rings exceed 600 Brinell hardness to improve abrasion resistance.

The boom structure is fabricated from high strength steel with yield strength above 700 megapascals to minimize deflection at height. Boom length varies from 28 to 65 meters and includes 3 to 6 articulated sections. A hydraulic piston pump rated at 110 to 220 kilowatts delivers 200 to 340 liters per minute. The S valve or rock valve switches concrete flow at 20 to 35 cycles per minute. Machining tolerances for pins and bushings are maintained below 0.05 millimeters. Quality control includes hydrostatic pressure testing, boom fatigue evaluation, and non destructive inspecti

flange

Stationary concrete pump spare parts include delivery cylinders, switching valves, hydraulic systems, and high wear resistant components designed for heavy duty operation. Nominal operating pressure typically ranges from 70 to 120 bar, with pumping capacity between 30 and 120 cubic meters per hour. Delivery cylinders are manufactured with internal diameters from 160 to 230 millimeters and strokes of 1200 to 2000 millimeters. Concrete pistons use polyurethane packings with compressive strength above 30 megapascals. Delivery pipes are produced from alloy steel with hardness between 55 and 63 HRC. Wear plates and cutting rings exceed 550 Brinell hardness to reduce wear rate.

The chassis structure is fabricated from structural steel with minimum yield strength of 355 megapascals to ensure stability under continuous loading. The hopper includes an agitator rotating at 18 to 30 revolutions per minute to prevent concrete settlement. The S valve or rock valve switches flow direction at 15 to 30 cycles per minute. A hydraulic piston pump rated at 75 to 160 kilowatts delivers 150 to 260 liters per minute. Machining tolerances for bushings and pins are maintained below 0.05 millimeters. Quality control includes static pressure testing, leakage inspection, and non destructive evaluation o

flange for clutch

Stationary concrete pump spare parts include concrete delivery assemblies, hydraulic units, switching valve systems, and heavy duty wear resistant components. Nominal operating pressure typically ranges from 75 to 120 bar, with pumping capacities between 40 and 120 cubic meters per hour. Delivery cylinders are manufactured with internal diameters from 160 to 230 millimeters and strokes of 1300 to 2000 millimeters. Concrete pistons use polyurethane rings with compressive strength above 32 megapascals. Delivery pipes are produced from alloy steel with hardness between 56 and 64 HRC. Wear plates and cutting rings exceed 550 Brinell hardness to extend service life.

The chassis structure is fabricated from structural steel with minimum yield strength of 355 megapascals to ensure stability under continuous loading. The hopper is equipped with an agitator rotating at 20 to 30 revolutions per minute to prevent segregation. The S valve or rock valve switches flow direction at 15 to 30 cycles per minute. A hydraulic piston pump rated at 90 to 160 kilowatts delivers 170 to 260 liters per minute. Machining tolerances for bushings and pins are maintained below 0.05 millimeters. Quality control includes static pressure testing, leakage inspection, and non destructive evaluation of stressed

Kitz 3-inch Class 300 flanged gate valve

The Kitz 3-inch Class 300 flanged gate valve is manufactured with a steel or ductile iron body, rated for Class 300 pressure per ASME B16.34 standards. It operates as a gate valve with a linear sliding disc mechanism, providing full open or closed flow control and is not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze for corrosion and wear resistance, capable of handling operating temperatures from 0°C to 425°C. The flanged design conforms to ASME B16.5, ANSI B16.47, or JIS B2220 standards, allowing secure and fast installation between standard flanged pipelines. Internal sealing with high-performance washers ensures minimal leakage and quiet, reliable operation.

Depending on body material, the valve weighs between 15 and 25 kilograms. The body and disc are designed to withstand pressure surges and impacts, making it suitable for water, steam, oil, and other industrial and chemical fluids. Flanges feature standard bolt patterns and corrosion-resistant coating for easy installation and long-term protection. The Kitz 3-inch Class 300 flanged gate valve offers robust construction, long service life, and safe operation, making it a primary choice for oil, gas, power plants, and high-pressure industrial pipelines.

Kitz 4-inch Class 300 flanged gate valve

The Kitz 4-inch Class 300 flanged gate valve is manufactured with a steel or ductile iron body, rated for Class 300 pressure per ASME B16.34 standards. It operates as a gate valve with a linear sliding disc mechanism, providing full open or closed flow control and is not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze for corrosion and wear resistance, capable of handling operating temperatures from 0°C to 425°C. The flanged design conforms to ASME B16.5, ANSI B16.47, or JIS B2220 standards, allowing secure and rapid installation between standard flanged pipelines. Internal sealing with high-performance washers ensures minimal leakage and quiet, reliable operation.

Depending on body material, the valve weighs between 18 and 28 kilograms. The body and disc are designed to withstand pressure surges and impacts, making it suitable for water, steam, oil, and other industrial and chemical fluids. Flanges feature standard bolt patterns and corrosion-resistant coating for easy installation and long-term protection. The Kitz 4-inch Class 300 flanged gate valve offers robust construction, long service life, and safe operation, making it an ideal choice for oil, gas, power plants, and high-pressure industrial pipelines.

Kitz 4-inch Class 300 flanged gate valve

The Kitz 4-inch Class 300 flanged gate valve is manufactured with a steel or ductile iron body, rated for Class 300 pressure per ASME B16.34 standards. It operates as a gate valve with a linear sliding disc mechanism, providing full open or closed flow control and is not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze for corrosion and wear resistance, capable of handling operating temperatures from 0°C to 425°C. The flanged design conforms to ASME B16.5, ANSI B16.47, or JIS B2220 standards, enabling secure and fast installation between standard flanged pipelines. Internal sealing with high-performance washers ensures minimal leakage and quiet, reliable operation.

Depending on body material, the valve weighs between 20 and 30 kilograms. The body and disc are designed to withstand pressure surges and impacts, suitable for water, steam, oil, and other industrial and chemical fluids. Flanges feature standard bolt patterns and corrosion-resistant coating for easy installation and long-term protection. The Kitz 4-inch Class 300 flanged gate valve offers robust construction, long service life, and safe operation, making it a primary choice for oil, gas, power plants, and high-pressure industrial pipelines.

Kitz 3-inch Class 300 flanged gate valve

The Kitz Class 300 flanged gate valve is manufactured with a steel or ductile iron body and rated for Class 300 pressure according to ASME B16.34. It operates as a gate valve with a linear sliding disc mechanism, providing full open or closed flow control, not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze for high corrosion and wear resistance, capable of handling operating temperatures between 0°C and 425°C. The flanged design conforms to ASME B16.5 standards, enabling secure and rapid installation between standard flanged pipelines. Internal sealing with high-performance washers ensures minimal leakage and quiet, reliable operation.

Depending on nominal size DN50–DN600, the valve weight ranges from 25 to 450 kilograms. The body and disc are designed to withstand pressure surges and impacts, making it suitable for water, steam, oil, and other industrial and chemical fluids. Flanges feature standard bolt patterns and corrosion-resistant coating for long-term protection and ease of installation. The Kitz Class 300 flanged gate valve offers robust construction, long service life, and safe operation, making it a primary choice for oil, gas, power plants, and high-pressure industrial pipelines.

Kitz 2-inch Class 150 flanged gate valve

The Kitz 2-inch Class 150 flanged gate valve is manufactured with a steel or ductile iron body, rated for Class 150 pressure according to ASME B16.34 standards. It operates as a gate valve with a linear sliding disc mechanism, providing full open or closed flow control and is not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze for corrosion and wear resistance, with an operating temperature range of 0°C to 300°C. The flanged connection conforms to ASME B16.5, EN1092-2, or JIS B2220 standards, allowing secure and fast installation between standard flanged pipelines. Internal sealing with high-performance washers minimizes leakage and ensures quiet, reliable operation.

Depending on body material, the valve weighs between 7 and 12 kilograms. The body and disc withstand pressure surges and impacts, making it suitable for water, steam, oil, and industrial fluids. Flanges with standard bolt patterns and corrosion-resistant coating ensure quick installation and long-term protection. The Kitz 2-inch Class 150 flanged gate valve provides long service life, easy maintenance, and reliable operation, making it an ideal choice for water, wastewater, power plants, and medium-pressure industrial pipelines.

Kitz Class 300 6-inch flanged gate valve

The Kitz Class 300 flanged gate valve is manufactured with a steel or ductile iron body, rated for Class 300 pressure per ASME B16.34 standards. It operates as a gate valve with a sliding disc mechanism, providing full open or closed flow control, not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze for high corrosion and wear resistance, capable of handling operating temperatures between 0°C and 425°C. The flanged design conforms to ASME B16.5 standards, allowing secure and rapid installation between standard flanged pipelines. Internal sealing with high-performance washers ensures minimal leakage and reliable, quiet operation.

Depending on nominal size DN50–DN600, the valve weight ranges from 25 to 450 kilograms. The body and disc are designed to withstand pressure surges and impacts, suitable for water, steam, oil, and other industrial and chemical fluids. Flanges feature standard bolt patterns and corrosion-resistant coating for long-lasting protection and easy installation. The Kitz Class 300 flanged gate valve offers robust construction, long service life, and safe operation, making it a key choice for oil, gas, power plants, and high-pressure industrial pipelines.

Kitz 6-inch flanged gate valve

The Kitz flanged gate valve is manufactured with a steel or ductile iron body, rated for nominal pressures of PN16 to PN40. It operates as a gate valve with a linear sliding disc mechanism, providing full open or closed flow control and is not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze to resist corrosion and wear, with a working temperature range of 0°C to 300°C. The flanged design conforms to EN1092-2, ANSI B16.5, or JIS B2220 standards, allowing seamless installation between standard pipeline flanges. Internal sealing with high-performance washers minimizes leakage, ensuring silent and reliable operation.

Depending on nominal size DN50–DN600, the valve weight ranges from 15 to 350 kilograms. The body and disc design provides resistance to pressure surges and impacts, making it suitable for water, steam, compressed air, oil, and chemical pipelines. Flanges feature standard bolt patterns and epoxy or corrosion-resistant coating for easy installation and protection. The Kitz flanged gate valve offers robust construction, safe operation, and long service life, making it a key choice for water, wastewater, power plants, and high-pressure industrial pipelines.

Kitz 6-inch steel flanged gate valve

The Kitz 6-inch steel flanged gate valve is manufactured with a steel body and rated for PN16 to PN40 pressure. It operates as a gate valve with a linear sliding disc mechanism, providing full open or closed flow control and is not suitable for throttling. Internal components, including the disc and seat, are made of stainless steel or bronze to resist corrosion and wear, with an operating temperature range from 0°C to 300°C. The flanged connection conforms to EN1092-2 or ASME B16.5 standards, allowing secure and rapid installation between standard flanged pipelines. Internal sealing with high-performance washers minimizes leakage and ensures quiet, reliable operation.

Depending on size and pressure rating, the 6-inch Kitz steel gate valve weighs between 35 and 50 kilograms. The body and disc are designed to withstand pressure surges and impacts, making it suitable for water, steam, oil, and other industrial fluids. Flanges feature standard bolt patterns and corrosion-resistant coating for easy installation and long-term protection. The Kitz 6-inch steel flanged gate valve offers robust construction, long service life, and safe operation, making it ideal for industrial pipelines and medium- to high-pressure installations.

Kitz 8-inch flanged ball valve

The Kitz 8-inch flanged ball valve is constructed with a steel or ductile iron body and designed per ASME B16.34 standards for pressure ratings from PN16 to PN40. It features a stainless steel 304 or 316 spherical ball that rotates 90 degrees to fully open or close the flow. The seat, made from PTFE or RPTFE, provides excellent corrosion resistance and durability under operating temperatures ranging from -20°C to 200°C. The flanged connection, built to ASME B16.5 or EN1092-2 standards, allows safe and precise installation between standard flanged pipelines. Dual sealing on the stem and seat ensures leak-free performance and long service life.

Depending on body material and pressure class, the valve weighs between 55 and 75 kilograms. The strong steel body ensures stable operation under high pressure and vibration. The polished ball and precision seat guarantee smooth, low-friction movement. This valve is suitable for handling water, steam, gas, oil, chemicals, and industrial fluids in high-pressure systems. With precise engineering, easy maintenance, and outstanding durability, the Kitz 8-inch flanged ball valve is an excellent choice for oil, gas, petrochemical, and power plant applications.
