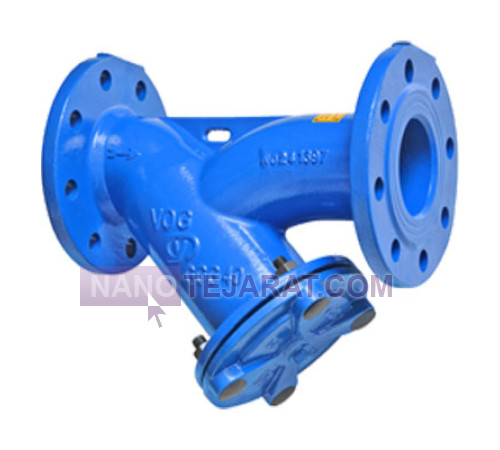

The Vogiran flanged Y-type strainer is manufactured with a ductile iron GGG40 or carbon steel body, rated for a nominal pressure of PN16. It is designed to remove suspended solids, sediments, and impurities from process fluids in industrial pipelines. The internal mesh screen is made of stainless steel AISI 304 or 316 with a filtration accuracy of 500–800 microns, ensuring durability against wear and corrosion. The working temperature range is 0°C to 200°C, and the flanges are manufactured according to EN1092-2 standards. The bottom cover is bolted for easy access, allowing quick cleaning or replacement of the filter screen. Its Y-pattern design enhances flow efficiency and minimizes pressure drop across the valve.
Depending on the nominal size DN50–DN300, the strainer weight ranges from 8 to 80 kilograms. The interior and exterior surfaces are epoxy-coated for superior resistance to rust and humidity. It can be installed both horizontally and vertically, making it suitable for water supply, steam, compressed air, industrial oil, and non-corrosive fluids. The robust construction and precision engineering extend the valve’s service life while reducing maintenance needs. Manufactured in accordance with EN 558 and DIN 3202 standards, the Vogiran Y-type flanged strainer is recognized as a high-performance and reliable industrial filtration solution.
WEBSITE: Vogiran flanged Y-type strainer Iran
The VOGiran Y-type flanged strainer, with a cast iron or stainless steel body and stainless steel internal mesh, offers higher resistance to corrosion and wear than similar models. Its Y-angle hydraulic design reduces pressure drop and enables faster solid particle discharge. Flanged installation according to PN16 and ASME B16.5 ensures precise, leak-free connection to industrial pipelines. Stable operation, easy maintenance, and long service life distinguish this product from non-branded and Chinese alternatives. Its ability to withstand pressures up to 16 bar and operating temperatures up to 200°C makes it ideal for oil, gas, steam, and petrochemical industries.
