Elevator Iran

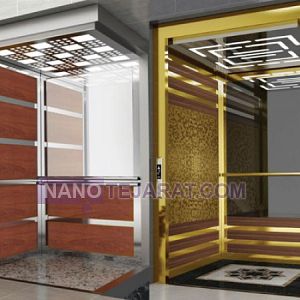

elevator cabin

کابین آسانسور از پانل‌های کامپوزیت آلومینیومی با هسته پلی‌اتیلن شبکه‌ای یا فولاد گالوانیزه با ضخامت ۱.۸ تا ۳.۵ میلی‌متر ساخته می‌شود. ابعاد داخلی استاندارد از ۱۰۰۰x۱۳۵۰ میلی‌متر تا ۲۶۰۰x۳۰۰۰ میلی‌متر با ارتفاع سقف ۲۲۰۰ تا ۲۸۰۰ میلی‌متر متغیر است. ظرفیت بارگیری از ۴۵۰ تا ۵۰۰۰ کیلوگرم با ضریب ایمنی ۱.۲۵ مطابق استاندارد EN ۸۱-۲۰ طراحی شده است. کف کابین از صفحات فولادی ضد لغزش با ضخامت ۳.۵ میلی‌متر و پوشش اپوکسی صنعتی با ضریب اصطکاک ۰.۷۵ عرضه می‌شود. دیواره‌های داخلی با ورق استیل ضدزنگ ۳۱۶L با ضخامت ۱.۵ تا ۲.۵ میلی‌متر و پرداخت مش آینه‌ای پوشش داده می‌شوند. تمامی اتصالات با پیچ و مهره فولادی گرید ۱۰.۹ و درزگیرهای ویبرو-اکوستیک برای کاهش صدا تا ۲۵ دسی‌بل اجرا می‌شوند.

ساختار شاسی کابین از پروفیل‌های فولادی �

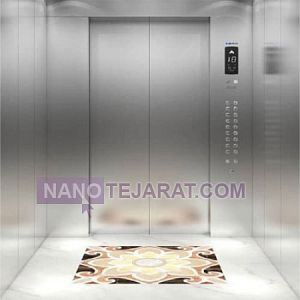

Elevator

آسانسور مسافربری مدرن یک سیستم یکپارچه شامل کابین، موتور کششی، کنترل‌ر، ریل‌های راهنما و تجهیزات ایمنی است. ظرفیت استاندارد از ۴ تا ۳۰ مسافر با سرعت حرکت ۱ تا ۱۰ متر بر ثانیه متغیر است. موتور‌های کششی معمولاً از نوع PMSM بدون گیربکس با توان ۱۰ تا ۶۰ کیلووات و راندمان ۹۵٪+ هستند. سیستم کنترل با منطق PLC یا مبتنی بر درایو‌های اینورتر، دقت توقف را در سطح ±۵ میلی‌متر تضمین می‌کند. کابین از ورق‌های فولادی با پوشش پودری الکترواستاتیک و فضای داخلی از استیل ضدزنگ یا صفحات کامپوزیتی ساخته می‌شود. سیستم ایمنی شامل ترمز‌های الکترومغناطیسی، گاورنر سرعت، پاراشوت و حسگر‌های نوری درب است.

سیستم محرکه از نوع کشش سیم‌بکسل فولادی با ضریب ایمنی ۱۲ بر اساس استاندارد EN ۸۱-۲۰/۵۰ طراحی می‌شود. فریم کابین و против‌وزنه از پروفیل

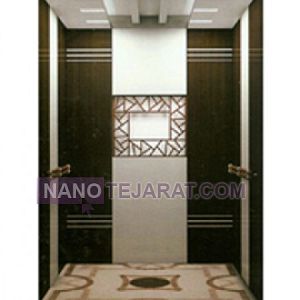

Elevator cabin

The elevator car is constructed from aluminum composite panels with high-density polyethylene HDPE core or pre-painted galvanized steel, 1.8–3.5 mm thick. Standard internal dimensions range from 1100x1400 mm to 2400x2800 mm with ceiling heights of 2200–2600 mm. Load capacity varies from 450 to 2500 kg, designed with a 1.25 safety factor per EN 81-20 standards. The car floor uses porcelain ceramic tiles 10 mm thick with anti-slip coating achieving a friction coefficient of 0.75. Interior walls are clad with 304 stainless steel sheets 1.2 mm thick featuring satin brushed or mirror bead-blasted finishes. All joints utilize A2-70 stainless steel bolts and silicone elastomer sealants with thermal resistance from –40°C to +200°C.

The car frame consists of welded steel profiles with 355 MPa yield strength and 80-micron electrostatic epoxy coating. The suspension system includes four to eight guide shoes with carbon-reinforced thermoplastic material for friction coefficients below 0.06. The car door is a two-panel automatic type with a 150W synchronous motor, opening speeds of 0.3–0.8 m/s, and infrared safety sensors. The car roof features a 550x750 mm safety hatch supporting 130 kg weight and integrated 48V LED lighting with Color Rendering Index CRI above 85. The floor int

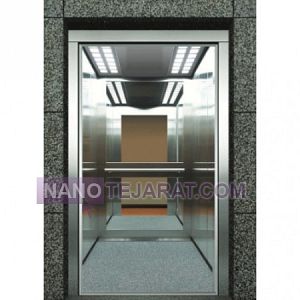

elevator cabin

The elevator car is constructed from aluminum composite panels with high-density polyethylene core or galvanized steel sheets, 2–4 mm thick. Standard internal dimensions range from 1100x1400 mm to 2400x2800 mm with ceiling heights of 2200–2800 mm. Load capacity varies from 450 to 6300 kg, designed with a 1.25 safety factor per EN 81-20 standards. The car floor uses porcelain ceramic tiles 10 mm thick with anti-slip coating achieving a friction coefficient of 0.8. Interior walls are clad with 316Ti stainless steel sheets 1.5–3 mm thick featuring brushed or patterned finishes. All joints utilize A4-80 marine-grade stainless steel bolts and silicone elastomer seals to reduce noise below 20 decibels.

The car frame consists of welded steel profiles with 355 MPa yield strength and 80-micron polyurethane epoxy coating. The suspension system includes four to twelve guide shoes with carbon-reinforced PTFE composite material for friction coefficients below 0.05. The car door is a two-panel automatic type with a 180W synchronous motor, opening speeds of 0.3–0.75 m/s, and 3D laser safety sensors. The car roof features a 700x900 mm safety hatch supporting 250 kg weight and integrated 56V LED lighting with adjustable color temperature 2700–6500 Kelvin. The floor integrates load ce

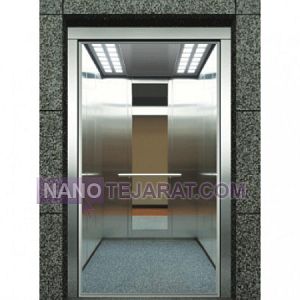

elevator cabin

The elevator car is constructed from aluminum composite panels with high-density polyethylene core or pre-painted galvanized steel, 2–5 mm thick. Standard internal dimensions range from 1100x1400 mm to 2600x3000 mm with ceiling heights of 2200–3000 mm. Load capacity varies from 450 to 5000 kg, designed with a 1.25 safety factor per EN 81-20 standards. The car floor uses porcelain ceramic tiles 10 mm thick with anti-slip coating achieving a friction coefficient of 0.85. Interior walls are clad with 316L stainless steel sheets 1.5–3 mm thick featuring mirror bead-blasted or patterned finishes. All joints utilize A2-70 stainless steel bolts and silicone sealants with thermal resistance from –250°C to +300°C.

The car frame consists of welded steel profiles with 355 MPa yield strength and 60-micron electrostatic epoxy coating. The suspension system includes four to eight guide shoes with graphite-reinforced polyamide low-friction material coefficient 0.05. The car door is a two-panel automatic type with a 160W synchronous motor, opening speeds of 0.4–0.8 m/s, and infrared safety sensors. The car roof features a 600x800 mm safety hatch supporting 150 kg weight and integrated 36V LED lighting with Color Rendering Index CRI above 95. The floor integrates load cells with ±

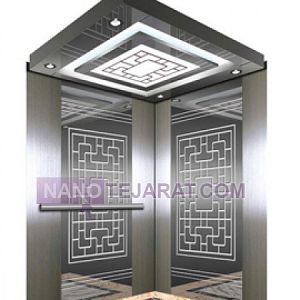

Elevator cabin

The elevator car is constructed from aluminum composite panels with high-density polyethylene HDPE core or pre-painted galvanized steel, 2–4 mm thick. Standard internal dimensions range from 1100x1400 mm to 2400x2800 mm with ceiling heights of 2200–2800 mm. Load capacity varies from 450 to 3000 kg, designed with a 1.25 safety factor per EN 81-20 standards. The car floor uses porcelain ceramic tiles 10 mm thick with anti-slip coating achieving a friction coefficient of 0.75. Interior walls are clad with 316L stainless steel sheets 1.5 mm thick featuring mirror bead-blasted or patterned finishes. All joints utilize A2-70 stainless steel bolts and silicone sealants with thermal resistance from –40°C to +250°C.

The car frame consists of welded steel profiles with 355 MPa yield strength and 80-micron electrostatic epoxy coating. The suspension system includes four to six guide shoes with graphite-reinforced polyamide low-friction material coefficient 0.05. The car door is a two-panel automatic type with a 140W synchronous motor, opening speeds of 0.35–0.75 m/s, and infrared safety sensors. The car roof features a 600x800 mm safety hatch supporting 120 kg weight and integrated 36V LED lighting with Color Rendering Index CRI above 90. The floor integrates load cells with ±

Elevator cabin

The elevator car is constructed from aluminum composite panels with high-density polyethylene core or pre-painted galvanized steel, 2–4 mm thick. Standard internal dimensions range from 1100x1400 mm to 2400x2700 mm with ceiling heights of 2200–2800 mm. Load capacity varies from 450 to 3000 kg, designed with a 1.25 safety factor per EN 81-20 standards. The car floor uses porcelain ceramic tiles 8 mm thick with anti-slip coating achieving a friction coefficient of 0.8. Interior walls are clad with 316L stainless steel sheets 1.5 mm thick featuring mirror bead-blasted or patterned finishes. All joints utilize A2-70 stainless steel bolts and silicone sealants with thermal resistance from –250°C to +300°C.

The car frame consists of welded steel profiles with 355 MPa yield strength and 60-micron electrostatic epoxy coating. The suspension system includes four to six guide shoes with graphite-reinforced polyamide low-friction material coefficient 0.05. The car door is a two-panel automatic type with a 140W synchronous motor, opening speeds of 0.35–0.75 m/s, and infrared safety sensors. The car roof features a 600x800 mm safety hatch supporting 120 kg weight and integrated 36V LED lighting with Color Rendering Index CRI above 90. The floor integrates load cells with ±0.25%

Elevator cabin

The elevator car is constructed from aluminum composite panels with high-density polyethylene core or pre-painted galvanized steel, 2–4 mm thick. Standard internal dimensions range from 1100x1400 mm to 2400x2700 mm with ceiling heights of 2200–2800 mm. Load capacity varies from 450 to 3000 kg, designed with a 1.25 safety factor per EN 81-20 standards. The car floor uses porcelain ceramic tiles 8 mm thick with anti-slip coating achieving a friction coefficient of 0.8. Interior walls are clad with 316L stainless steel sheets 1.5 mm thick featuring mirror bead-blasted or patterned finishes. All joints utilize A2-70 stainless steel bolts and silicone sealants with thermal resistance from –250°C to +300°C.

The car frame consists of welded steel profiles with 355 MPa yield strength and 60-micron electrostatic epoxy coating. The suspension system includes four to six guide shoes with graphite-reinforced polyamide low-friction material coefficient 0.05. The car door is a two-panel automatic type with a 140W synchronous motor, opening speeds of 0.35–0.75 m/s, and infrared safety sensors. The car roof features a 600x800 mm safety hatch supporting 120 kg weight and integrated 36V LED lighting with Color Rendering Index CRI above 90. The floor integrates load cells with ±0.25%

11mm elevator rope

The 11 mm Chinese-made elevator wire rope with fiber core is designed for light to medium-duty lifting systems. It is typically manufactured in a 6x19 or 6x37 construction, consisting of six strands with 19 or 37 wires per strand. The nominal diameter of 11 millimeters provides a tensile strength between 65 and 75 kilonewtons, making it suitable for elevator cabins carrying up to 900 kilograms in 2:1 suspension systems. The fiber core at the center increases flexibility, reduces friction, minimizes cabin vibrations, and enhances smooth operation and service life of the rope.

The approximate weight per meter of the 11 mm wire rope ranges from 0.50 to 0.53 kilograms, and it is recommended for sheaves with a minimum diameter of 420 millimeters. The WLL Working Load Limit is approximately 500 to 600 kilograms, while the MBL Maximum Breaking Load ranges from 42 to 50 kilonewtons. These specifications ensure safe and reliable performance under continuous operation and intermittent loading, reducing the risk of damage due to excessive tension.

The outer wires of the 11 mm elevator wire rope are made of carbon steel with tensile strengths between 1570 and 1770 N/mm², providing high wear resistance. Elongation under tensile load is around 2 to 2.5 percent, and the recommended safet

Elevator control board.

The elevator control panel is constructed from 1.5–2.5 mm thick galvanized steel or stainless steel metal sheets. Standard dimensions range from 800x600x200 mm to 1200x800x300 mm with IP54 protection rating for dusty and humid environments. The control system utilizes PLC or microprocessor-based technology with 32-bit processors, 1 GB memory, and 1000 command/sec processing capacity. The panel incorporates a Variable Frequency Drive VFD with 5.5–60 kW power range and 0.01% speed control accuracy. Communication modules include industrial Ethernet Profinet/EtherCAT, CANopen protocol, and RS-485 connectivity for Building Management System BMS integration. All equipment is certified per IEC 60364, EN 81-20, and UL 508A standards.

Internal structure comprises power supply section 380-480VAC three-phase input, control unit, and motor drive section. The system includes circuit breakers 10–200A range, overload relays, and surge protection devices. A touchscreen HMI display 7–15 inches, 1280x800 pixels with 100,000 event logging capability is installed. Integrated sensors include current monitoring CT sensors ±0.5% accuracy, motor temperature monitoring, and encoders with 1024 pulses/revolution resolution. The system features automatic self-diagnostics with 200 error codes and

MRL elevator

MRL elevators utilize a gearless Permanent Magnet Synchronous Motor PMSM with 5.5 to 18 kW power output. The motor is installed directly in the hoistway overhead, eliminating the need for a separate machine room. Travel speeds range from 0.5 to 4 m/s with adjustable stopping accuracy of ±3 mm. Cabin capacity spans 450 to 2000 kg for 6 to 26 passengers, designed with a 1.25 safety factor. The control system employs inverter drives with regenerative energy recovery and 95% overall efficiency. Energy consumption complies with ISO 25745-1 Class A++ standards, using 30% less energy than conventional models. All components are certified per EN 81-20/50, ASME A17.1, and ISO 22201-1 standards.

The compact structure integrates the motor directly with the traction sheave and 2:1 or 1:1 suspension systems. The cabin is constructed from lightweight aluminum panels with 40 dB acoustic insulation and Class A fire-resistant coating. Safety systems include electromagnetic safety brakes, overspeed governors, and 3D laser sensors. Automatic doors feature 120W synchronous motors and 5 mm obstacle detection capabilities. Guide rails use KP100 steel with 150 Brinell hardness and 80-micron hot-dip galvanized coating. Installation and maintenance employ IoT monitoring systems and predictive mainten

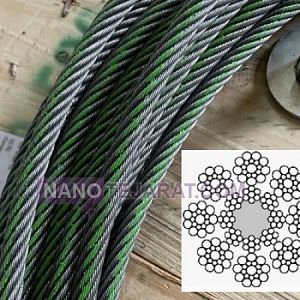

Elevatore Steel Wire Rope 6.5 mm 8x19

Import, production and distribution of all kinds of steel rope tow wire suitable for Gearless elevators in Kariz industrial equipment.

Steel ropes for gearless elevators are made with 8x19 structure and steel core and are used in sizes 6.5-8-10-11-12-13.
The responsibility wire ropes available in Kariz industrial equipment are manufactured by reputable European, Chinese and Iranian companies, some of which are mentioned below.
Gustavwolf elevator towing wire made in Germany
Bezabala elevator towing wire made in Spain
Ushamartin elevator towing wire made in India
Kiswire elevator towing wire made in Korea
Gustavwolf designed elevator towing cable made in China
Elevator tow wire of the green line, Gustavwolf design, made in China
Elevator tow wire made by reputable Iranian companies

Towing wire - steel rope
Size: 6.5-8-10-11-12-13 mm
Structure: 19 x 8 Warrington Seal
Core: Steel
Circulation: right-handed - left-handed
Grade: 1570 - 1770 N/mm2
Steel Wire Rope
Size: 6.5-8-10-11-12-13 mm
Structure: 8*19 - Warrington-Seale
Core: IWRC
Lay: RHOL – LHOL
Tensile: 1570 - 1770 N/mm2

Steel core elevator towing wire, structure 8*19, size 6.8
Steel core elevator towing wire, structure 8*19, size 8
Steel core elevator towing wire, structure 8*19, size 10
Steel co

Elevatore Steel Wire Rope 8 mm 8x19

Import, production and distribution of all kinds of steel rope tow wire suitable for Gearless elevators in Kariz industrial equipment.

Steel ropes for gearless elevators are made with 8x19 structure and steel core and are used in sizes 6.5-8-10-11-12-13.
The responsibility wire ropes available in Kariz industrial equipment are manufactured by reputable European, Chinese and Iranian companies, some of which are mentioned below.
Gustavwolf elevator towing wire made in Germany
Bezabala elevator towing wire made in Spain
Ushamartin elevator towing wire made in India
Kiswire elevator towing wire made in Korea
Gustavwolf designed elevator towing cable made in China
Elevator tow wire of the green line, Gustavwolf design, made in China
Elevator tow wire made by reputable Iranian companies

Towing wire - steel rope
Size: 6.5-8-10-11-12-13 mm
Structure: 19 x 8 Warrington Seal
Core: Steel
Circulation: right-handed - left-handed
Grade: 1570 - 1770 N/mm2
Steel Wire Rope
Size: 6.5-8-10-11-12-13 mm
Structure: 8*19 - Warrington-Seale
Core: IWRC
Lay: RHOL – LHOL
Tensile: 1570 - 1770 N/mm2

Steel core elevator towing wire, structure 8*19, size 6.8
Steel core elevator towing wire, structure 8*19, size 8
Steel core elevator towing wire, structure 8*19, size 10
Steel co

Elevatore Steel Wire Rope 10 mm 8x19

Import, production and distribution of all kinds of steel rope tow wire suitable for Gearless elevators in Kariz industrial equipment.

Steel ropes for gearless elevators are made with 8x19 structure and steel core and are used in sizes 6.5-8-10-11-12-13.
The responsibility wire ropes available in Kariz industrial equipment are manufactured by reputable European, Chinese and Iranian companies, some of which are mentioned below.
Gustavwolf elevator towing wire made in Germany
Bezabala elevator towing wire made in Spain
Ushamartin elevator towing wire made in India
Kiswire elevator towing wire made in Korea
Gustavwolf designed elevator towing cable made in China
Elevator tow wire of the green line, Gustavwolf design, made in China
Elevator tow wire made by reputable Iranian companies

Towing wire - steel rope
Size: 6.5-8-10-11-12-13 mm
Structure: 19 x 8 Warrington Seal
Core: Steel
Circulation: right-handed - left-handed
Grade: 1570 - 1770 N/mm2
Steel Wire Rope
Size: 6.5-8-10-11-12-13 mm
Structure: 8*19 - Warrington-Seale
Core: IWRC
Lay: RHOL – LHOL
Tensile: 1570 - 1770 N/mm2

Steel core elevator towing wire, structure 8*19, size 6.8
Steel core elevator towing wire, structure 8*19, size 8
Steel core elevator towing wire, structure 8*19, size 10
Steel co

Elevatore Steel Wire Rope 11 mm 8x19

Import, production and distribution of all kinds of steel rope tow wire suitable for Gearless elevators in Kariz industrial equipment.

Steel ropes for gearless elevators are made with 8x19 structure and steel core and are used in sizes 6.5-8-10-11-12-13.
The responsibility wire ropes available in Kariz industrial equipment are manufactured by reputable European, Chinese and Iranian companies, some of which are mentioned below.
Gustavwolf elevator towing wire made in Germany
Bezabala elevator towing wire made in Spain
Ushamartin elevator towing wire made in India
Kiswire elevator towing wire made in Korea
Gustavwolf designed elevator towing cable made in China
Elevator tow wire of the green line, Gustavwolf design, made in China
Elevator tow wire made by reputable Iranian companies

Towing wire - steel rope
Size: 6.5-8-10-11-12-13 mm
Structure: 19 x 8 Warrington Seal
Core: Steel
Circulation: right-handed - left-handed
Grade: 1570 - 1770 N/mm2
Steel Wire Rope
Size: 6.5-8-10-11-12-13 mm
Structure: 8*19 - Warrington-Seale
Core: IWRC
Lay: RHOL – LHOL
Tensile: 1570 - 1770 N/mm2

Steel core elevator towing wire, structure 8*19, size 6.8
Steel core elevator towing wire, structure 8*19, size 8
Steel core elevator towing wire, structure 8*19, size 10
Steel co
