Vertex

vertex general agent

**English Translation:**

Maaref Abzar Company is the **sole official representative of Vertex Taiwan in Iran**.
You can purchase a full range of **original Vertex tools and products**, including **all sizes of original Vertex hydraulic vises** and **original Vertex turning tools**, exclusively from the official representative, **Maaref Abzar Company**, under the management of **Mr. Safari**.

Maaref Abzar Company is ready to **sign supply contracts**, **handle order registration**, and **deliver all types of Vertex Taiwan tools nationwide across Iran**.

### Types of Vertex Tools for Machining and Turning

#### 1️⃣ Vertex Turning Tool Holders

* External turning holders
* Internal boring holders
* Grooving holders
* Compatible with standard inserts CNMG, TNMG, etc.
* High precision and long service life

#### 2️⃣ Vertex Vises and Chucks

* Manual and hydraulic chucks
* High-precision milling and lathe vises

#### 3️⃣ Vertex Measuring Instruments

* Dial indicators
* Calipers and indicator stands

#### 4️⃣ Machine Tool Accessories

* Dividing heads
* Rotary tables
* Tailstocks, fixtures, and tool holders

Vertex VHO Model Hydraulic Milling Machine Vise

The Vertex VHO model hydraulic milling machine vise is engineered for industrial use with high precision, ensuring secure workpiece holding during heavy-duty machining operations. This vise features a 160 mm jaw width and a maximum clamping force of 3200 kg. The main body is constructed from high-strength ductile cast iron, providing excellent mechanical resistance and long service life. The fixed jaw height is 50 mm, with a maximum jaw opening of 200 mm. The internal hydraulic system applies uniform pressure across the workpiece surface, minimizing unwanted deformation. Its design without a swivel base ensures high stability for workpieces under heavy loads.

The overall dimensions of the VHO vise are 460 mm in length and 180 mm in width, with an approximate weight of 30 kg. Jaw parallelism accuracy is maintained at around 0.01 mm, enabling precise and repeatable machining operations. The hydraulic mechanism reduces operator hand force and extends cutting tool life. Installation on standard milling tables is possible without complex adjustments. Optimized design increases rigidity and reduces vibration during cutting processes.

Vertex Universal 2-Axis Sine Hydraulic Milling Machine Vise, Model VHT-U

The Vertex Universal 2-Axis Hydraulic Sine Milling Machine Vise, model VHT-U, is engineered for securely holding workpieces during complex and precise machining operations. This vise features a 160 mm jaw width and a maximum clamping force of 3500 kg, capable of safely securing irregularly shaped and round workpieces. The body is made from high-strength ductile cast iron, providing excellent mechanical resistance and long service life. The fixed jaw height is 55 mm, with a maximum jaw opening of 210 mm. The sine-shaped jaws ensure uniform contact with the workpiece and reduce slippage during machining.

The overall dimensions of the VHT-U vise are 480 mm in length, 200 mm in width, and it weighs approximately 35 kg. Jaw parallelism accuracy is maintained at around 0.01 mm for precise and repeatable machining operations. The two-axis hydraulic mechanism guarantees uniform pressure and reduces operator hand effort. Full 360-degree rotation and adjustable jaw angles provide high flexibility for holding complex workpieces while ensuring stability under heavy loads.

Vertex 2-Axis Sine Hydraulic Milling Machine Vise, Model VHT

The Vertex 2-Axis Sine Hydraulic Milling Machine Vise, model VHT, is engineered for precise machining and secure holding of heavy workpieces. This vise features a 160 mm jaw width and a maximum clamping force of 3400 kg. The main body is made from high-strength ductile cast iron, ensuring excellent mechanical resistance and long service life. The fixed jaw height is 50 mm, with a maximum jaw opening of 200 mm. The sine-shaped jaws provide uniform contact with the workpiece, minimizing slippage during machining. The internal hydraulic system applies consistent pressure and reduces unwanted deformation.

The overall dimensions of the VHT vise are 470 mm in length and 190 mm in width, with an approximate weight of 32 kg. Jaw parallelism accuracy is maintained at around 0.01 mm for precise and repeatable machining operations. The two-axis hydraulic mechanism ensures uniform clamping force and reduces operator hand effort. Adjustable jaw angles and rotation offer high flexibility for holding complex-shaped workpieces, while maintaining stability under heavy loads.

Hydraulic Milling Machine Vise Vertex Without Swivel Base Model VH-6-1

The Vertex hydraulic milling machine vise model VH-6-1 without swivel base is designed with a 160 mm jaw width and is suitable for precision machining operations. The clamping force of this vise reaches up to 3000 kg, while the internal hydraulic system ensures uniform pressure distribution. The main body is made of durable ductile cast iron, providing high resistance against vibration and deformation under heavy loads. The fixed jaw height is 45 mm and the maximum jaw opening is 200 mm, which allows flexibility in holding various workpieces.

This vise, with an overall length of 450 mm and an approximate weight of 28 kg, is suitable for installation on standard milling tables. The parallelism accuracy of the jaws is maintained at about 0.01 mm, minimizing alignment errors. The internal hydraulic mechanism reduces operator hand force while extending cutting tool life. The design without a swivel base increases vise rigidity and ensures greater stability of the workpiece during heavy-duty machining operations.

Vertex VH Model Hydraulic Milling Machine Vise

The Vertex VH model hydraulic milling machine vise is designed for industrial use with high precision to securely hold workpieces during heavy machining operations. This vise offers jaw widths ranging from 100 to 200 mm depending on the selected size, and its maximum clamping force reaches approximately 3000 kg. The internal hydraulic system ensures uniform pressure distribution across the workpiece surface, minimizing unwanted deformation. The main body is manufactured from high-strength ductile cast iron, providing excellent mechanical resistance and extended service life.

The overall dimensions of this vise vary between 400 and 500 mm depending on the jaw size, with a weight range of 25 to 35 kg. Jaw parallelism accuracy is maintained at around 0.01 mm, which is critical for precise and repeatable machining. The vise is available with or without a swivel base, offering either maximum rigidity or added flexibility depending on specific machining requirements.

Vertex VH Model Hydraulic Milling Machine Vise

The Vertex VH model hydraulic milling machine vise is designed for industrial use with high precision to securely hold workpieces during heavy machining operations. This vise offers jaw widths ranging from 100 to 200 mm depending on the selected size, and its maximum clamping force reaches approximately 3000 kg. The internal hydraulic system ensures uniform pressure distribution across the workpiece surface, minimizing unwanted deformation. The main body is manufactured from high-strength ductile cast iron, providing excellent mechanical resistance and extended service life.

The overall dimensions of this vise vary between 400 and 500 mm depending on the jaw size, with a weight range of 25 to 35 kg. Jaw parallelism accuracy is maintained at around 0.01 mm, which is critical for precise and repeatable machining. The vise is available with or without a swivel base, offering either maximum rigidity or added flexibility depending on specific machining requirements.

VERTEX ANGLE MILLING VISE

VERTEX ANGLE MILLING VISE | it clamps workpiece on Milling Machine CNC on option angle and VW-4 Angle VERTEX Vise and VWT-5 VERTEX machine Vise and VWT-6A VERTEX VISE and VWT-6B VERTEX Vise that it is more long than VWT-4B and VERTEX company made some angle hydraulic Vise that they clear with VHT-4U VERTEX vise and VHT-6U VERTEX hydraulic vise and VHT-4 vise and VHT-6 hydraulic Vise that MOARREF TOOLS COMPANY provide all VERTEX productions and MOARREF TOOLS COMPANY is VERTEX distributor in IRAN

VH-5 vertex Hydraulic Vise.

VH-5 Vise VERTEX Hydraulic | VERTEX Company made some accessories for Milling Machine.for example VH-5 VERTEX Hydraulic Vise is the important VERTEX product and Moarref Tools Company provide VH-5 VERTEX VIse in IRan. VH-5 Vise VERTEX has optinal accessories for example if you want to can buy VH-5 VERTEX Vise with Swivel base

VH-5 vertex Hydraulic Vise.

VH-5 Vise VERTEX Hydraulic | VERTEX Company made some accessories for Milling Machine.for example VH-5 VERTEX Hydraulic Vise is the important VERTEX product and Moarref Tools Company provide VH-5 VERTEX VIse in IRan. VH-5 Vise VERTEX has optinal accessories for example if you want to can buy VH-5 VERTEX Vise with Swivel base

VH-6L VERTEX Hydraulic Vise

VH-6L VERTEX Hydraulic Vise | in this part we introduce a new hydraulic Vise. VH-6L VERTEX Vise is a new Vise that VERTEX Company product it. VH-6l is look like VH-6 but VH-6L open 375mm. Moarref Tools provide VH-6 VERTEX Vise and VH-6L VERTEX Vise

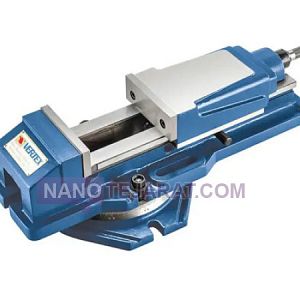

Hydraulic Vise VH-4 vertex

VH-4 VERTEX Hydraulic Vise | VH-4 Vise VERTEX is the smallest Vise hydraulic. VERTEX Company sale productions by Moarref Tools company. VH-4 Vise hydraulic open 170 mm and VH-4 is useable on Drilling Machine OPTIMUM and CNC Milling Machine

VH-6 VERTEX Hydraulic Vise

VH-6 VERTEX Hydraulic Vise | VERTEX Company product VH-6 Hydraulic Vise that Vh-6 Vise use on Table of Milling Machine CNC Moarref Tools company. VH-6 Vise VERTEX open 300mm. VH-6 VERTEX Vise hold workpiece with hydraulic force

VH-8 VERTEX Hydraulic Vise

VH-8 VERTEX Hydraulic Vise | VH-8 Vise VERTEX is larger than VH-6 VERTEX but VH-8 VERTEX Vise and VH-6 VERTEX hydraulic Vise open 300 mm. but VH-8 VERTEX Vise is wider than VH-6 VERTEX Vise

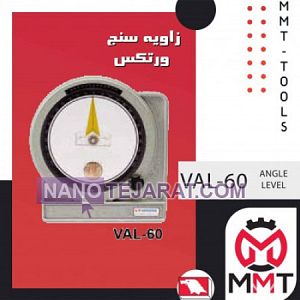

Vertex protractor
