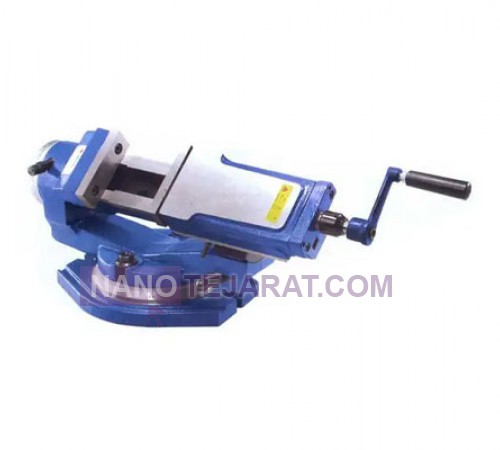

Vertex Universal 2-Axis Sine Hydraulic Milling Machine Vise, Model VHT-U

• Application : فرزکاری
• Size : با عرض فک 4 و 6 اینچ
• Machinery : تراشکاری , CNC , NC

The Vertex Universal 2-Axis Hydraulic Sine Milling Machine Vise, model VHT-U, is engineered for securely holding workpieces during complex and precise machining operations. This vise features a 160 mm jaw width and a maximum clamping force of 3500 kg, capable of safely securing irregularly shaped and round workpieces. The body is made from high-strength ductile cast iron, providing excellent mechanical resistance and long service life. The fixed jaw height is 55 mm, with a maximum jaw opening of 210 mm. The sine-shaped jaws ensure uniform contact with the workpiece and reduce slippage during machining.

The overall dimensions of the VHT-U vise are 480 mm in length, 200 mm in width, and it weighs approximately 35 kg. Jaw parallelism accuracy is maintained at around 0.01 mm for precise and repeatable machining operations. The two-axis hydraulic mechanism guarantees uniform pressure and reduces operator hand effort. Full 360-degree rotation and adjustable jaw angles provide high flexibility for holding complex workpieces while ensuring stability under heavy loads.
