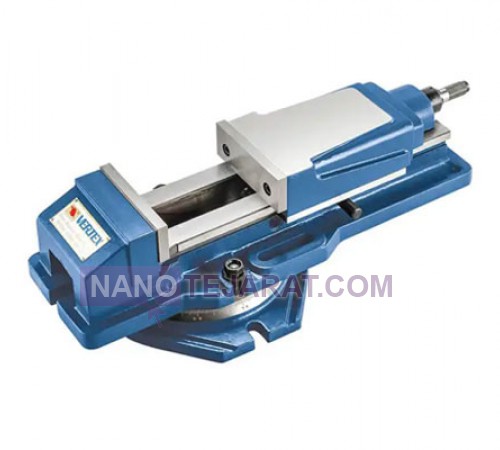

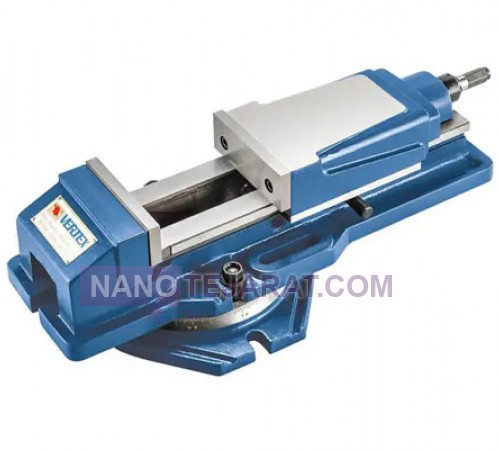

Vertex VH Model Hydraulic Milling Machine Vise

• Application : فرزکاری
• Size : پهنای فک 4, 5, 6, 8, 12 اینچ
• Machinery : تراشکاری , CNC , NC

The Vertex VH model hydraulic milling machine vise is designed for industrial use with high precision to securely hold workpieces during heavy machining operations. This vise offers jaw widths ranging from 100 to 200 mm depending on the selected size, and its maximum clamping force reaches approximately 3000 kg. The internal hydraulic system ensures uniform pressure distribution across the workpiece surface, minimizing unwanted deformation. The main body is manufactured from high-strength ductile cast iron, providing excellent mechanical resistance and extended service life.

The overall dimensions of this vise vary between 400 and 500 mm depending on the jaw size, with a weight range of 25 to 35 kg. Jaw parallelism accuracy is maintained at around 0.01 mm, which is critical for precise and repeatable machining. The vise is available with or without a swivel base, offering either maximum rigidity or added flexibility depending on specific machining requirements.
