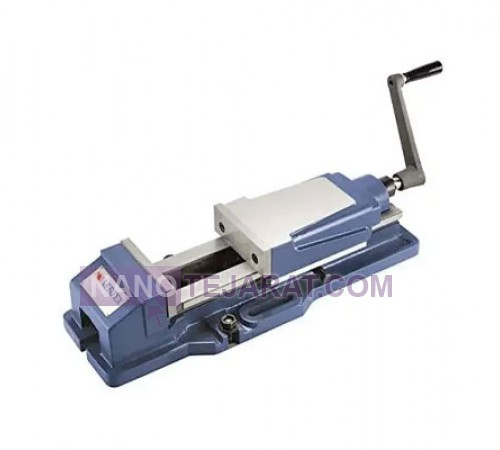

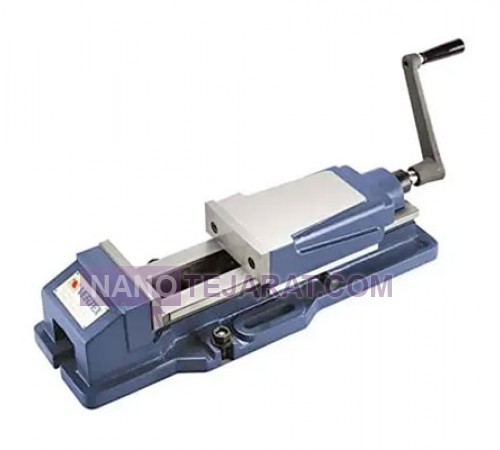

Hydraulic Milling Machine Vise Vertex Without Swivel Base Model VH-6-1

• Application : فرزکاری
• Size : پهنای فک 6 اینچ (151 میلی متر)
• Machinery : ورتکس VERTEX

The Vertex hydraulic milling machine vise model VH-6-1 without swivel base is designed with a 160 mm jaw width and is suitable for precision machining operations. The clamping force of this vise reaches up to 3000 kg, while the internal hydraulic system ensures uniform pressure distribution. The main body is made of durable ductile cast iron, providing high resistance against vibration and deformation under heavy loads. The fixed jaw height is 45 mm and the maximum jaw opening is 200 mm, which allows flexibility in holding various workpieces.

This vise, with an overall length of 450 mm and an approximate weight of 28 kg, is suitable for installation on standard milling tables. The parallelism accuracy of the jaws is maintained at about 0.01 mm, minimizing alignment errors. The internal hydraulic mechanism reduces operator hand force while extending cutting tool life. The design without a swivel base increases vise rigidity and ensures greater stability of the workpiece during heavy-duty machining operations.
