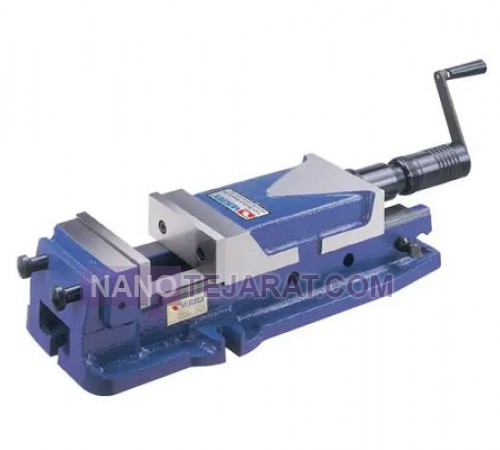

Vertex VHO Model Hydraulic Milling Machine Vise

• Application : فرزکاری
• Size : عرض فک 5 تا 8 اینچ (13 تا 20 سانتی متر)
• Machinery : تراشکاری , CNC , NC

The Vertex VHO model hydraulic milling machine vise is engineered for industrial use with high precision, ensuring secure workpiece holding during heavy-duty machining operations. This vise features a 160 mm jaw width and a maximum clamping force of 3200 kg. The main body is constructed from high-strength ductile cast iron, providing excellent mechanical resistance and long service life. The fixed jaw height is 50 mm, with a maximum jaw opening of 200 mm. The internal hydraulic system applies uniform pressure across the workpiece surface, minimizing unwanted deformation. Its design without a swivel base ensures high stability for workpieces under heavy loads.

The overall dimensions of the VHO vise are 460 mm in length and 180 mm in width, with an approximate weight of 30 kg. Jaw parallelism accuracy is maintained at around 0.01 mm, enabling precise and repeatable machining operations. The hydraulic mechanism reduces operator hand force and extends cutting tool life. Installation on standard milling tables is possible without complex adjustments. Optimized design increases rigidity and reduces vibration during cutting processes.
