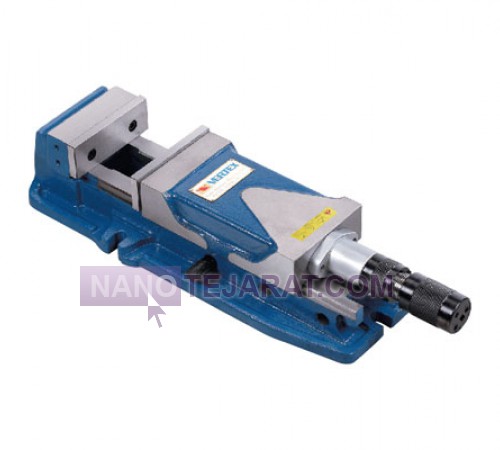

Vertex 2-Axis Sine Hydraulic Milling Machine Vise, Model VHT

The Vertex 2-Axis Sine Hydraulic Milling Machine Vise, model VHT, is engineered for precise machining and secure holding of heavy workpieces. This vise features a 160 mm jaw width and a maximum clamping force of 3400 kg. The main body is made from high-strength ductile cast iron, ensuring excellent mechanical resistance and long service life. The fixed jaw height is 50 mm, with a maximum jaw opening of 200 mm. The sine-shaped jaws provide uniform contact with the workpiece, minimizing slippage during machining. The internal hydraulic system applies consistent pressure and reduces unwanted deformation.

The overall dimensions of the VHT vise are 470 mm in length and 190 mm in width, with an approximate weight of 32 kg. Jaw parallelism accuracy is maintained at around 0.01 mm for precise and repeatable machining operations. The two-axis hydraulic mechanism ensures uniform clamping force and reduces operator hand effort. Adjustable jaw angles and rotation offer high flexibility for holding complex-shaped workpieces, while maintaining stability under heavy loads.
