Volvo loader L90 and L120 gasket

The hydraulic cylinder gasket in Volvo L90 and Volvo L120 is installed at the rod gland area of the cylinder head. It remains in direct contact with the chrome plated piston rod. The primary function is to prevent dust, mud, sand, and abrasive particles from entering the hydraulic cylinder. The inner diameter typically ranges from 70 mm to 120 mm depending on lift or tilt cylinder size. Cross section width is generally between 10 mm and 20 mm. Groove tolerance is commonly manufactured to H9 class for proper press fit. Maximum rod linear speed can reach 0.5 m per second. The wiping lip is designed with single or double lip geometry at approximately 15 degree contact angle for effective contaminant removal.

The Volvo loader cylinder wiper seal gasket is commonly manufactured from polyurethane PU with hardness between 90 and 95 Shore A. In specific applications, reinforced NBR compounds may also be used. Standard polyurethane operates within a temperature range of minus 30 to plus 100 degrees Celsius. PU provides significantly higher abrasion resistance compared to conventional rubber materials. Although the wiper seal is not pressure bearing, it must withstand oil splash exposure up to 5 bar. The piston rod surface roughness should be below Ra 0.4 microns to minimize wear. Prop

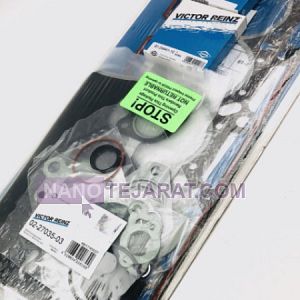

Deutz engine 1011 1012 and 1013 gasket kit

The cylinder head gasket kit for DEUTZ 912, 1011, 1012, and 1013 engines is made of multi-layer steel designed to withstand cylinder pressures up to 180 bar. Its standard thickness ranges between 1.2 and 1.5 millimeters, capable of operating at temperatures up to 300°C. The gaskets multi-layer construction with reinforced metal rings prevents gas and coolant leakage, maintaining optimal compression ratios. Its geometry is engineered to distribute pressure evenly and resist bending or deformation caused by thermal cycles. This precise design ensures durability and reliable engine performance under heavy-duty conditions.

Each cylinder head gasket for the 912, 1011, 1012, and 1013 series features accurately positioned holes for bolts, oil, and coolant passages, with tolerances of ±0.05 mm. These gaskets offer over 2000 hours of service life, reducing the need for early replacement due to wear or corrosion. Optimal gasket performance improves combustion efficiency and can reduce fuel consumption by up to 3%. Furthermore, it minimizes uneven pressure on the cylinder block and head, enhancing overall engine longevity and reliability.

gasket kit

A full gasket set is a collection of mechanical sealing components used to prevent leakage of fluids, gases, and pressure in different engine sections. The set includes cylinder head gaskets, manifold gaskets, oil pan gaskets, O rings, and rubber seals. These components are typically made from multilayer steel MLS, reinforced graphite, heat resistant fibers, or thermal resistant elastomers. Their thermal resistance ranges from 150 to 400 degrees Celsius, with pressure tolerance up to 200 bar. Gasket thickness ranges from 0.5 to 3 mm, ensuring precise sealing performance.

Structurally, the full gasket set is manufactured using precision cutting technology and corrosion resistant coatings to ensure long term durability. Controlled thermal expansion prevents deformation at high temperatures. The multilayer design and finished surfaces provide uniform pressure distribution and reduced leakage. This set is used in light and heavy gasoline and diesel engines, maintaining optimal combustion and lubrication performance. Oil and fuel resistant materials extend component service life.

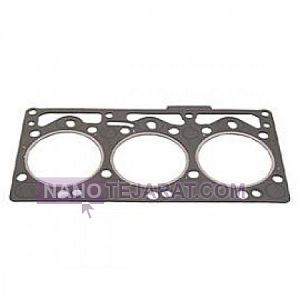

6BT oversized cylinder head gasket

The 6BT oversized cylinder head gasket is designed with a 102 mm inner diameter and 1.2 mm thickness. The core is multilayer steel with nickel coating and a heat-resistant elastomer layer up to 300°C. The cylinder contact surface is machined with 0.02 mm precision and withstands combustion pressures up to 120 bar. Reinforcing steel rings are included around cylinder and oil holes, providing tensile strength over 500 N/mm². Thermal resistance ranges from -40 to 300°C, and vibration stability is ensured up to 15g.

This gasket is designed for 6-cylinder 6BT diesel engines, with oversize dimensions increasing cylinder lifespan. Chemical resistance against oil, fuel, and coolant is high, with plastic deformation under 0.05 mm. Oil and water hole dimensions comply with OEM standards, allowing quick installation with M10 bolts. Sealing efficiency exceeds 98 percent, and service life under severe thermal cycling exceeds 200,000 km. All components are ISO 9001 compliant and successfully pass pressure and temperature tests.

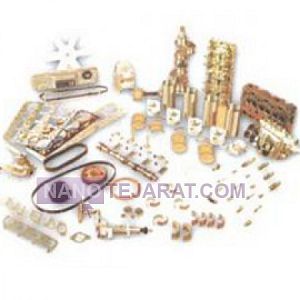

Engine components including bushings, pistons, bearings, and complete gaskets

Engine components including bushings, pistons, bearings, and complete gaskets are made of alloy steel and cast aluminum with heat treatment and surface hardening. Piston diameters range from 70 to 150 millimeters with a stroke of 60 to 180 millimeters, designed for operating temperatures up to 250°C and combustion pressures up to 100 bar. Bearings are designed for dynamic loads of 5 to 50 tons and lubricated with 10W-40 engine oil. Gaskets are made of copper or steel with nickel coating to prevent oil and water leakage up to 10 bar.

Bushings and pistons are manufactured with dimensional accuracy of 0.01 millimeters and inspected using non-destructive testing including ultrasonic and dye penetrant methods. Piston surfaces are coated with nickel-phosphorus or graphite to reduce friction and extend service life up to 8,000 hours. Assembly follows ISO 9001 and DIN 17005 standards, ensuring reliable piston and bearing performance under high temperature and pressure conditions.

Gasket

A complete gasket is a sealing component placed between two metal surfaces in engines or industrial machines to prevent oil, water, or gas leakage. Materials are typically steel alloys with copper coating or heat-resistant rubber such as NBR or silicone, capable of withstanding 200–300°C and 10–30 bar pressure. Thickness ranges from 0.5 to 3 mm, with dimensional accuracy controlled to 0.01 mm. Hole and groove design follows OEM standards, ensuring uniform pressure distribution between metal surfaces.

Structurally, the complete gasket consists of reinforced metal layers, sealing rubber layers, and reinforcing strips. Contact surfaces are heat-treated and corrosion-resistant, providing service life over 50,000 km in automotive engines and 20,000 hours in industrial machines. The precise design prevents warping or fluid leakage, ensuring stable operation, reduced oil consumption, and extended equipment lifespan.

complete 1026BT gasket from Izumi Taiwan

The complete 1026BT gasket from Izumi Taiwan is made of stainless steel with multilayer fiber and silicon coatings, ensuring resistance to combustion pressure up to 55 bar and operating temperatures up to 320°C. The overall thickness is 1.6 mm, and the inner diameter is designed for the oversize cylinder, allowing precise installation and complete sealing. Cold pressing technology and reinforced edges enable the gasket to withstand radial and axial forces up to 12 kN per cylinder.

The gasket surface is coated with nickel and heat- and corrosion-resistant silicon. Hydrostatic pressure testing is performed at 1.5 times the standard operating pressure. Installation accuracy of 0.1 mm ensures zero gas or coolant leakage. The gasket is resistant to engine vibration and temperature variations from -40°C to 320°C, providing a service life of over 6 years under harsh industrial conditions.

1026BT oversize cylinder head gasket from Taiwan

The 1026BT oversize cylinder head gasket from Taiwan is made of stainless steel and multilayer fiber with nickel coating, ensuring resistance to combustion pressure up to 50 bar and operating temperatures up to 300°C. The inner diameter is 0.25 mm larger than the standard cylinder, with a total thickness of 1.5 mm for easy installation and complete sealing. Gasket edges are reinforced with cold pressing technology, withstanding radial and axial forces up to 10 kN per cylinder.

The gasket surface is coated with heat- and corrosion-resistant nickel and silicon. Hydrostatic pressure testing is performed at 1.5 times the standard operating pressure. Installation precision of 0.1 mm ensures zero gas and coolant leakage. Resistance to engine vibration and temperature variations from -40°C to 300°C is guaranteed, providing a service life of over 5 years under harsh industrial conditions.
