Butterfly Valve

Farab lever-operated lug butterfly valve model BVL16

The Farab lever-operated lug butterfly valve model BVL16 is designed for flow control and isolation in water, steam, and non-corrosive fluid pipelines. The body is made of ductile iron GGG40 with a nominal pressure rating of PN16, and the disc is manufactured from stainless steel or aluminum bronze alloy for high corrosion and wear resistance. The seat is made of EPDM or NBR for tight sealing, and the stainless steel shaft is supported by bronze bushings. The lug-style design allows direct installation between existing flanges, and the manual lever includes a locking mechanism. Operating temperature ranges from -10°C to 120°C, and the valve is rated for up to 16 bar pressure.

The Farab BVL16 butterfly valve features a lever mechanism with angle lock, allowing precise control of the disc opening and closing. The lug body design provides mechanical strength and facilitates installation in industrial pipelines. Smooth, precision-machined disc and seat surfaces minimize pressure drop and optimize flow. The replaceable seat ensures reliable sealing throughout the valve’s operational life. Each valve is hydrostatically and leakage tested according to API 598 standards to guarantee safety, long-term durability, and accurate performance in industrial flow systems.

Farab gear-operated lug butterfly valve model BLG16

The Farab gear-operated lug butterfly valve model BLG16 is designed for flow control and shutoff in water, steam, and industrial fluid pipelines. The body is made of ductile iron GGG40 with a nominal pressure rating of PN16, and the disc is stainless steel or aluminum bronze for high corrosion and wear resistance. The seat is EPDM or NBR, and the stainless steel shaft is supported by bronze bushings. The lug-style body allows installation between existing flanges, and the gear actuator reduces the manual torque required for operation. Operating temperature ranges from -10°C to 120°C, and the valve is rated for up to 16 bar.

The Farab BLG16 butterfly valve features a precision gear-operated mechanism that enables low-torque disc rotation in high-pressure lines. The gearbox allows accurate control of disc opening and closing, with a locking lever for position adjustment. Precision-machined disc and seat surfaces ensure minimal pressure drop and smooth flow. The replaceable seat provides reliable sealing throughout the valve’s service life. Each valve undergoes hydrostatic and leakage testing according to API 598 standards to guarantee safety, durability, and accurate performance in industrial applications.

Farab gear-operated lug butterfly valve model BLG150

The Farab gear-operated lug butterfly valve model BLG150 is designed for flow control and shutoff in water, steam, and industrial fluid pipelines. The body is made of ductile iron GGG40 with a Class 150 pressure rating, and the disc is stainless steel or aluminum bronze for high corrosion and wear resistance. The seat is EPDM or NBR, and the stainless steel shaft is supported by bronze bushings. The lug-style design allows installation between existing flanges, and the gear actuator reduces the operating torque in high-pressure lines. Operating temperature ranges from -10°C to 120°C, with pressure rating according to Class 150.

The Farab BLG150 butterfly valve features a precision gear mechanism that enables low-torque disc rotation in high-pressure pipelines. The gearbox provides accurate control of disc opening and closing, with a locking lever for position adjustment. Precision-machined disc and seat surfaces ensure minimal pressure drop and smooth flow. The replaceable seat guarantees tight sealing throughout the valve’s service life. Each valve undergoes hydrostatic and leakage testing according to API 598 standards to ensure safety, durability, and precise performance in industrial applications.

Farab lever-operated lug butterfly valve model BVL150

The Farab lever-operated lug butterfly valve model BVL150 is designed for flow control and shutoff in water, steam, and industrial fluid pipelines. The body is made of ductile iron GGG40 with a Class 150 pressure rating, and the disc is stainless steel or aluminum bronze for high corrosion and wear resistance. The seat is EPDM or NBR, and the steel shaft is supported by bronze bushings. The lug-style design allows installation between existing flanges, and the manual lever includes an angle lock for precise disc positioning. Operating temperature ranges from -10°C to 120°C, with pressure rating according to Class 150.

The Farab BVL150 butterfly valve features a lever mechanism with angle lock for precise control of disc opening and closing. The lug body provides high mechanical strength and facilitates installation in industrial pipelines. Precision-machined disc and seat surfaces minimize pressure drop and ensure smooth flow. The replaceable seat guarantees reliable sealing throughout the valve’s operational life. Each valve is hydrostatically and leakage tested according to API 598 standards to ensure safety, long-term durability, and accurate performance in industrial flow systems.

Farab lever-operated wafer butterfly valve model BVW16

The Farab lever-operated wafer butterfly valve model BVW16 is designed for regulating and isolating flow in water, air, and non-corrosive fluid systems. Its body is made of ductile iron GGG40 with a nominal pressure rating of PN16, and the disc is manufactured from aluminum bronze or stainless steel for superior wear and corrosion resistance. The seat is made of EPDM for tight shut-off, and the stainless steel shaft is supported by bronze bushings. The wafer-type body complies with EN 1092-2 and fits between various flange standards. The operating range covers -10°C to 120°C and pressures up to 16 bar.

The Farab BVW16 butterfly valve features a lever-operated mechanism with a locking position handle, allowing precise adjustment of the disc angle. The wafer body design reduces overall weight and simplifies installation in confined spaces. The smooth disc surface ensures minimal pressure loss during flow, while the replaceable seat provides reliable sealing under high pressure. Each valve is tested for hydrostatic pressure and leakage in accordance with API 598 standards to guarantee safe operation, long service life, and accurate performance in industrial flow systems.

Farab gear-operated wafer butterfly valve model BWG150

The Farab gear-operated wafer butterfly valve model BWG150 is designed for flow control and isolation in water, steam, and industrial fluid pipelines. The body is made of ductile iron GGG40 with a Class 150 pressure rating, and the disc is stainless steel or aluminum bronze for high corrosion and wear resistance. The seat is EPDM or NBR, and the steel shaft is supported by bronze bushings. The wafer-style body allows easy installation between standard flanges and reduces overall valve weight. Operating temperature ranges from -10°C to 120°C, with a pressure rating according to Class 150.

The Farab BWG150 butterfly valve features a gear-operated actuator that reduces the torque required to rotate the disc in high-pressure pipelines. The gearbox provides precise control of disc opening and closing, with a locking lever for position adjustment. The disc and seat surfaces are precision-machined to ensure minimal pressure drop. The replaceable seat guarantees tight sealing even under high Class 150 pressures. Each valve is hydrostatically and leakage tested according to API 598 standards to ensure safety, durability, and accurate performance in industrial applications.

Farab gear-operated wafer butterfly valve model BVG16

The Farab gear-operated wafer butterfly valve model BVG16 is designed for flow control and isolation in water, steam, and industrial fluid systems. Its body is made of ductile iron GGG40 with a nominal pressure rating of PN16, and the disc is stainless steel or aluminum bronze for high corrosion and wear resistance. The seat is EPDM or NBR, and the steel shaft is supported by bronze bushings. The wafer-style body allows easy installation between standard flanges and reduces overall valve weight. Operating temperature ranges from -10°C to 120°C, with a maximum pressure of 16 bar.

The Farab BVG16 butterfly valve features a gear-operated actuator that reduces the torque required to rotate the disc in high-pressure pipelines. The gearbox mechanism provides precise control of disc opening and closing, and the locking lever allows position adjustment. The disc and seat surfaces are precision-machined to minimize pressure drop during flow. The replaceable seat ensures tight sealing even under high pressures. Each valve is hydrostatically and leakage tested according to API 598 standards to ensure safety, durability, and accurate performance in industrial applications.

Farab flanged butterfly valve model BFY16

The Farab flanged butterfly valve model BFY16 is designed for flow control and shutoff in water, steam, and industrial fluid pipelines. The body is made of ductile iron GGG40 with a nominal pressure rating of PN16, and the disc is stainless steel or aluminum bronze for high corrosion and wear resistance. The seat is EPDM or NBR, and the stainless steel shaft is supported by bronze bushings. Flanged connections comply with EN 1092-2, and dimensions follow DIN 3202 standards. Operating temperature ranges from -10°C to 120°C, with a maximum pressure of 16 bar.

The Farab BFY16 butterfly valve features a robust flanged design for direct installation and connection to pipeline systems. Stainless steel shaft and bronze bushings ensure smooth and precise disc operation. Precision-machined disc and seat surfaces minimize pressure drop and ensure uniform flow. The replaceable seat guarantees tight sealing throughout the valve’s service life. Each valve is hydrostatically and leakage tested according to API 598 standards to ensure safety, durability, and precise performance in industrial conditions.

Farab wafer type butterfly valve Class 150 model BVW150

The Farab wafer type butterfly valve Class 150 model BVW#150 is engineered for high-pressure flow regulation and shutoff applications. Its body is made of ductile iron GGG40 or carbon steel ASTM A216 WCB, rated for ASME Class 150 pressure. The disc is stainless steel, and the seat is made of EPDM or NBR elastomer for chemical and temperature resistance. The wafer design allows compact installation between flanges. Operating temperature ranges from -20°C to +200°C, with a working pressure of up to 19 bar. It is ideal for steam, oil, gas, and water systems in industrial facilities.

The Farab BVW#150 butterfly valve features a stainless steel shaft and bronze bushings to reduce friction and ensure smooth operation. The concentric sealing mechanism provides tight shutoff in both flow directions. It can be equipped with manual lever, gearbox, or pneumatic actuator. The body is coated with anti-corrosive epoxy for extended service life in aggressive environments. Each valve is hydrostatically and leak tested in accordance with API 598 to guarantee safety, durability, and precision performance.

Mahab flanged butterfly valve

The Mahab flanged butterfly valve features a ductile iron GGG40 body and an AISI 304 stainless steel disc, providing excellent mechanical and chemical resistance in fluid transmission systems. Its nominal diameter ranges from 80 to 2000 millimeters, with a pressure rating of PN10 to PN16. An electrostatic epoxy coating with an average thickness of 250 microns is applied on both internal and external surfaces, ensuring high corrosion and abrasion resistance. The EPDM rubber seat with a temperature tolerance up to 120°C guarantees zero leakage performance.

The Mahab flanged butterfly valve is available with lever, gearbox, electric, or pneumatic actuators and can be installed in both vertical and horizontal orientations. The central shaft is machined with ±0.2 mm precision to minimize operating torque. Flanges are designed according to EN 1092-2 standard, and hydrostatic testing is performed at 24 bar. The valve weighs approximately 48 kg at 300 mm diameter, and its aerodynamic disc design ensures minimal pressure loss in the fluid flow.

Gearbox Butterfly Valve

Technical Specifications of Gearbox Butterfly Valve Butterfly Valve with Gearbox

Available sizes: from DN50 to DN2000 depending on the manufacturer

Body material: Cast iron, carbon steel, stainless steel

Disc material: Stainless steel, cast iron, special alloys

Working pressure: Up to 16 bar PN16 and higher pressure models available

Operating temperature: -20°C to 200°C depending on material

Actuator type: Manual gearbox, motorized gearbox

Standards: ISO 5208, API 609, DIN EN 593

Sealing type: Rubber, metal, or composite

Weight: Lighter compared to ball valves and gate valves of similar size

Opening and closing time: Fast and controllable thanks to the gearbox

Service life: Long-lasting due to high-quality materials and proper maintenance

For pricing and detailed technical information about gearbox butterfly valves, please contact our experts!

PTFE Butterfly Valve

Key Features of PTFE Lined Butterfly Valve:

Durable PTFE Coating: The PTFE lined butterfly valve is fully coated with PTFE, providing excellent resistance against acids, alkalis, and corrosive substances.

Fast and Precise Operation: Enables quick opening and closing of the flow with minimal mechanical effort.

Long Service Life: High resistance to wear and corrosion increases durability and reduces maintenance costs.

Ergonomic Design: Lightweight body with the ability to install in confined spaces.

Accurate Flow Control: Suitable for use in water, steam, gas, and various liquid pipelines.

If you are looking to purchase a PTFE lined butterfly valve with the best quality and competitive price, contact our experts now to place your order and benefit from fast delivery!

Wafer butterfly valve - FAF3500

Butterfly Valve - FAF3500

Valve Type: Wafer type butterfly valve with grey cast iron body

Connection Type: Wafer connection, pressure rating PN16

Standard: DIN, sizes from DN40 to DN600

General Use

Technical Specifications of FAF3500 Wafer Butterfly Valve:

Body Material: Cast iron

Shaft Material: Stainless steel SS420

Disc Material: Stainless steel SS304

Coating: Epoxy powder coating

Seat Options: Available with EPDM, NBR, or VITON seats

Working Pressure: 16 bar

Size Range: DN40 to DN600

Actuation Options: Available with lever, gearbox, pneumatic, or electric actuators

Application: Suitable for cold and hot water systems, potable water, and non-acidic fluids

VOG Iran Butterfly Valve Figure 497

VOG Iran Butterfly Valve Figure 497:
The VOG Iran Butterfly Valve Figure 497 is an industrial-grade valve with a wafer-type design, used to start or stop fluid flow efficiently. The valve body is constructed from ductile cast iron GGG40, and the disc is available in stainless steel CF8M or nickel-coated cast iron. The seat is made of EPDM or NBR elastomer, ensuring reliable and tight sealing. It is available in nominal diameters from DN50 to DN600 and operates under pressure ratings of PN10 or PN16. The shaft is made of stainless steel and features a double-bearing design to maximize service life. This valve complies with EN 593 design standards and is flange-compatible according to EN 1092-2.

Kitz Butterfly Valve

Technical Specifications of Kitz Butterfly Valve:

🔹 Available Sizes: From 2 inches to 24 inches
🔹 Body Material: Ductile iron, stainless steel, carbon steel
🔹 Disc Material: Stainless steel / ductile iron / CF8M
🔹 Seat Material: EPDM, NBR, PTFE
🔹 Working Pressure: PN10 / PN16 / ANSI 150
🔹 Connection Type: Flanged, wafer, lug type
🔹 Design Standards: API 609, ASME B16.34, JIS B2239
🔹 Temperature Range: From -20°C to +180°C depending on seat material

For free consultation on selecting the right size and model of Kitz industrial butterfly valves, please contact our sales team.

VOG Iran Wafer Type Butterfly Valve

The VOG Iran wafer type butterfly valve is manufactured with a body made of ductile iron or stainless steel and is available in sizes ranging from DN 50 to DN 600. This valve can withstand working pressures up to 16 bar and operates within a temperature range of -20 to 200 degrees Celsius. Its wafer-type design allows for quick installation between two flanges according to EN 1092-1 standards, while the overall length complies with EN 558 specifications. The valve disc is precisely engineered from corrosion-resistant stainless steel, and the sealing is performed using durable PTFE gaskets, ensuring excellent resistance against wear and chemical corrosion.

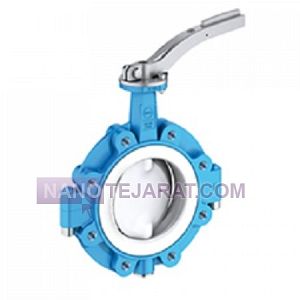

Ebro Butterfly Valve

Technical Specifications of Ebro Butterfly Valve:

Connection Type: Flanged, Wafer, and Lug

Body Material: Ductile iron, Stainless steel, Carbon steel

Size Range: From 2 inches up to 48 inches

Sealing Type: EPDM, PTFE, NBR

Working Pressure: PN10, PN16, PN25

Operation: Manual with gearbox, Pneumatic, Electric

We are a supplier of various types of genuine German Ebro butterfly valves in Iran, offering quality assurance and ready for immediate delivery nationwide with the best prices and customer support.

For receiving the price list of Ebro butterfly valves, Farab, and other reputable brands, please contact our experts.

Keystone Butterfly Valve

The Keystone butterfly valve is one of the most widely used types of butterfly valves in industries such as oil, gas, petrochemical, water and wastewater, HVAC, and pipeline systems. This valve, also known as the Keystone wafer butterfly valve and Keystone lug butterfly valve, features a durable design and precise sealing capability, helping you control fluid flow with minimal pressure drop and maximum efficiency.

For pricing details and technical specifications of various Keystone butterfly valves and to select the best model for your project needs, please contact our sales experts.

MIRAB Butterfly Valve

The MIRAB butterfly valve is one of the prominent products in the valve industry and fluid flow control. Known for its high-quality construction, modern design, and precise performance, it is recognized as a reliable option for industrial, building, and installation systems. If you are looking for a butterfly valve with excellent functionality and long service life, the MIRAB butterfly valve is the best choice for you.

To purchase genuine MIRAB butterfly valves and receive free expert consultation, contact our specialists now to find the best option tailored to your needs.

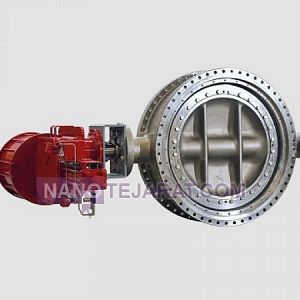

Orton Butterfly Valve

Key Features of Orton Butterfly Valve:

Compact design and lower weight compared to gate valves and ball valves

High pressure and temperature resistance

Compatible with various pneumatic and electric actuators

Suitable for water, acid, chemical, and gas transfer lines

Corrosion and scale resistant

Fully tight sealing with quick shut-off capability

For free consultation, purchasing genuine Orton Butterfly Valves, checking the latest prices, and receiving the catalog, contact our specialists now and benefit from our professional supply and support services.

Wafer butterfly valve

The wafer butterfly valve features a disc-shaped structure installed at the center of the pipe, allowing easy control of fluid flow. These valves are designed in a wafer style to fit between two pipe flanges, making their installation very simple and quick. One of the key advantages of the wafer butterfly valve is its ability to operate with minimal required force and to open and close rapidly, which enhances the efficiency of fluid transfer systems.

Choose the best wafer butterfly valve suited to your needs now and boost the efficiency of your system!

Pneumatic Butterfly Valve

Specifications and Features of Pneumatic Butterfly Valve:

Body Material: Stainless steel, cast iron, or aluminum

Actuator Type: Pneumatic compressed air

Operating Pressure: 1 to 16 bar

Operating Temperature: -20 to 200 degrees Celsius

Size: From 2 to 24 inches and larger

Connection Type: Flanged, threaded, or wafer

Fast and precise operation thanks to pneumatic power

Good resistance to corrosion and sudden pressure shocks

For pricing and purchasing high-quality industrial pneumatic butterfly valves, please contact our experts.

Flanged Butterfly Valve

The flanged butterfly valve enables easy and secure installation on pipelines thanks to its flanged connection, and it is easily replaceable and repairable. This valve consists of a round disc that rotates around its axis, regulating the flow through the pipe by adjusting the discs angle. The main advantages of this type of flanged butterfly valve are its fast operation, high reliability, and low maintenance costs.
For expert guidance on purchasing various flanged butterfly valves tailored to your industrial needs, contact our specialists now.

VOG IRAN Wafer Type Butterfly Valve with Gearbox

The VOG IRAN wafer type butterfly valve with gearbox is an industrial product featuring a modern design and high performance, used for controlling fluid flow in various industrial and installation systems. This valve, equipped with a gearbox, allows precise and easy opening and closing, making it suitable for applications that require accurate flow control and quick shutoff. Its wafer design enables simple installation between two flanges while occupying less space compared to flanged valves.

Farab Butterfly Valve

The Farab butterfly valve, also known as a butterfly valve in industry terminology, is produced and offered in various sizes in the following three models:

Farab Wafer Type Butterfly Valve

Farab Lug Type Butterfly Valve

Farab Flanged Butterfly Valve

To receive the catalog and technical specifications of Farab industrial butterfly valves and to learn about bulk purchasing conditions, please contact our specialists.

VOG Iran wafer-type butterfly valve with gearbox

The VOG Iran wafer-type butterfly valve with gearbox is one of the most advanced and widely used control valves in the industry. Thanks to its unique design and precise operation, it is utilized in various piping systems, especially in the oil, gas, petrochemical, and water and wastewater sectors. This high-quality product, offered at a competitive price, has secured a prominent position in the Iranian market.
