BALL VALVE

Kitz 2-inch Class 600 carbon steel ball valve

The Kitz 2-inch Class 600 carbon steel ball valve is built with a forged carbon steel ASTM A105 body and designed per ASME B16.34 standards for high-pressure applications. It features a 316 stainless steel ball that rotates 90 degrees to fully open or close the flow. The seat is made of RPTFE or PEEK, offering excellent durability and resistance to pressure up to 100 bar and temperatures from -29°C to 250°C. The flanged ends comply with ASME B16.5 Class 600 standards, ensuring precise, leak-free installation in high-pressure industrial systems. Dual sealing at the stem and seat provides zero-leak performance and extended service life.

Depending on configuration, the valve weighs between 12 and 16 kilograms. Its heavy-duty carbon steel body is designed to withstand vibration, thermal stress, and pressure surges. The polished stainless steel ball ensures smooth and accurate operation even under harsh conditions. Suitable for steam, natural gas, oil, fuel, and high-temperature chemical services, the Kitz 2-inch Class 600 carbon steel ball valve offers superior mechanical strength, reliable sealing, and easy maintenance, making it an ideal choice for oil, gas, petrochemical, and power generation industries.

Kitz 8-inch flanged ball valve

The Kitz 8-inch flanged ball valve is constructed with a steel or ductile iron body and designed per ASME B16.34 standards for pressure ratings from PN16 to PN40. It features a stainless steel 304 or 316 spherical ball that rotates 90 degrees to fully open or close the flow. The seat, made from PTFE or RPTFE, provides excellent corrosion resistance and durability under operating temperatures ranging from -20°C to 200°C. The flanged connection, built to ASME B16.5 or EN1092-2 standards, allows safe and precise installation between standard flanged pipelines. Dual sealing on the stem and seat ensures leak-free performance and long service life.

Depending on body material and pressure class, the valve weighs between 55 and 75 kilograms. The strong steel body ensures stable operation under high pressure and vibration. The polished ball and precision seat guarantee smooth, low-friction movement. This valve is suitable for handling water, steam, gas, oil, chemicals, and industrial fluids in high-pressure systems. With precise engineering, easy maintenance, and outstanding durability, the Kitz 8-inch flanged ball valve is an excellent choice for oil, gas, petrochemical, and power plant applications.

Kitz 6-inch flanged ball valve

The Kitz 6-inch flanged ball valve is manufactured with a steel or ductile iron body, rated for PN16 to PN40 pressure. It operates as a ball valve with a spherical ball inside that rotates 90 degrees to fully open or close the flow. The ball and seats are made of stainless steel or bronze for high corrosion and wear resistance, with an operating temperature range from 0°C to 200°C. The flanged connection conforms to EN1092-2 or ASME B16.5 standards, allowing secure and fast installation between standard flanged pipelines. Internal sealing with PTFE or NBR washers minimizes leakage and ensures precise, quiet operation.

Depending on body material and pressure rating, the 6-inch Kitz flanged ball valve weighs between 25 and 40 kilograms. The body and ball are designed to withstand pressure surges and impacts, making it suitable for water, steam, oil, and other industrial and chemical fluids. Flanges with standard bolt patterns and corrosion-resistant coating ensure easy installation and long-term protection. The Kitz 6-inch flanged ball valve offers long service life, safe operation, and easy maintenance, making it an ideal choice for medium- to high-pressure industrial pipelines.

Kitz 2-inch stainless steel ball valve

The Kitz 2-inch stainless steel ball valve is a Ball Valve type constructed from stainless steel grade 304 or 316, designed according to ASME B16.34 standards. It operates by rotating a polished stainless steel ball 90 degrees to fully open or close the flow. The seat is made of PTFE or RPTFE, providing excellent resistance to corrosion, pressure, and temperatures ranging from -20°C to 200°C. The valve connection is either flanged or threaded, following ASME B16.5 or BSP standards, ensuring fast, secure, and leak-free installation in industrial piping systems. The stem design with graphite or PTFE packing guarantees stable, leak-free operation.

Depending on connection type, the valve weighs between 6 and 9 kilograms and can withstand working pressures up to 40 bar. The smooth internal surface ensures precise and effortless flow control. The all-stainless construction provides outstanding resistance to corrosive fluids such as seawater, steam, mild acids, and chemicals. With its compact design, long service life, reliable sealing, and easy maintenance, the Kitz 2-inch stainless steel ball valve is ideal for food, pharmaceutical, petrochemical, water treatment, and steam systems.

Kitz 1/2-inch Class 300 steel ball valve

The Kitz 1/2-inch Class 300 steel ball valve is made with a forged steel ASTM A105 body and designed according to ASME B16.34 standards. It operates as a ball valve with a stainless steel 304 or 316 ball that rotates 90 degrees for precise on/off flow control. The seat is made of PTFE or RPTFE, providing excellent corrosion resistance and reliable operation under working temperatures from -20°C to 250°C. The flanged connection conforms to ASME B16.5 Class 300 standards, ensuring secure and efficient installation in high-pressure pipelines. A dual-sealing system on the stem and seat guarantees leak-free performance and longer service life.

Weighing approximately 4 to 6 kilograms, the valve features a strong forged steel body capable of withstanding pressures up to 50 bar. Its polished stainless steel ball ensures smooth operation and durability against wear. This valve is suitable for water, steam, gas, oil, and industrial chemical applications. With compact design, high reliability, easy maintenance, and excellent mechanical strength, the Kitz 1/2-inch Class 300 steel ball valve is a preferred choice for oil, gas, petrochemical, and high-pressure industrial systems.

Kitz 1/2-inch Class 300 steel ball valve

The Kitz 1/2-inch Class 300 steel ball valve features a forged steel A105 body and is rated for Class 300 pressure per ASME B16.34 standards. It is a ball valve type equipped with a stainless steel 304 or 316 internal ball that rotates 90 degrees to fully open or close the flow. The seat is made of PTFE or RPTFE, providing excellent corrosion resistance and durability under working temperatures from -20°C to 250°C. The flanged connection is designed per ASME B16.5 Class 300 standards, ensuring secure and efficient installation in high-pressure systems. Dual sealing on the stem and seat ensures leak-free performance and extended valve life.

Depending on connection type and sealing material, the valve weighs approximately 4 to 6 kilograms. The robust forged steel body and polished stainless steel ball enable smooth operation and resistance to wear and impact under heavy-duty conditions. It is suitable for steam, hot water, oil, gas, and various industrial fluids. With precise flange design, safe operation, and easy maintenance, the Kitz 1/2-inch Class 300 steel ball valve is a reliable choice for oil, gas, petrochemical, and power generation industries.

Kitz 1-inch Class 300 steel ball valve

The Kitz 1-inch Class 300 steel ball valve features a forged steel ASTM A105 body and meets ASME B16.34 design standards. It is a ball valve type with a 304 or 316 stainless steel internal ball that rotates 90 degrees to fully open or close the flow path. The seat is made of PTFE or RPTFE, providing high resistance to pressure, temperature, and corrosion, operating efficiently between -20°C and 250°C. The flanged connection is designed according to ASME B16.5 Class 300 standards, ensuring secure and precise installation in high-pressure pipelines. Dual sealing at the stem and seat minimizes leakage and extends service life.

The valve weighs approximately 5 to 7 kilograms, with a robust forged steel body rated up to 50 bar of working pressure. Its polished stainless steel ball and precise sealing ensure smooth, vibration-free operation even in corrosive environments. This valve is suitable for hot water, steam, gas, oil, and industrial chemical fluids. With strong construction, easy maintenance, and long service life, the Kitz 1-inch Class 300 steel ball valve is a reliable choice for oil, gas, petrochemical, and high-pressure industrial applications.

Kitz 1-inch Class 150 steel ball valve

The Kitz 1-inch Class 150 steel ball valve is manufactured with a forged steel ASTM A105 body, designed according to ASME B16.34 standards. It is a ball valve equipped with a stainless steel 304 or 316 internal ball that rotates 90 degrees to fully open or close the flow. The seat is made of PTFE or RPTFE, providing excellent corrosion and wear resistance under operating temperatures from -20°C to 200°C. The flanged connection complies with ASME B16.5 Class 150 standards, enabling secure and easy installation in medium-pressure pipelines. A precision sealing system at the stem and seat ensures leak-free operation and long-term reliability.

The valve weighs between 4 and 6 kilograms and has a working pressure capacity of up to 20 bar. Its compact design, smooth operation, and high resistance to wear make it ideal for demanding environments. The Kitz 1-inch Class 150 steel ball valve is suitable for steam, water, gas, oil, and chemical fluids. With robust construction, easy maintenance, and long service life, it serves as a reliable and efficient solution for oil, gas, petrochemical, and general industrial systems.

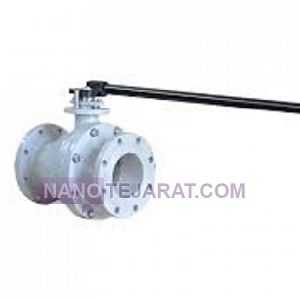

Vog Iran Figure 565 Ball Valve

The Figure 565 ball valve by Vog Iran is a flanged valve with a floating ball design and full bore configuration, designed for operating pressures up to 16 bar. It is manufactured in sizes ranging from DN 15 to DN 250 and can withstand working temperatures up to 150 degrees Celsius under standard conditions. The body is made of grey cast iron or ductile iron, while the ball is constructed from stainless steel AISI 304 or AISI 316. Flanged connections comply with EN 1092-1, and the face-to-face dimensions follow EN 558 standards. The valve operates with a 90-degree turn and supports actuator mounting according to ISO 5211. Sealing is achieved using PTFE, and leakage performance meets Class A as per EN 12266-1.

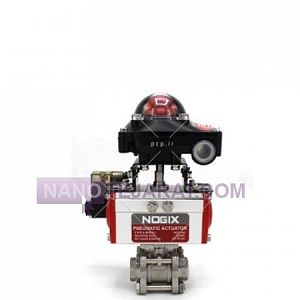

Ball valve with Nojix actuator

Features of Ball Valve with Nojix Actuator:

Nojix actuator with precise operation and high speed in opening and closing the valve

Body resistant to corrosion and high pressure, suitable for industrial environments

Automatic control capability for various fluids such as water, gas, steam, and chemicals

Easy installation and setup, fully compatible with industrial automation systems

Complete sealing with minimal leakage to enhance system safety and efficiency

Durable and long-lasting even under harsh working conditions and corrosive environments

For specialized consultation on selecting the best automatic ball valve with Nojix actuator, our experts are ready to assist you.

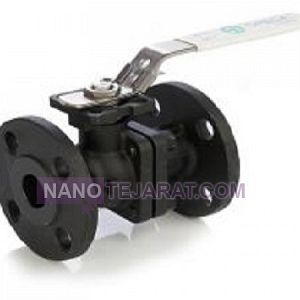

Nippon ball valve

Nippon ball valve, utilizing advanced Japanese technologies, offers advantages that set it apart from other ball valves:

Long lifespan and high resistance to operational pressures and harsh environmental conditions

Precise sealing that completely prevents leakage even at high temperatures and pressures

Use of high-quality stainless steel and brass materials in the construction, ensuring durability

Smooth and effortless operation when opening and closing the flow of water or other fluids

Standardized design fully compatible with various piping systems and industrial applications

For specialized consultation and pricing on Nippon brand ball valves, contact our experts today!

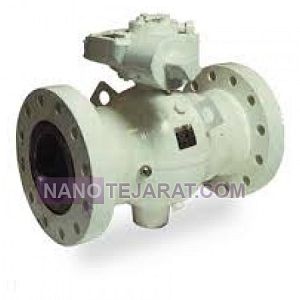

Cameron Ball Valve

Cameron ball valves, due to their unique design and high-quality construction, have secured a prominent position in both the global and Iranian markets. These valves, certified to meet international standards and guaranteed for quality, are among the best choices for flow control and industrial system safety. If you are looking for a reliable industrial ball valve, Cameron ball valve can perfectly meet your needs.

If you intend to purchase an original Cameron ball valve with a valid warranty, contact our experts now to help you select the best model suited to your requirements. You can also benefit from our professional consultation services to choose the right ball valve.

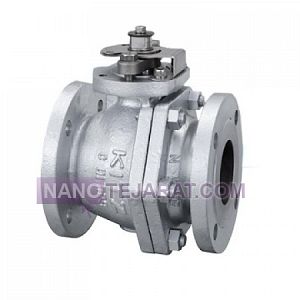

Kitz Ball Valve

Specifications and Advantages of Kitz Ball Valve:

✅ High-quality construction according to international standards
✅ Long service life with reliable sealing
✅ Suitable for high temperature and high pressure applications
✅ Made from corrosion-resistant materials
✅ Easy to install and set up
✅ Compatible with various fluids water, gas, steam, oil
✅ Smooth and vibration-free operation

For availability inquiries and to receive an instant proforma invoice for the Kitz Ball Valve, please contact our sales team.

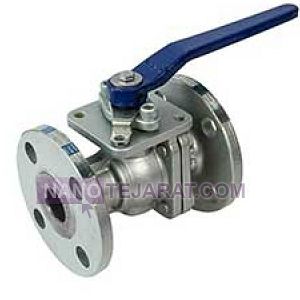

Steel Ball Valve

Features and Technical Specifications of Steel Ball Valves:

Body Material: Carbon steel, alloy steel, or stainless steel

Connection Type: Flanged, threaded, or welded

Working Pressure: Class 150 to 2500

Working Temperature: -29°C to 425°C

Design Standards: API 6D, ASME B16.34

To place an online order for various types of steel ball valves with fast nationwide delivery, please contact us now via WhatsApp or complete the order form.
