Vog Iran Figure 565 Ball Valve

Exporter, Wholesale, Manufacturer
Tehran
+989122003350

Price: Negotiate

Price :negotiated

Vog Iran Figure 565 Ball Valve , Iran

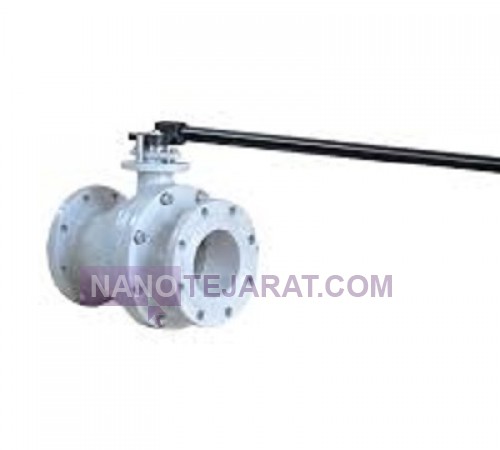

The Figure 565 ball valve by Vog Iran is a flanged valve with a floating ball design and full bore configuration, designed for operating pressures up to 16 bar. It is manufactured in sizes ranging from DN 15 to DN 250 and can withstand working temperatures up to 150 degrees Celsius under standard conditions. The body is made of grey cast iron or ductile iron, while the ball is constructed from stainless steel AISI 304 or AISI 316. Flanged connections comply with EN 1092-1, and the face-to-face dimensions follow EN 558 standards. The valve operates with a 90-degree turn and supports actuator mounting according to ISO 5211. Sealing is achieved using PTFE, and leakage performance meets Class A as per EN 12266-1.You can order and buy Vog Iran Figure 565 Ball Valve from Iran by contacting us through whatsaap and email.
WEBSITE: Vog Iran Figure 565 Ball Valve Iran

Price of VOG Iran Figure 565 Ball Valve and Key Influencing Factors

The price of the VOG Iran Figure 565 ball valve is influenced by a variety of technical and economic factors that can significantly affect the final cost. The first factor is the valve’s nominal size, which increases material volume and weight as diameter increases, raising the overall price. The body and ball materials—typically ductile iron or stainless steel—are selected based on fluid type and working pressure, directly affecting cost. Connection type, whether threaded or flanged, along with PN16 pressure rating and sealing materials such as NBR or PTFE, also impact pricing. Fluctuations in raw material costs, transportation charges, brand reputation, epoxy coating quality, and availability of spare parts further shape the final price. Choosing a model that matches system requirements can reduce maintenance expenses and operational downtime.
