Escalator , Iran

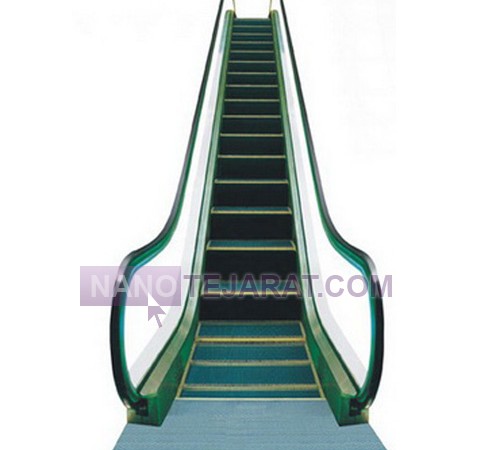

Escalators are constructed from a moving chain-driven step system with pressure-cast aluminum platforms. Useful step widths range from 600 to 1200 mm, designed for capacities of 4500 to 13500 persons per hour. Standard speed is 0.5 m/s, adjustable up to 0.75 m/s for high-traffic applications. A synchronous electric motor 7.5 to 30 kW and helical gearbox with 95% efficiency provide the driving force. Standard inclination angle is 30 degrees with vertical rises from 3 to 20 meters and step depths of 400 mm. The system is certified per safety standards EN 115 and ASME A17.1 for commercial centers, metros, and airports.

The structure features aluminum steps with diamond-pattern anti-slip coating, wear-resistant for up to 500,000 operational cycles. Moving handrails synchronize with step speed, made of antibacterial polyurethane with hand presence detection sensors. A dual electromagnetic and mechanical safety braking system activates within 1.5 seconds during emergencies. Uniform LED lighting provides 200 lux illumination along the path, with directional indicator lights at entry points. The frame and balustrades are hot-dip galvanized steel with electrostatic epoxy coating and scratch resistance up to 3H. A central PLC-based controller offers real-time monitoring, fault diagnostics, and Building Management System BMS integration.You can order and buy Escalator from Iran by contacting us through whatsaap and email.
WEBSITE: Escalator Iran
