deutz engine 912 1011 1012 and 1013 water radiator

Radiators for DEUTZ 912, 1011, 1012, and 1013 engines are engineered to maintain optimal coolant temperature and prevent engine overheating under continuous operation. Core construction uses high-efficiency aluminum or copper fins with a tube density of 16–22 fins per inch, providing effective heat dissipation up to 120 kW thermal load. Tanks are made from reinforced polymer or welded aluminum, capable of withstanding pressures up to 2.0 bar and temperatures up to 110°C. Flow channels are optimized to ensure uniform coolant distribution, minimizing hot spots and thermal stress on cylinder heads. Radiator designs include inlet and outlet diameters from 32 to 50 mm depending on engine model, maintaining coolant flow rates of 60–120 liters per minute. Proper installation and maintenance reduce corrosion, scaling, and cavitation, enhancing engine reliability and prolonging service intervals.

Each radiator integrates mounting brackets and pressure caps with spring settings of 1.5–2.0 bar to maintain system pressure and prevent coolant boil-over. Core thickness ranges from 25 to 45 mm, balancing cooling efficiency and airflow resistance. Radiators are designed for vibration resistance up to 5 g at 50 Hz, protecting tubes and fins from fatigue. High-precision brazing or TIG we

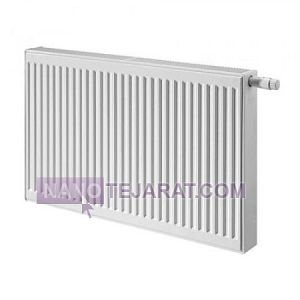

Demir Sun Classic 140 Double-Sided panel radiator

The Demir Sun Classic 140 Double-Sided panel radiator is a high-performance heating unit engineered by Demir Sun Turkey, designed for large rooms and high heat demand applications. It measures 1400 mm in length and 550 mm in height, made from 1.25 mm cold-rolled steel with a Type 22 configuration featuring double panels and double convectors. The radiator delivers approximately 2390 watts of thermal output under 75/65/20°C conditions and operates safely at a maximum working pressure of 10 bar. Its dual-sided design provides an extended radiant surface, ensuring more uniform heat distribution and enhanced energy efficiency. The exterior is finished with durable RAL9016 electrostatic powder coating, offering excellent resistance to corrosion, humidity, and scratches, while the inner surface is phosphate-treated for long-term anti-rust protection.

The Demir Sun Classic 140 Double-Sided radiator is manufactured using automated laser welding technology for maximum sealing and structural strength. It complies with EN 442 European standards and is compatible with wall-hung boilers, central heating systems, and hydronic installations. The unit weighs around 30 kg and supports dual-side installation, making it ideal for use in open areas, hallways, or large rooms requiring two-way hea

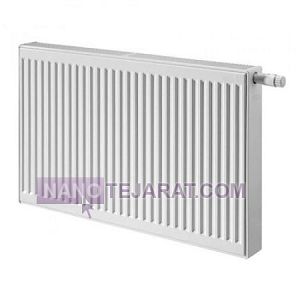

emir Sun Classic double-sided panel radiator model 120

The Demir Sun Classic double-sided panel radiator model 120, with a length of 120 cm and a steel sheet thickness of 1.25 mm, is made from high-grade stainless steel resistant to corrosion. Its dual-sided design features two panels and two internal convectors, allowing heat emission from both sides and enhancing thermal efficiency. The nominal heat output under 75/65/20°C conditions is approximately 2150 watts. Operating at a working pressure of 10 bar and a test pressure of 13 bar, it ensures durability and safety in central and combi boiler systems. The surface is coated with white electrostatic powder paint RAL9016, providing excellent resistance to humidity, steam, and rust. Its classic horizontal-line design adds a refined and elegant look to both residential and office interiors.

The Demir Sun Classic Double-Sided 120 model has an overall thickness of 100 mm and weighs about 26 kg. It features standard 1/2-inch inlet and outlet connections at the bottom and allows left or right installation flexibility. The dual-sided configuration also makes it suitable as a thermal partition between two areas. The double-panel, dual-convector construction ensures fast heat transfer and improved energy efficiency. Manufactured according to the European EN442 standard, this radiator offe

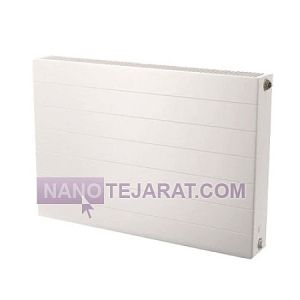

Demir Sun Flat Line 100 panel radiator

The Demir Sun Flat Line 100 panel radiator is a high-efficiency heating unit from Demir Sun Turkey, featuring a sleek flat-front design that delivers uniform heat and a refined modern appearance. It measures 1000 mm in length and 550 mm in height, constructed from 1.25 mm cold-rolled steel with a Type 22 double panel and double convector configuration. The radiator provides a thermal output of approximately 1710 watts under 75/65/20°C conditions, operates at pressures up to 10 bar, and withstands working temperatures up to 110°C. The exterior surface is finished with durable RAL9016 electrostatic white powder coating, while the interior features a phosphate anti-corrosion treatment for long-term reliability.

The Demir Sun Flat Line 100 combines elegant minimalist aesthetics with efficient heating performance. Its automated laser-welded construction ensures perfect sealing and superior mechanical strength. Fully compliant with EN 442 European standards, it is suitable for connection to wall-mounted boilers, central heating systems, or hydronic heating setups. Weighing approximately 22 kg, the unit allows dual-side installation for flexible setup. With its modern flat design, quiet operation, high heat efficiency, and energy-saving characteristics, the Flat Line 100 radiator r

Demir Sun Flat Line 80 panel radiator

The Demir Sun Flat Line 80 panel radiator is a stylish and high-performance heating unit from Demir Sun Turkey, designed with a sleek flat-front surface ideal for modern residential and office interiors. Measuring 800 mm in length and 550 mm in height, it is constructed from cold-rolled steel sheets with a 1.25 mm thickness and features a Type 22 configuration two panels and two convectors. Its thermal output is approximately 1370 watts under 75/65/20°C conditions, with a maximum working pressure of 10 bar. The exterior surface is finished with durable electrostatic white powder coating RAL9016, providing superior corrosion and moisture resistance, while the inner surface is phosphate-treated for long-lasting anti-rust protection.

The Demir Sun Flat Line 80 radiator combines minimalist aesthetics with high heating efficiency. Its precision laser-welded structure ensures full sealing, mechanical strength, and even heat distribution. Certified under European EN 442 standards, it is compatible with both wall-mounted boilers and central heating systems, offering dual-side installation options. The unit weighs around 18 kg and provides fast, uniform warmth with reduced energy consumption. With its flat, elegant design and durable construction, the Flat Line 80 model represents the

Demir Sun Classic 140 panel radiator

The Demir Sun Classic 140 panel radiator is a high-efficiency heating unit manufactured by Demir Sun Turkey, ideal for medium to large residential spaces. It measures 1400 mm in length and 550 mm in height, constructed from cold-rolled steel with a sheet thickness of 1.25 mm. The radiator features a Type 22 configuration, consisting of two panels and two convectors, with a thermal output of approximately 2390 watts under 75/65/20°C test conditions. It operates safely at a maximum working pressure of 10 bar. The exterior surface is coated with electrostatic white powder paint RAL9016, offering excellent resistance to corrosion and scratches, while the interior surface is phosphate-treated for superior rust protection and extended service life.

The Demir Sun Classic 140 provides even and consistent heat distribution due to its wide radiant surface and balanced structure, ensuring optimal energy efficiency. Precision laser welding guarantees full sealing and mechanical strength. Certified under European EN 442 standards, this radiator is suitable for use with wall-mounted boilers or central heating systems. It weighs approximately 29 kg and supports dual-side installation. With its classic, minimalist design and durable build, the Classic 140 model combines aesthetic appeal, hig

Demir Sun Classic panel radiator model 120

The Demir Sun Classic panel radiator model 120, with a length of 120 cm and a steel sheet thickness of 1.25 mm, is made of corrosion-resistant high-quality steel. This model features a double-panel and dual-convector design, increasing the heat transfer surface and enhancing overall thermal efficiency. Its nominal heat output under 75/65/20°C conditions is approximately 2150 watts. With a working pressure of 10 bar and a test pressure of 13 bar, it ensures durability and safe operation in both central and combi boiler heating systems. The electrostatic powder coating in RAL9016 white provides high resistance to humidity, scratches, and corrosion, maintaining its glossy appearance over time. The classic horizontal-line design blends seamlessly with both modern and traditional interiors.

The Classic 120 model has an overall thickness of 100 mm and weighs around 26 kg, allowing easy installation on standard wall mounts. The 1/2-inch inlet and outlet connections are located at the bottom, supporting left or right configuration. Its dual-panel, dual-convector structure ensures rapid heating and improved energy efficiency. Manufactured in accordance with the European EN442 standard, this radiator delivers high performance, silent operation, and long service life, making it an ideal

Demir Sun Flat Line 120 panel radiator

The Demir Sun Flat Line 120 panel radiator is a premium, modern heating unit designed by Demir Sun Turkey, combining high performance with elegant, minimalist aesthetics. Measuring 1200 mm in length and 550 mm in height, it features a Type 22 configuration with two panels and two convectors. Built from 1.25 mm cold-rolled steel, it delivers approximately 2050 watts of thermal output under 75/65/20°C conditions. The radiator operates at pressures up to 10 bar and temperatures up to 110°C. Its exterior is finished with durable RAL9016 electrostatic white powder coating, while the interior is phosphate-treated for enhanced corrosion resistance and long-lasting performance in central heating systems.

The Demir Sun Flat Line 120 offers smooth, flat surfaces for even heat distribution and easier cleaning compared to traditional ribbed models. Precision laser welding ensures complete sealing and mechanical strength. Fully compliant with EN 442 European standards, it is compatible with wall-hung boilers, central heating plants, and hydronic systems. The unit weighs around 25 kg and allows for dual-side installation. With its modern design, high thermal efficiency, and energy-saving operation, the Flat Line 120 radiator provides the perfect blend of functionality, durability, and sty

Demir Sun Classic panel radiator model 160

The Demir Sun Classic panel radiator model 160, with a length of 160 cm and a steel sheet thickness of 1.25 mm, is made from high-quality corrosion-resistant stainless steel. Featuring a double-panel and dual-convector design, it provides a larger heat transfer area, ensuring fast and even heat distribution. Its nominal heat output under 75/65/20°C conditions is approximately 2850 watts. With a working pressure of 10 bar and a test pressure of 13 bar, it guarantees safe operation and durability. The RAL9016 white electrostatic powder coating offers superior resistance to humidity, scratches, and corrosion. The classic horizontal-line design delivers both elegance and performance, making it suitable for residential and office interiors.

The Classic 160 model has an overall thickness of 100 mm and an approximate weight of 33 kg, allowing for easy wall-mounted installation. It features standard 1/2-inch inlet and outlet fittings located at the bottom, supporting left or right side connections. The double-panel, dual-convector construction ensures quick room heating and optimal energy efficiency. Manufactured according to the European EN442 standard, this radiator provides high thermal output, silent operation, and long-lasting durability — positioning it as one of the premium

Demir Sun Classic double-sided panel radiator code 100cm

The Demir Sun Classic double-sided panel radiator code 100, with a length of 100 cm and a 1.25 mm thick steel sheet, is made from high-grade stainless steel. Its double-sided configuration includes two heating panels and two internal convectors, providing efficient heat emission from both sides. The nominal heat output under 75/65/20°C conditions is approximately 1820 watts. Operating at 10 bar working pressure and 13 bar test pressure, it ensures safe and stable performance in both central and combi boiler systems. The RAL9016 white electrostatic powder coating offers exceptional resistance to corrosion and humidity. The classic design with clean lines ensures compatibility with various interior styles while maintaining high performance.

The Classic Double-Sided Code 100 model features an overall thickness of 100 mm and weighs about 22 kg, allowing for quick and easy wall installation. The 1/2-inch inlet and outlet fittings are located at the bottom and support both left and right connections. Its dual-sided structure also allows it to serve as a thermal divider between two spaces. Built in compliance with the European EN442 standard, this radiator delivers high efficiency, silent operation, and long service life, making it an excellent professional choice for residential an

Demir Sun Classic 80 panel radiator

The Demir Sun Classic 80 panel radiator is a high-efficiency heating unit designed and manufactured by Demir Sun Turkey. Measuring 800 mm in length and 550 mm in height, it is made from premium-grade steel sheets with a thickness of 1.25 mm and features a Type 22 configuration with two panels and two convectors. Its thermal output under 75/65/20°C conditions is approximately 1370 watts, and it operates safely at working pressures up to 10 bar. The radiator’s exterior is coated with electrostatic white powder paint RAL9016, ensuring high resistance to corrosion and surface damage. The internal surfaces are phosphate-treated and coated with anti-corrosive paint for enhanced durability in closed heating systems.

The Demir Sun Classic 80 provides even heat distribution and rapid thermal response thanks to its symmetrical panel design. Precision laser welding ensures excellent sealing and long-lasting reliability. Certified under European EN 442 standards, it is suitable for use with both wall-hung boilers and central heating systems in residential or commercial spaces. Weighing around 18 kg, the unit supports dual-side installation. Its minimalist classic design harmonizes with various interior styles, offering an efficient, cost-effective, and durable solution for modern heati

Demir Sun towel radiator model 12 tubes

The Demir Sun towel radiator model 12 tubes is designed for efficiency and simplicity, made from stainless steel with a 1.2 mm tube thickness. It features 12 horizontal tubes with a 25 mm diameter, connected by two durable vertical collectors. The working pressure is 8 bar, and the test pressure is 10 bar, ensuring reliable performance in central heating systems. Its nominal heat output under 75/65/20°C conditions is approximately 340 watts. The white electrostatic powder coating RAL9016 provides superior resistance to corrosion, moisture, and steam, maintaining a clean and glossy finish. Its compact design makes it ideal for smaller spaces such as bathrooms and restrooms.

The Demir Sun 12-tube model measures approximately 80 cm in height, 50 cm in width, and weighs around 5.5 kg. The 1/2-inch inlet and outlet connections are positioned at the bottom, allowing easy installation with wall-mounted boilers and heating systems. Evenly spaced tubes promote quick towel drying and uniform heat distribution. Manufactured in compliance with the European EN442 standard, this model offers high thermal efficiency, silent operation, and long-lasting durability, making it a cost-effective and reliable choice for residential towel heating.

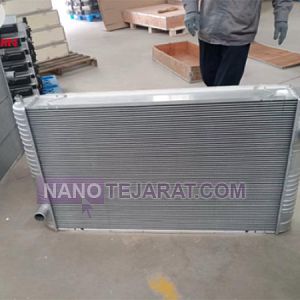

Volvo L90-L120 and L180 loader water radiator

The engine water radiator for VOLVO L90, L120, and VOLVO L180 is made from aluminum alloy with finned cores, designed to optimize heat exchange between the coolant and forced airflow. Core dimensions are typically 520 mm in length, 450 mm in width, and 70 mm in thickness, with a fin spacing of 2.0 mm to ensure high thermal efficiency. The core contains over 1,500 parallel fluid channels, maximizing heat transfer surface. Effective surface area reaches up to 1.8 square meters, with a working pressure resistance of 2.0 bar, maintaining stability at operating temperatures between 95°C and 110°C while preventing uneven welding or scaling.

The radiator is installed in front of the engine block, behind the cooling fan, maximizing forced airflow and minimizing system pressure drop. Inlet and outlet connections use SAE 12 threads with hoses rated for up to 150°C to prevent leakage and thermal degradation. Upper and lower tanks are made of fiber-reinforced polymers or shaped aluminum, keeping total weight between 28 and 34 kg. Fin geometry is optimized for resistance against debris and vibration under heavy operational loads, extending radiator service life. buy volvo water radiator from Iran.

Demir Sun 18-tube towel radiator

The Demir Sun 18-tube towel radiator is a high-quality and modern heating solution designed for bathrooms and humid environments. It features 18 steel tubes with a 25 mm diameter arranged vertically for uniform heat distribution. The radiator is coated with a glossy white electrostatic powder finish, providing excellent resistance to moisture, corrosion, and surface scratches. Its thermal output ranges between 520 and 580 watts at 75°C, operating safely under a working pressure of up to 8 bar. The compact dimensions and lightweight structure ensure easy installation in confined spaces.

The Demir Sun 18-tube towel radiator is precisely welded and pressure-tested for superior durability and leakproof performance. It efficiently dries towels and clothing while maintaining a warm and comfortable bathroom environment. The approximate dimensions are 1200×500 mm, compatible with both central heating systems and wall-hung boilers. With its smooth curvature, polished surface, and minimalist design, it adds a touch of elegance and functionality to modern bathrooms. Fully compliant with European EN 442 standards, this model offers an ideal balance of performance, style, and long-term reliability.

Demir Sun towel radiator model 15 tubes

The Demir Sun towel radiator model 15 tubes combines modern aesthetics with functional design, built from stainless steel featuring a 1.2 mm tube thickness. It consists of 15 horizontal tubes with a 25 mm diameter, connected to two corrosion-resistant vertical collectors. The working pressure is 8 bar, and the test pressure is 10 bar, ensuring safe and reliable operation in heating systems. Its nominal heat output under 75/65/20°C conditions is approximately 440 watts. The RAL9016 white electrostatic powder coating provides excellent resistance to humidity, steam, and rust. Its lightweight, balanced structure allows for easy installation in small to medium bathrooms.

The Demir Sun 15-tube model measures approximately 90 cm in height, 50 cm in width, and weighs about 6.5 kg. The 1/2-inch inlet and outlet fittings are located at the bottom, allowing left or right installation flexibility. Even spacing between the tubes improves heat circulation and enables fast towel drying. Manufactured according to the European EN442 standard, this radiator ensures high efficiency, silent performance, and long service life, making it an ideal and durable choice for residential and humid environments.
