Polycord Belt

Polycord belt with polyester core

Polycord belt with polyester reinforcement is a multi-layer power transmission belt designed for high-precision applications requiring stable tensile performance. The outer layer is made of thermoplastic polyurethane with a hardness between 90 and 95 Shore A, offering excellent resistance to abrasion, tearing, and chemical exposure. A reinforced polyester core is embedded within the belt to absorb tensile loads and minimize long-term elongation. Standard diameters typically range from 5 to 15 millimeters, with tensile strength measured between 70 and 100 megapascals. These belts operate reliably within a temperature range of -15 to +80 degrees Celsius and support accurate thermal welding for seamless joining.

The polyester core in the polycord belt improves performance in systems with frequent starts and stops by preventing undesired longitudinal stretch. Required initial tension during installation is typically lower than non-reinforced belts, defined between 3% and 5%. This reduces bearing loads and extends the service life of mechanical components. Polycord belts with polyester reinforcement are ideal for packaging machinery, robotics, precision automation systems, and conveyors with sensitive positioning requirements. The maximum permissible linear speed is up to 30 meters

Round polycord belt

The round polycord belt is made of thermoplastic polyurethane with a circular cross-section, designed for power transmission in light to medium-duty systems. The belt diameter typically ranges from 2 to 20 millimeters, with a surface hardness between 85 and 95 Shore A. Its tensile strength lies between 40 and 60 megapascals, and the operating temperature range is from -20 to +80 degrees Celsius. These belts offer good resistance to abrasion, light oils, and mild chemicals. Due to their thermoplastic structure, they can be thermally welded, simplifying installation.

The round polycord belt is designed for high flexibility and quiet operation, making it ideal for sensitive industrial applications and confined spaces. The recommended initial tension during installation is typically 5 to 8 percent of the belt length to prevent slippage and efficiency loss. The maximum linear speed these belts can handle is up to 25 meters per second. With high fatigue resistance, they provide long service life in repetitive applications. These belts are optimized for light conveyor systems, packaging machinery, and industrial automation equipment.

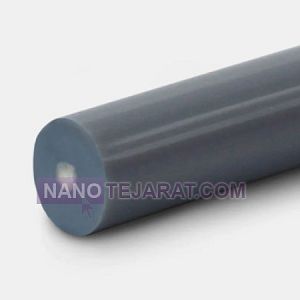

TPE 63D polycord belt

The TPE 63D polycord belt is made from thermoplastic elastomer with a hardness of 63D according to ASTM D2240, offering tensile strength up to 65 MPa. It operates efficiently within a temperature range of -30 to 110°C, providing high resistance to abrasion, industrial solvents, and impact loads. Belt thickness ranges from 3 to 22 mm and width from 12 to 160 mm. The internal structure is reinforced with aramid fibers to prevent elongation and excessive bending under heavy-duty conditions, ensuring extended service life.

This belt features a high friction coefficient on metal and polymer pulleys, ensuring slip-free power transmission. The precisely engineered surface texture minimizes vibration and operational noise in drive systems. Its expected lifespan exceeds 8 years in continuous industrial applications. The TPE 63D belt is designed for conveyor lines, automation systems, and precision machinery, manufactured in compliance with ISO 9001 and DIN 53504 standards.

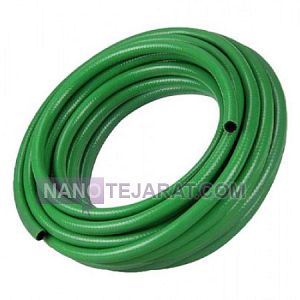

6 mm Polycord Belt

The 6 mm Polycord belt is manufactured from durable polyurethane with a seamless, continuous design. Its 6-millimeter diameter allows it to withstand tensile loads up to 250 newtons. The uniform polyurethane structure provides high abrasion resistance and repeated bending flexibility. The belt’s flexibility enables usage on pulleys with a minimum diameter of 50 millimeters without cracking or deformation. These characteristics make it suitable for conveying light components and medium-speed production lines.

The 6 mm Polycord belt operates reliably within a temperature range of minus 20 to plus 80 degrees Celsius and is resistant to oil, moisture, and dust. Thermal or mechanical joining allows quick installation and maintenance in automated systems. Its light weight and high durability make it ideal for packaging, assembly lines, textile industries, and precision transport of small components.

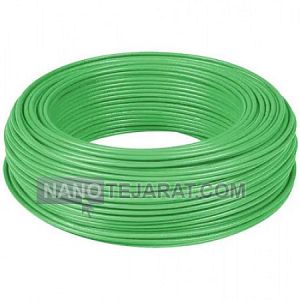

15 mm Polycord belt

The 15 mm Polycord belt is manufactured from high-strength polyurethane and is designed as a continuous belt to provide uniform tensile load capacity. Its 15-millimeter cross-section allows it to transmit loads up to 600 newtons, while the durable polyurethane structure ensures long-lasting abrasion and repeated bending resistance. The belt’s flexibility enables it to operate on pulleys with a minimum diameter of 80 millimeters without deformation or cracking.

The 15 mm Polycord belt performs reliably within a temperature range of minus 20 to plus 80 degrees Celsius and resists oil, moisture, and light chemical exposure. It can be joined by thermal welding or mechanical fastening, allowing quick installation and easy maintenance in production lines. Due to its high strength and moderate weight, it is widely used in packaging, textile industries, assembly lines, and automated conveying systems.

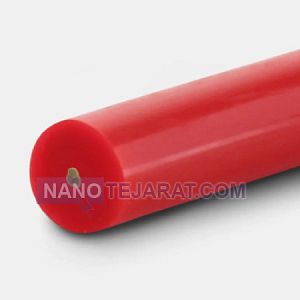

PU 95A Polycord Belt

The PU 95A belt is made from polyurethane with a surface hardness of 95A according to ASTM D2240 and tensile strength up to 60 MPa. It operates reliably within a temperature range of -25 to 100°C, providing high resistance to abrasion, industrial oils, and mild chemicals. Thickness varies from 3 to 20 mm and width from 10 to 150 mm. Its internal structure is reinforced with aramid fibers to prevent elongation under high-tension conditions and extend belt service life.

This belt features a high friction coefficient on steel, aluminum, and polymer pulleys, ensuring slip-free power transmission. The precise belt surface design minimizes vibration and operational noise. Its estimated lifespan exceeds 8 years under standard industrial conditions. The PU 95A belt is ideal for heavy machinery, precision conveyors, and robotic systems, and it complies with ISO 9001 and ISO 1817 standards.

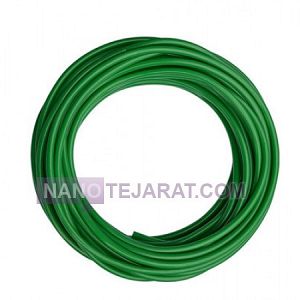

10 mm Polycord belt

The 10 mm Polycord belt is manufactured from high-strength polyurethane and is designed as a seamless, continuous belt. Its 10-millimeter circular cross-section allows it to withstand tensile loads up to approximately 400 newtons. The uniform polyurethane structure provides excellent abrasion resistance and repeated bending flexibility. Due to its high flexibility, this belt can be easily used on pulleys with a minimum diameter of 60 millimeters.

The 10 mm Polycord belt operates reliably within a temperature range of minus 20 to plus 80 degrees Celsius and is resistant to oil and moisture. Its capability for thermal welding or mechanical joining allows quick installation and easy maintenance in production lines. Due to its light weight and durability, this belt is widely used in packaging, textile industries, light part conveying, and automated systems.

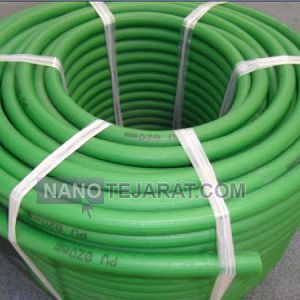

Polycord belt

Polycord belt also known as extruded round belt is a type of industrial belt that has a round profile. this specific shape increases the flexibility of the belt to be used in various industrial applications. power transmission and conveyor are two shapes of polycord round belts. in most applications polycord round belts are produced as open=end and are further attached by heat process.
