Non rotating Wire Rope

Search Results For Non rotating Wire Rope
Tarom-boxel
Iran
02155429480

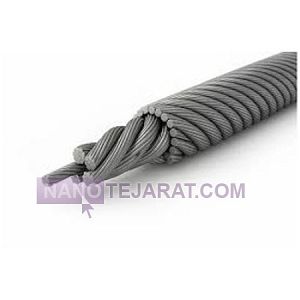

18mm non rotating wire rope

The 18 mm non-rotating galvanized wire rope is designed with high corrosion resistance due to its zinc coating. It is typically manufactured from steel with a tensile strength of 1770 or 1960 N/mm², providing excellent load-bearing capacity. The unit weight of this rope is approximately 1.6 to 1.8 kilograms per meter, depending on strand construction and steel density. These characteristics make it a reliable option for heavy lifting applications such as tower cranes and industrial hoisting systems.

The strand construction of the 18 mm non-rotating wire rope is generally 19X7 or 35X7, both classified as rotation-resistant designs. These constructions consist of multiple layers of strands laid in opposite directions, preventing the rope from rotating under load. This feature ensures higher operational safety by reducing issues such as hook twisting or rope kinking. Additionally, the precise strand pattern improves flexibility while maintaining high tensile strength.

Connection safety for the 18 mm non-rotating galvanized rope is critical and should be ensured through casting sockets or standard steel clamps. The safe working load typically ranges between 18 to 22 tons, based on the design safety factor. The overall breaking strength is approximately six times the safe worki

18mm non rotating wire rope
18mm non rotating wire rope
Tarom-boxel 02155429480
aflakiwire
Iran
021-55425403

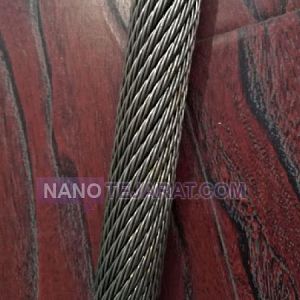

Non rotating wire rope

Non rotating wire rope with the weaving structure of 19X7 is one of the very common structures that is used on tower crane lifting connections. 19X7 non rotating wire rope is usually available in high tensile strengths of over 1770 N/mm2 to provide the means for lifting purposes. in most cases Non rotating wire ropes are available with surface galvanizing to increase their resistance against corrosion.

Non rotating wire rope
Non rotating wire rope
aflakiwire 021-55425403
baradaranamir
Iran
021-55406871

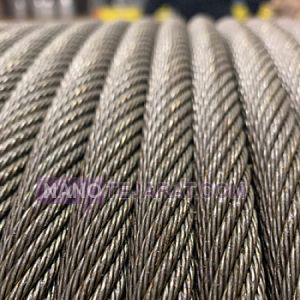

size 8 to 24 non rotating wire rope

Non rotating rope is often used in lower sizes from 8 to 16 mm with a 19X7 structure and in higher sizes it is often used with a 35X7 structure. non rotating rope is used on tower cranes due to its anti-rotation ability to counter the rotation and swing of the product that carries the anchor. non rotating rope wire is produced in sizes of 8 to 24 mm and in high grades of steel as all steel.

size 8 to 24 non rotating wire rope
size 8 to 24 non rotating wire rope
baradaranamir 021-55406871
