Hydraulic Valve Iran

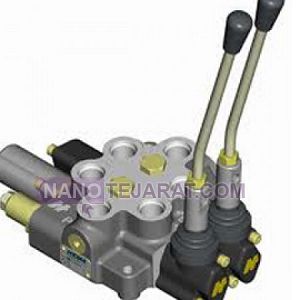

Manual hydraulic valve

Hydraulic manual valves feature bodies made of high-strength alloy steel or ductile iron. This body undergoes precise heat treatment processes. Their nominal working pressure typically reaches up to 350 bar. Their peak pressure can attain 420 bar. The permissible operating temperature ranges from -20 to +80 degrees Celsius. Standard applicable fluids are mineral-based hydraulic oils. Connections are usually threaded per ISO 6149 or flange-mounted per ISO 4401 standards. Internal sealing is achieved using O-Rings made of NBR or Viton materials. This design minimizes leakage. Valves often feature clear position indicators and an ergonomic handle.

Structurally, these valves are often constructed as high-pressure ball or poppet types. The internal port design is optimized for low hydraulic losses and laminar flow. Valves can be two or three-position and two or three-way configurations. The handles operating torque is typically less than 10 Newton-meters. This torque is designed for comfortable operator use. Their volumetric efficiency is usually reported above 97 percent. High-quality valves possess an internal surface polish of Ra 0.4 micrometers. This polish prevents particle abrasion. All components are protected against corrosion via methods like phosphating or plating.

hydraulic valve

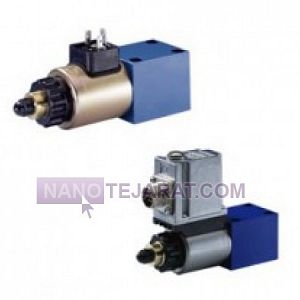

A proportional hydraulic valve is an advanced control valve that regulates hydraulic oil flow and pressure linearly and precisely. The body is made of hardened steel or durable aluminum, capable of handling working pressures from 250 to 350 bar. Flow rate depends on valve size and electromagnetic control, ranging from 5 to 150 liters per minute. These valves are typically operated by an electromagnetic coil and provide fast response to electrical signals with ±2 percent accuracy. Internal design includes chromium-plated cores, precision springs, and O-rings resistant to high temperature and pressure.

Structurally, the proportional valve includes standard inlet and outlet ports, cartridge or flanged connections, and vibration-resistant fittings. Electronic or digital control systems enable smooth adjustment of flow and pressure, reducing shocks and fluctuations in hydraulic circuits. These valves are used in machine manufacturing, automated equipment, hydraulic presses, and mobile hydraulic systems requiring high precision. High wear and corrosion resistance ensures service life exceeding 500,000 operating cycles.

hydraulic valve

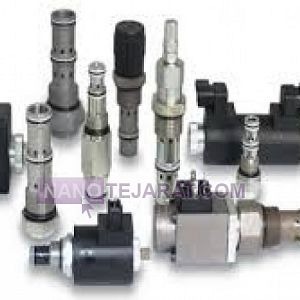

Hydraulic cartridge valves are compact industrial valves designed to control flow and pressure in hydraulic systems. The body is typically made of hardened steel or aluminum, capable of handling working pressures from 250 to 350 bar. The cartridge design allows direct installation in hydraulic blocks or manifolds, reducing leakage and system volume. Flow rates depend on cartridge size, ranging from 10 to 120 liters per minute. Depending on the type, they can perform functions such as on/off control, fixed flow, pressure reduction, and flow return.

Internally, the valve includes a chromium-plated metal core, pressure adjustment springs, and O-rings resistant to high pressure and temperature. These valves usually comply with ISO 6162 or SAE J518 standards, enabling installation in industrial and mobile hydraulic systems. High wear and corrosion resistance extends service life to over 500,000 cycles. The cartridge design also allows quick replacement without disassembling the entire system, improving energy efficiency and precise flow control.

Hydraulic valve

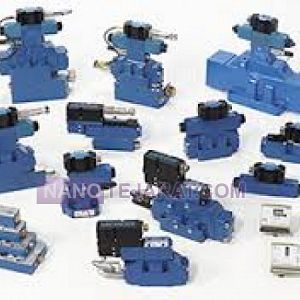

The hydraulic valve is designed to control flow, pressure, and fluid direction in hydraulic systems, playing a key role in precise system operation. These valves are typically made of stainless steel or aluminum with corrosion-resistant coating, supporting operating pressures from 100 to 350 bar. Flow capacity varies depending on design, ranging from 10 to 500 liters per minute. Types include manual, electric, pneumatic, and pilot-operated hydraulic valves. Sealing with oil- and temperature-resistant O-rings minimizes leakage and extends system life.

The valve structure consists of a main body, spool or flow-directing disk, return springs, and precise internal channels to reduce pressure drop. Some valves are equipped with pressure control systems and sensors for optimal performance and safety. Installation can be in open or closed circuits, with applications in industrial machinery, agricultural equipment, heavy vehicles, and production lines. Optimized internal design can increase hydraulic system efficiency up to 90 percent.

hydraulic valve

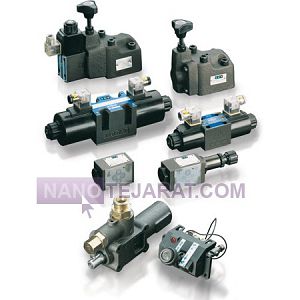

A hydraulic valve is an industrial device that controls and directs hydraulic oil flow and pressure in power systems. The body is usually made of steel, cast iron, or aluminum with surface hardening, capable of handling working pressures from 250 to 400 bar. Types include directional, pressure, and flow control valves, with flow rates ranging from 10 to 200 liters per minute. Internal components, including chromium-plated cores, precision pressure springs, and wear-resistant O-rings, ensure stable, leak-free operation.

Structurally, the hydraulic valve includes standard inlet and outlet ports, threaded or cartridge connections, and fittings resistant to vibration and high pressure. Some valves feature electronic or pneumatic control for precise pressure and flow adjustment. These valves are widely used in industrial machinery, construction equipment, heavy vehicles, and automated hydraulic systems. High resistance to corrosion and shock pressure extends service life and reduces maintenance requirements.

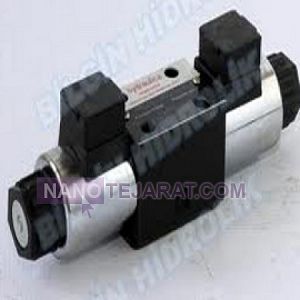

Electric hydraulic valve

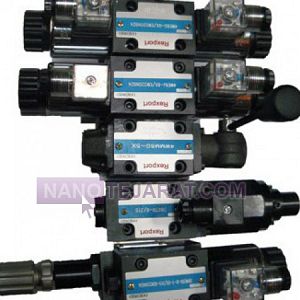

A hydraulic solenoid valve is an electromechanical directional control valve that manages hydraulic fluid flow. Its core consists of a metal body typically cast iron or steel, a spool a movable cylindrical component made of hardened alloy steel, and one or more solenoids coils. The spool is installed within the body with precise machining tolerances usually on the order of microns and is sealed without gaskets, necessitating excellent oil filtration to prevent wear.

Upon energization with a standard voltage e.g., 12VDC, 24VDC, 110VAC, or 220VAC, the solenoid generates a magnetic field. This field displaces the ferromagnetic core inside the solenoid, which directly or indirectly actuates the spool. The linear displacement of the spool opens or closes flow paths between the pressure port P, tank port T, and work ports A and B. In common designs, one or two springs on either side of the spool return it to the neutral position e.g., closed center when de-energized.

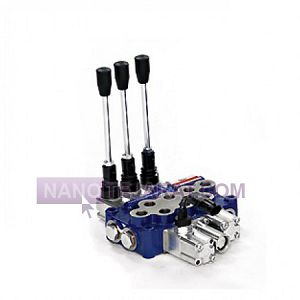

Hydraulic valve

The manual hydraulic valve controls fluid flow and direction in hydraulic systems and is operated manually via a lever or handle. It is typically made of steel or aluminum with heat treatment and corrosion-resistant coating, supporting operating pressures from 100 to 350 bar. Standard flow rates range from 10 to 150 liters per minute, with inlet and outlet ports sized from 1/4 to 1 inch. Sealing is achieved with oil- and temperature-resistant O-rings, extending valve service life.

The valve structure includes the main body, control lever, return springs, and precise internal channels for fluid routing. Internal low-friction channels minimize pressure drop. Types include two-way, three-way, and four-way valves, suitable for open or closed circuits. Manual hydraulic valves are used in heavy machinery, industrial production lines, and agricultural hydraulic systems, providing stable performance under high pressure and temperature conditions.
