Hook Iran

2 ton toyo hoist with hook

The TOYO 2-ton electric chain hoist, 2-function model with hook, is designed with a rated capacity of 2000 kg and powered by an electric motor of approximately 3 to 3.5 kW. Its lifting speed is about 6 meters per minute, making it suitable for handling medium to heavy loads in industrial environments. The load chain is made of heat-treated alloy steel with a diameter of 8 to 10 mm, while the standard lifting height ranges from 6 to 9 meters. A forged steel hook with a safety latch ensures secure load handling.

The load chain of this hoist is manufactured according to EN 818 standards in grade G80 or G100, providing high tensile strength and resistance against heavy-duty applications. The trolley system is designed to operate on IPE or INP beams with spans of 2 to 6 meters, allowing horizontal load movement. Reinforced steel wheels equipped with heavy-duty bearings ensure smooth, vibration-free travel, while the robust trolley frame prevents deformation under stress.

The safety factor of the TOYO 2-ton chain hoist is typically rated between 1.25 and 1.5 times the nominal capacity, meaning it can withstand test loads of 2500 to 3000 kg. An electromagnetic brake, overload protection, and motor thermal cut-off enhance safety and operational reliability. This hoist is widely use

drum lifter with hook

The chain hook barrel lifter is an industrial safety tool designed for moving and handling metal or plastic barrels, especially in storage environments, warehouses, and manufacturing industries. This device consists of a hook attached to a chain, allowing it to lift barrels in either vertical or horizontal positions. The lifting capacity of the chain hook barrel lifter typically ranges from 100 to 1000 kilograms, depending on the size and type of the tool. The hooks are generally made from alloy steel or stainless steel, offering high resistance to pressure, abrasion, and corrosion. This tool is commonly used in various industries such as chemicals, petrochemicals, food, and pharmaceuticals.

The chain system of the barrel lifter, with adjustable chain length, provides the ability to move barrels in various positions. This feature is particularly useful for loading and unloading barrels from pallets or shelves in confined spaces. The chain hook barrel lifter is usually designed and manufactured according to international safety standards, and is equipped with safety systems such as automatic locks and resistance to tension and vibration. This tool is specifically designed to facilitate barrel handling in industrial environments and warehouses, and its benefits include ease of u

PiRoozPack Hookah Pack Packaging Machine

Using the Hookah Pack Packaging Machine is one of the most effective ways to deliver hygienic, standardized, and attractive products to customers. PiroozPak, with extensive experience in designing and producing packaging machines for products, offers a variety of automatic and semi-automatic models for both small and large manufacturers. In addition to hookah packs, this machine is capable of packaging other consumer and hygienic products.

Key advantages of the Hookah Pack Packaging Machine include:

Safe and hygienic packaging for hookah products and disposable items

Maintaining quality and freshness while protecting packs from damage

Ability to package restaurant sets, airline packs, and hygienic kits

Increased production speed and efficiency with minimal manpower

Printing production date, expiration, and product information on the packs

Attractive and professional pack design that appeals to customers

Using Hygienic Product Packaging Machines and Disposable Product Packaging Machines complements your production line, offering a seamless experience of professional packaging. By purchasing the Hookah Pack Packaging Machine from PiroozPak, you enhance the quality of your products and ensure customer satisfaction. The price of the Hookah Pack Packaging Machi

Bent Hook Chain Sling

The bent hook chain is a specialized lifting assembly designed for securing and handling loads with asymmetric connection points. It is commonly manufactured using Grade 80 or G100 alloy chain. The nominal chain diameter typically ranges from 8 to 16 millimeters depending on working load. The bent hook is made from forged alloy steel with quench and temper heat treatment. The minimum tensile strength of the hook exceeds 800 megapascals depending on chain grade. The working load limit is defined by hook angle and chain diameter. A minimum safety factor of 4 to 1 is applied. The bent hook design improves engagement with load edges.

Structurally, the bent hook is connected to the chain using a forged coupling or connecting link. The specific hook geometry reduces slippage under dynamic loading conditions. This chain assembly is suitable for heavy industrial and structural assembly applications. The standard operating temperature range is minus 40 to plus 200 degrees Celsius. High resistance to fatigue and abrasion increases service life. The surface finish is typically industrial black or safety coated. Each assembly undergoes proof load testing, dimensional verification, and visual inspection.

Eyehook

The forged steel hook is manufactured from medium carbon steel, typically AISI 1040 or equivalent. The ultimate tensile strength of this steel ranges between 650 to 750 MPa. The hook undergoes a quench and temper heat treatment process. This process achieves a final hardness between 32 to 38 Rockwell C HRC. All hooks are subject to certified load testing. The proof load test is typically 150% of the working load limit. The ultimate failure test is performed at 300% to 350% of the nominal capacity. The design incorporates a minimum operational safety factor of 4 to 1. This factor is calculated based on the steels minimum yield strength.

The hook shape follows a circular geometry with a gradual curve in the stress-bearing area. The hook surface is coated via hot-dip galvanizing or zinc spraying. The coating thickness is between 60 to 80 microns for corrosion protection. Depending on the type, hooks may feature a safety latch. This latch prevents accidental disengagement of the rope or attachment. Standard capacities are available from 0.5 tons to 50 tons. The shank or mounting section diameter is precision-machined. Magnetic particle or ultrasonic inspection for internal defects is mandatory.

Female Dynam Hook Made of Stainless Steel

This hook is manufactured from austenitic stainless steel, typically AISI 316 or grade 304. The ultimate tensile strength of this material ranges between 500 and 700 Megapascals. Its female nut design generally conforms to the DIN 688 standard. This hook covers nominal thread diameters from M8 to M20. The nut depth is typically 1.5 times the nominal screw diameter. This product is suitable for dynamic loads and continuous vibrations. Its surface polish is Ra ≤ 0.8 micrometers. This process reduces stress concentration. Its operating temperature tolerance is from -200 to 400 degrees Celsius.

The structure of this hook consists of a monolithic cylindrical body. This body features precise internal threading with standard metric or fine pitch. The thread angle is 60 degrees according to ISO 68-1. Its thread tolerance class is typically 6H or 7H. At the hooks base, there is a circular cross-section locking hole. This hole is designed for a safety pin. Sometimes, a recess machining exists on the outer face. This recess is for installation with a special tool. All edges and corners are chamfered. This chamfering prevents crack initiation under fatigue loading.

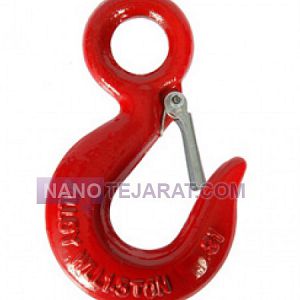

Eye Hook

A hook is a critical tool in material handling and lifting industries, designed to connect loads to lifting devices such as cranes, hoists, and other similar equipment. These tools are typically made from alloy steel or stainless steel, offering high resistance to tension and pressure, enabling them to handle heavy loads. Hooks are available in various forms, including simple hooks, hooks with clips, and locking hooks. Locking hooks are specifically designed for applications requiring added safety to prevent accidental disconnection. The load-bearing capacity of hooks can range from 500 kg to over 100 tons.

Hooks are primarily used to connect to ropes, chains, or cables and are widely used in industries such as construction, transportation, oil and gas, and marine applications. These tools are particularly useful in environments that require quick and secure connections. Hooks are often coated with anti-corrosion layers such as galvanization or epoxy paint to resist corrosion and extend their lifespan. Their optimal design and flexibility make them ideal for use in tough conditions and heavy-duty, complex operations.

Sundy Hook

The Sundy hook is an industrial lifting device designed for handling heavy loads and bulky components in heavy industries, steelworks, and construction. It is typically made from hardened alloy steel with high tensile strength, capable of supporting loads of several tons. The hook’s curved and reinforced edge design reduces pressure on the load and increases safety. A safety latch prevents accidental load release. Hook diameter and length vary depending on load capacity and industrial standards. The surface is coated for corrosion and wear resistance, ensuring long service life.

Structurally, the Sundy hook undergoes controlled welding and heat treatment to enhance mechanical strength and prevent metal fatigue. Connection to chains or wire ropes is achieved via industrial-grade rings and clamps with high load tolerance. It operates reliably within a temperature range of minus 20 to plus 50 degrees Celsius. Each unit undergoes proof load testing and quality inspection before use to guarantee safety and durability. It is primarily used with cranes, hoists, and industrial material handling systems.

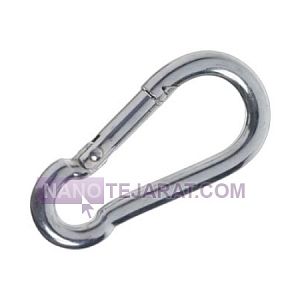

Carabiner Hook

The carabiner hook is an industrial and safety device for quick and secure attachment of loads, equipment, or personnel in industrial activities, climbing, and hoisting operations. It is typically made from alloy steel or aluminum with hardening treatment to provide high tensile strength, capable of supporting loads from 500 kilograms up to several tons. The design features a closed-loop with a spring-loaded or screw gate that allows rapid connection and disconnection. Automatic or screw locking mechanisms prevent accidental opening and ensure user safety. The surface is coated for corrosion, wear, and scratch resistance.

Structurally, the carabiner hook has an integrated design with reinforced bearings or shaft to handle radial and axial loads. Connection to ropes, chains, or wire ropes is achieved via steel or aluminum rings. The geometric design ensures uniform force distribution and prevents stress concentration. It operates reliably within minus 20 to plus 50 degrees Celsius. Each unit undergoes proof load testing and gate mechanism inspection before use to ensure durability and safety.

6 m and 9 m Double Hook Chain Sling

The 6 meter and 9 meter double hook chain sling is a ready to use lifting assembly for safe industrial load handling. It is typically manufactured using Grade 80 or G100 alloy chain. The nominal chain diameter ranges from 8 to 20 millimeters depending on capacity. The effective working length is precisely controlled at 6 or 9 meters. Both ends are equipped with forged safety latch hooks. The working load limit ranges from 1.2 to over 12 tons based on chain grade and diameter. A minimum safety factor of 4 to 1 is applied. All components comply with EN 818 standards.

Structurally, the hooks are connected to the chain using forged couplers or master links. Uniform link geometry ensures balanced stress distribution across the assembly. This chain sling is suitable for heavy duty and dynamic loading conditions. The operating temperature range is typically minus 40 to plus 200 degrees Celsius. High resistance to wear and mechanical fatigue extends service life. The surface finish is usually industrial black or safety coated. Each assembly undergoes proof load testing and dimensional inspection.

Pipe Lifting Hook

The pipe lifting hook, also known as a fish hook with handle, is an industrial tool designed for safe lifting and moving of pipes, profiles, and heavy sections in workshops and industrial environments. It is made from alloy steel with tensile strength of 600–900 MPa and surface hardness of 35–45 HRC. Load capacity typically ranges from 500 kg to 5 tons. The hook opening is adjustable from 30 to 120 millimeters depending on pipe size. The handle provides better control and increased operator safety during lifting.

Structurally, the handle-equipped hook has a one-piece, durable body with polished or galvanized surface for wear and corrosion resistance. The handle is made of hardened steel or lightweight alloy, allowing easy handling. The attachment point to chains or wire ropes is reinforced with bushings or rings to prevent load drop. This hook is widely used in oil, gas, petrochemical, steel, and pipeline industries, providing stable operation at temperatures from −20°C to +150°C. The fish-shaped tip prevents slippage and damage to pipes.

1 ton hoist with hook

This type of 1-ton electric chain hoist, manufactured by Chinese companies such as Zhejiang Junchi Machinery, is designed with a compact body that includes an electric motor, transmission mechanism, durable chain, and an electromagnetic brake system. The hoist is equipped with a motorized trolley that moves automatically along the overhead beam, enabling horizontal load transportation. It also comes with certifications such as CE and ISO9001, ensuring compliance with international quality and safety standards.

The main advantages of this hoist include its compact design and lightweight structure, which make installation and maintenance in industrial environments much easier. The internal gearboxes are typically hardened to provide excellent wear resistance and long service life. The steel chain and safety hook, along with the reliable braking system and upper/lower limit switches, increase operational safety. These hoists usually come with a 12-month warranty and can be customized with options such as wireless remote control and adjustable lifting heights.

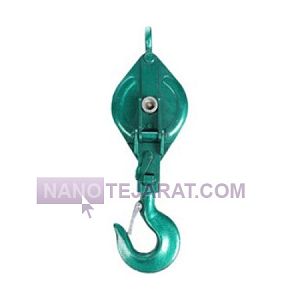

Pulley Hook

The pulley hook is an industrial lifting device designed to connect loads to a pulley system for moving heavy objects across various industries. It is typically made from hardened alloy steel with high tensile strength, capable of supporting loads from several hundred kilograms up to several tons. The hook’s curved and reinforced design reduces pressure on the load and enhances lifting safety. A dedicated slot or loop accommodates wire ropes or chains. A safety latch prevents accidental load release, and the surface is coated for corrosion and wear resistance.

Structurally, the pulley hook features a steel shaft and body capable of handling high radial and axial loads, with controlled welding or heat treatment. The geometric design ensures uniform force distribution and prevents stress concentration. Connection to wire rope or chain is achieved via industrial-grade rings and clamps. It operates reliably within minus 20 to plus 50 degrees Celsius. Each unit undergoes proof load testing and quality inspection before use to ensure safety and durability.

5 ton toyo hook hoist

The 2-way single-speed electric crane with a 5-ton capacity features a powerful 7.5 kW motor operating at 380 volts, enabling load lifting up to 12 meters. Its hoist speed reaches 8 meters per minute, equipped with a magnetic brake system that stops in less than 0.5 seconds. The 6 mm thick steel structure with anti-corrosion coating provides 450 MPa tensile strength, ensuring high resistance to bending and torsion. Under standard operating conditions, the expected service life of the motor and wire rope is approximately 10,000 hours.

This crane comes with a remote control offering a 20-meter operational range and positioning accuracy of ±2 centimeters. The full-load current consumption is 16 amperes, with an overall electrical and mechanical system efficiency of around 92 percent. Overload protection up to 105 percent of nominal capacity and motor thermal sensors with automatic shutdown ensure operator safety and reduce equipment failure. Easy maintenance with direct access to mechanical and electrical components minimizes downtime and repair costs.

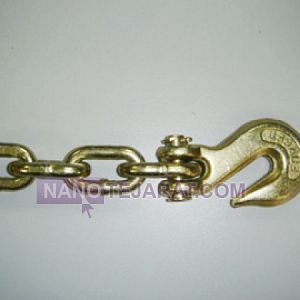

chain with grab hook

Chains are essential tools in various industries, used for lifting, transportation, and connecting components. They are typically made from alloy steel or stainless steel, offering high resistance to pressure, tension, and corrosion. Chains are manufactured in various sizes and thicknesses, with link diameters typically ranging from 4 mm to 32 mm. The length of chains can be ordered from 2 meters to 30 meters or more. Industrial chains often have high tensile strength and can support loads ranging from 1 ton to 100 tons or more.

Chains are generally available in two types: general-purpose chains and load-bearing chains. Load-bearing chains are typically made with thicker, more durable links, making them ideal for use in lifting systems, cranes, and slings. To prevent corrosion, chains are often coated with anti-corrosion layers such as galvanization or epoxy paint. These chains are widely used in industries such as construction, transportation, mining, and oil and gas, serving as tools for lifting, hauling, and ensuring safety in industrial operations.
