Solenoid , Iran

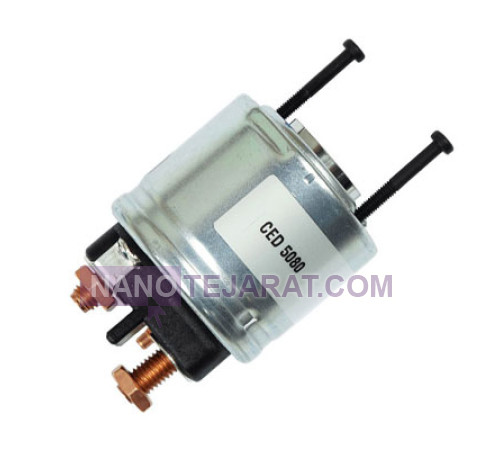

The starter solenoid is a two-stage action electromagnetic switch. It converts a low-current control signal into the high current required by the starter motor. Its standard design incorporates two separate coils: pull-in and hold-in. The nominal operating voltage for light vehicles is 12V DC. The instantaneous pull-in current can range from 30 to 60 Amperes. The generated magnetic force varies between 40 to 70 Newtons. This force drives the linear plunger motion and mechanical pinion engagement. Total response time typically falls between 80 to 150 milliseconds.

Its internal structure consists of a movable plunger, coil windings, main power contacts, and a return spring. The main contacts are made from high-conductivity copper-tungsten alloy. The pull-in coil resistance ranges from 0.1 to 0.3 Ohms at 20°C. The housing is typically manufactured from steel or zinc alloy with anti-corrosion coating. The permissible operating temperature range is usually from -40 to +120 degrees Celsius. The key quality parameter, cyclic life, spans from 50,000 to 150,000 operations. This component plays a critical role in the internal combustion engine starting system.You can order and buy Solenoid from Iran by contacting us through whatsaap and email.
