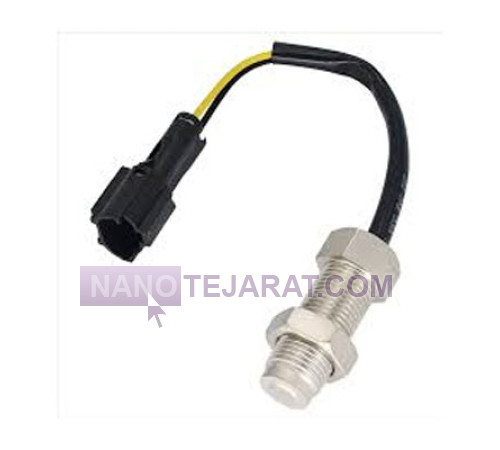

main engine speed sensor 6-7-200

The main engine speed sensor 6-7-200 is constructed from stainless steel alloy and semiconductor materials with ±0.5% accuracy, ensuring precise and stable engine speed measurement between 50 and 5000 rpm. The sensor diameter is 18 mm, length 75 mm, and total weight approximately 0.3 kg. Installation distance from the drive gear is set between 0.5 and 1 mm to generate noise-free magnetic field and electrical signals.

The sensor output is either 0.5–5 V analog voltage or 5 V TTL digital signal, with a response time under 1 millisecond. Operating temperature range is -40°C to 125°C and ambient pressure up to 10 bar. The external coating is epoxy and vibration-resistant. Shock, vibration, and EMC testing according to ISO 16750 ensures a service life exceeding 10 years in harsh industrial conditions.
