printing machine Iran

printing machine

The industrial digital printing press utilizes an inkjet printhead system with a resolution of 1200 to 2400 dpi. Maximum print width is 3.2 meters with operational speeds of 150 to 500 square meters per hour. It supports solvent-based or UV inks with an 8 to 12-color palette including white and specialty varnish. Positioning accuracy is ensured by an optical encoder system with ±0.1 mm tolerance. Ink consumption ranges from 10 to 35 ml per square meter depending on print mode and coverage. Direct printing on substrates up to 50 mm thick and 100 kg maximum weight is supported.

The machine structure features an epoxy-coated anti-vibration steel frame, vacuum suction table, and automated roll-to-roll handling system. Printheads are piezoelectric type with a lifespan of 5000 to 10,000 continuous operating hours. A hybrid drying system combines 120 W/cm UV-LED lamps and infrared heaters for instant polymerization. The main controller uses a quad-core processor with a 15-inch touch interface and Ethernet/IP connectivity. It includes an automatic nozzle cleaning system and automated color calibration. The device complies with ISO 9001:2015 quality standards and holds RoHS and REACH environmental certifications.

printing machine

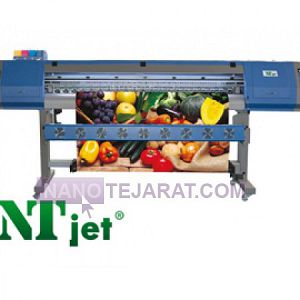

The roll-to-roll digital printer utilizes a piezo electric printhead system with 1200 x 1200 DPI resolution. Useful print width ranges from 1600 to 3200 mm with production speeds of 70 to 150 m²/hour. It supports 8 to 12 printheads with variable ink drop technology 6-30 picoliters. The drying system features UV-LED lamps with 385 nm wavelength and 240 W/cm power. Positioning accuracy uses servo motors with 0.01 mm linear encoders and ±0.1 mm repeatability. Power consumption is 15 kW during operation with 380V three-phase voltage.

The machine structure comprises steel frame with anti-vibration epoxy coating and 2500 kg/m³ rigidity. Material feeding system includes dancer rollers with 0.5-10 N/m tension control and CMOS edge sensors. Compatible inks include UV-Curable, eco-solvent, and latex with CMYK+Lc+Lm+W+O+V color palettes. User interface features a 15-inch touchscreen with ICC color management software supporting PDF/TIFF/JPEG formats. Connectivity includes 1000BASE-T Ethernet and USB 3.0 ports for data transfer. This equipment complies with ISO 9001, ISO 14001 international standards and CE electromagnetic safety certification.

printing machine

The single-color offset press is built from a steel frame with 450 MPa tensile strength and anti-vibration coating. It supports maximum sheet sizes of 720 x 1020 mm and minimum sizes of 290 x 420 mm. Printing speed is adjustable from 3000 to 15000 sheets per hour with ±0.01 mm registration accuracy. It utilizes aluminum plates 0.2–0.3 mm thick and an alcohol-based dampening system. Ink consumption ranges from 2 to 5 grams per square meter with automatic density control. The main drive is a 7.5 kW vector-controlled motor for smooth and precise operation.

The press structure includes three cylinders plate, blanket, impression with 210 mm diameter and hard chrome plating up to 80 HRC. An air supply system provides 0.6 MPa pressure and 250 L/min flow for sheet separation. The inking unit features 18 rollers of varying diameters with an oil-cooling system. The controller uses a PLC with a 10-inch HMI and 1000-job memory storage. It includes an automatic roller wash-up system with a 90-second cycle time. The machine complies with CE safety standards and is calibrated per ISO 12647-2 for print quality assurance.

printing machine

Industrial digital printers utilize piezoelectric printheads with 1200 x 1200 dpi resolution. Print speeds reach 500 m² per hour with a usable printing width of 3200 mm. The system supports UV-curable inks with viscosity of 10-12 cP at 25°C. The drying system employs LED-UV curing with 240 W/cm power and 365 nm wavelength. Linear positioning accuracy achieves 0.01 mm using optical encoders. It can print on materials with thicknesses from 0.5 to 50 mm and weights up to 50 kg.

The machine structure features a steel frame with 120x120 mm profiles and wear-resistant epoxy coating. The motion system uses high-precision linear guides and 32-bit servo motor control. The ink reservoir incorporates PTC temperature control and 5-micron filtration. The user interface includes a 15-inch touchscreen with advanced RIP software and standard format support. Power consumption is 7.5 kW in operation and 0.5 kW in standby mode. This equipment complies with CE, RoHS, and ISO 9001 standards for advertising, industrial, and packaging applications.
