filter Iran

Danfoss diesel nozzle filter

The Danfoss diesel nozzle filter is a critical component in diesel fuel injection systems, responsible for the final filtration of fuel before it enters the injectors. Designed with precision, this filter can remove extremely fine particles typically as small as 10 microns from the fuel, preventing damage to sensitive injector nozzles. The filter is typically made of durable metal materials such as stainless steel or specialized alloys, capable of withstanding high pressures up to 2000 bar and the operating temperatures of modern fuel injection systems. Its filtration mesh is engineered to maintain optimal fuel flow while delivering maximum filtration efficiency.

Danfoss diesel nozzle filters are available in various types depending on the model and application, including metal mesh filters, ceramic filters, and specially coated paper filters. These filters generally comply with international standards such as **ISO 4020** and **DIN 73378**, ensuring compatibility with different fuel injection systems, including **Common Rail** and **inline pump injectors**. The typical service life of these filters ranges between **30,000 to 50,000 kilometers**, depending on fuel quality and operating conditions. Timely replacement plays a crucial role in maintaining optimal fuel injection

microfilter

Compressed air microfilters utilize main cartridges made from borosilicate glass fiber with a polymer coating. These cartridges guarantee particle separation efficiency per ISO 8573-1:2010 Class 1, Quality 1. Their effective pore size ranges from 0.01 to 0.1 microns. The design enables removal of 99.9999% of solid particles and oil aerosol droplets. Maximum operating pressure is 16 bar at an operational temperature of 50°C. Initial pressure drop at rated flow is measured below 0.1 bar. Dust Holding Capacity DHC is designed from 0.5 to 5 grams depending on size. The filter housing is constructed from anodized aluminum or 316 stainless steel.

The filter structure includes a pre-filter cyclonic separator and a depth filtration stage. Standard connections are typically G ¼" to G 1½" depending on flow rate. Nominal flow rates range from 500 to 10,000 liters per minute. The filter cartridge is sealed using NBR or Viton O-rings. A visual color-change indicator or differential pressure gauge is mounted on the housing. These filters are resistant to synthetic Polyalphaolefin PAO based oils. Cartridge service life under standard conditions reaches up to 8000 operating hours. Cartridge installation and replacement require no special tools and take less than 3 minutes.

Hago Menarsh Steel Diesel Nozzle Filter

The Hago Manaresh steel diesel nozzle filter is manufactured using premium-quality 304 or 316 stainless steel, offering exceptional resistance to corrosion and wear. These filters can withstand operating pressures up to 1800 bar while maintaining stable performance across a temperature range of -30°C to +120°C. Their multi-layer construction features stainless steel mesh with 80-100 density and additional filtration layers capable of capturing particles as small as 7 microns. The specialized design incorporates Viton or NBR sealing washers to prevent leaks under high-pressure conditions.

Standard dimensions for Hago Manaresh steel filters typically range from 10-22mm in diameter and 25-50mm in length, with weights varying between 40-120 grams. The interior surfaces feature advanced anti-deposit coatings. Manufactured in compliance with ISO 4020 and DIN 73378 international standards, these filters are compatible with various diesel fuel injection systems. Their service life is estimated at 25,000-40,000 kilometers depending on operating conditions. The modular design ensures easy and quick replacement when needed. The filters precision engineering guarantees optimal fuel flow while maintaining filtration efficiency throughout their service life.

Donaldson P560971 Oil Filter

The Donaldson P560971 oil filter is designed to ensure engine performance under high pressure and extreme temperature conditions. This filter is made of multi-layer synthetic fibers with a filtration efficiency of 99.5% and can remove solid particles down to 20 microns. The recommended operating pressure ranges between 1.5 and 3.0 bar, and the filter’s operational temperature can vary from -20 to +120 degrees Celsius. It features high mechanical strength to prevent deformation during use. Its internal design also helps reduce pressure drop in the oil system and ensures a consistent flow.

The dimensions of the Donaldson P560971 oil filter include an outer diameter of 93 mm, a height of 160 mm, and an inner diameter of 45 mm. Its approximate weight is 0.7 kg, and it has an oil holding capacity of about 1.2 liters. The filter has a standard M20x1.5 threaded connector and is compatible with various diesel and gasoline engine oil systems. Its service life depends on operating conditions and ranges from 3,000 to 5,000 hours or as recommended by routine oil change intervals. These features make the P560971 filter a preferred choice for industrial maintenance engineers and professional mechanics.

filter

This filtration system includes: 5-micron PP sediment filter, GAC filter, carbon block filter, RO membrane, post-carbon filter, and mineralizer/alkalizer stage. Dimensions are 45×35×20 cm with 200 liters daily purified water production. Optimal operating pressure is 3–6 bar 45-90 psi with inlet water temperature of 4–40°C. Polyamide RO membrane with 0.0001-micron pores removes 99% of salts, nitrates, heavy metals, and viruses. Equipped with 24V DC booster pump 30W power, 1.2 GPM flow, solenoid valve, smart controller, digital TDS display, and filter change alert.

Construction uses transparent polysulfone housings 80 bar pressure rating with corrosion-resistant brass fittings. Mineralizer stage adds calcium, magnesium, and potassium, raising pH to 8.5-9 while improving taste. Features automatic membrane flushing, high/low pressure cut-off protection, and water leak sensor. System efficiency is 1:1.5 permeate to wastewater with A++ energy rating per European standards. Removes 99.9% chlorine, fluoride, arsenic, lead, and coliform bacteria certified to NSF/ANSI 58, 53, and 372. Easy under-sink installation with 12-liter BPA-free polyethylene storage tank included.

filter

Activated carbon filters are made from granular activated carbon GAC or compressed blocks derived from coconut or coal. Their effective adsorption surface area ranges from 500 to 1500 m²/g with pore sizes of 10–20 Å. Typical filtration rating is 5 microns for removing chlorine, volatile organic compounds VOCs, and unpleasant tastes/odors. Maximum operating pressure is 8 bar 116 psi at temperatures from 5 to 45°C. Nominal flow rates are 8 to 15 L/min with a pressure drop below 0.6 bar under standard conditions. Effective service life reaches up to 6 months or 10,000 liters based on NSF Standard 42.

The filter structure includes a 2 mm thick polypropylene shell and an activated carbon core with a density of 0.45 g/cm³. The connection system uses 1/4-inch quick-connect fittings with food-grade silicone gaskets. This filter achieves 99% chlorine reduction, 95% organic compound removal, and up to 98% lead removal. Compact design enables installation in limited spaces under sinks or in main water lines. The housing is BPA-free and certified per NSF/ANSI Standards 42, 53, and 401. Selective adsorption preserves beneficial minerals in water while removing contaminants.

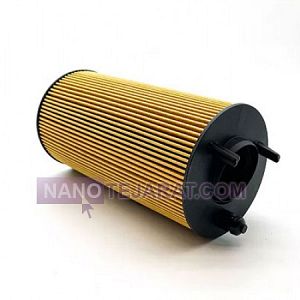

Volvo 24063074 Oil Filter

The Volvo 24063074 oil filter is designed to ensure optimal performance of diesel engines and extend equipment lifespan. This filter is made of multi-layer synthetic fibers with over 99% filtration efficiency and can remove solid particles down to 15 microns. The recommended operating pressure ranges from 1.5 to 3.0 bar, and its operating temperature varies from -20 to +120 degrees Celsius. Its robust construction prevents deformation during use, and its internal design ensures a consistent oil flow. These features reduce engine component wear and lower periodic maintenance costs.

The dimensions of the Volvo 24063074 oil filter include an outer diameter of 90 mm, a height of 150 mm, and an inner diameter of 45 mm. Its approximate weight is 0.7 kg, with an oil holding capacity of about 1.2 liters. It has a standard M20x1.5 threaded connection and is fully compatible with Volvo diesel engine oil systems. The service life ranges from 3,000 to 5,000 hours depending on operating conditions or according to recommended oil change intervals. These specifications make the 24063074 filter a preferred choice for engineers and professional mechanics to maintain engine efficiency.

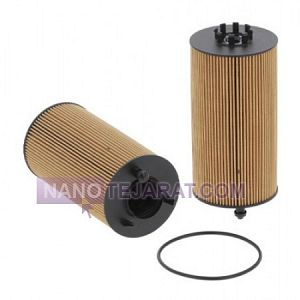

Volvo 24063084 Oil Filter

The Volvo 24063084 oil filter is designed to ensure optimal engine performance and extend equipment lifespan. This filter is made of multi-layer synthetic fibers with a filtration efficiency of over 99% and can remove solid particles down to 15 microns. The recommended operating pressure ranges from 1.5 to 3.0 bar, and its operating temperature can vary from -20 to +120 degrees Celsius. The filters robust construction prevents deformation during use, and its internal design ensures a consistent oil flow. These features reduce engine component wear and lower periodic maintenance costs.

The dimensions of the Volvo 24063084 oil filter include an outer diameter of 95 mm, a height of 155 mm, and an inner diameter of 46 mm. Its approximate weight is 0.75 kg, and it has an oil holding capacity of about 1.3 liters. The filter features a standard M20x1.5 threaded connection and is compatible with Volvo diesel engine oil systems. Its service life ranges from 3,000 to 5,000 hours or according to recommended oil change intervals. These specifications make the 24063084 filter a preferred choice for engineers and professional mechanics to maintain engine efficiency.

filter

The household water filter comprises three main stages: 5-micron polypropylene PP pre-filter, granular activated carbon GAC filter, and reverse osmosis RO membrane. Standard unit dimensions are 45 × 35 × 20 cm with a dry weight of 8–10 kg. Effective operating pressure ranges from 2 to 6 bar 29–87 psi at temperatures of 5–40°C. Production capacity is 180–300 liters of purified water per day with a 1:3 efficiency ratio permeate to wastewater. This system removes 99% of suspended solids, chlorine, heavy metals, nitrates, and bacteria.

The structure includes an ABS pressure vessel with 40 kJ/m² impact resistance and five standard 10-inch filter housings. A 24V DC booster pump with 0.8 GPM flow rate and minimum 5 psi pressure ensures optimal RO membrane performance. An automatic 4-way solenoid valve 100,000 mechanical cycles and a smart controller with TFT touch display are integrated. The final stage typically uses a carbon block or mineral filter to balance pH and add beneficial minerals. The entire system is certified per NSF/ANSI 58, 53, and ISO 9001:2015 standards, designed for under-sink installation.

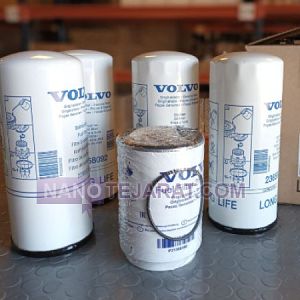

Volvo generator lube filter

The VOLVO diesel generator oil filter features a multi-layer microfiber paper structure capable of removing solid particles down to 5 microns. Its particle retention efficiency exceeds 99 percent, protecting the oil pump and engine bearings from wear. The average pressure drop at a standard flow of 60 liters per hour is less than 0.15 bar, ensuring uniform oil flow across all engine components. The filter’s mechanical strength is designed to withstand up to 200 kPa and maintain stable operation between 30 and 120 degrees Celsius. Recommended service life is up to 500 continuous operating hours or aligned with the engine’s regular oil change schedule.

VOLVO’s filtration system includes a pre-filtration layer for larger particles and a final layer for finer contaminants, capturing carbon deposits and micro metal particles. Its internal hydrodynamic design guarantees steady oil flow and reduced pressure fluctuations. The filter is manufactured to ISO 4549-1 and SAE J1858 standards, improving engine durability by up to 20 percent. The metal particle absorption capacity is designed up to 1 gram per 10-inch filter.

filter

The carbon block filter is manufactured from compressed activated carbon granules derived from coconut or coal sources. Standard size is 10 inches with an outer diameter of 6.5 cm and length of 25.4 cm. Carbon density ranges between 50 to 60 grams per inch with an effective surface area of 1000 m²/g. Filtration rating is 5 microns for removing chlorine, volatile organic compounds VOCs, and unpleasant tastes/odors. Safe operating pressure is up to 8 bar 116 psi at temperatures of 5 to 45°C. Nominal flow rate is 8 liters per minute with a pressure drop below 0.7 bar at end-of-life.

The filter structure features a monolithic carbon block with an outer polypropylene wrap to prevent channeling. The core is polyethylene with 1 mm perforations for uniform water distribution. Connections are standard Quick-Connect type with 1/4-inch size and food-grade silicone O-rings. This filter achieves 99% chlorine reduction, 95% sediment removal, and up to 98% lead reduction. Effective filter life is up to 6 months or 7500 liters of water based on NSF Standard 42. The filter housing is BPA-free, environmentally friendly, and recyclable.

Forklift hydraulic filter

The forklift hydraulic filter features a filtration capacity ranging from 5 to 20 microns, effectively removing suspended particles from hydraulic oil. These filters typically operate at pressures up to 25 bar and withstand temperatures between -20 to 110 degrees Celsius. The filtration elements are made from cellulose or synthetic fibers with a filtration surface area up to 1 square meter, enabling precise filtration and extending the hydraulic system’s service life. The filter housing is constructed from corrosion-resistant metal, ensuring protection against industrial vibrations and harsh environments.

Additionally, forklift hydraulic filters have a service life between 800 and 1500 hours and are designed according to ISO 16889 standards. This certification guarantees optimal filtration performance and mechanical durability under demanding operating conditions. Engineering design and high-quality materials enhance hydraulic system efficiency while reducing maintenance and repair costs in industrial settings. Proper filter selection can increase the lifespan of pumps and valves by up to 30 percent.

sepahan gas oil separator fuel filter

The Sepahan forklift diesel fuel water separator filter is made of polyester and cellulose fibers and can remove up to 99 percent of water from fuel. Standard operating pressure ranges from 2 to 5 bar, with an operating temperature between -20 and 120 degrees Celsius. Fuel flow capacity ranges from 50 to 100 liters per hour, with an initial pressure drop below 0.2 bar. The filter housing is made of stainless steel or durable plastic to withstand system shocks and vibrations. Silicone and nitrile seals prevent fuel leakage and increase system longevity.

Internally, the filter has a two-stage separation chamber the first stage removes particles larger than 10 microns, and the second efficiently separates water from fuel. Outlet connections use standard M18 or M22 threads and feature an internal bypass valve to prevent engine starvation under high contamination. A transparent water collection bowl allows easy monitoring and replacement. Service life is 500 to 1200 operating hours or 12 months, depending on environmental conditions. The product is manufactured according to ISO 4020 and SAE J905 standards.

filter

This filtration system features 5 stages: 5-micron PP sediment filter, GAC filter, carbon block filter, RO membrane, and post-carbon filter. Dimensions are 40×30×20 cm with 9 kg weight and 180 liters daily production capacity. Optimal operating pressure is 3.5–5.5 bar 50-80 psi with inlet water temperature of 5–45°C. Polyamide TFC membrane achieves 98% rejection rate for TDS, nitrates, lead, and arsenic down to 0.0001 microns. Includes 24V DC booster pump 25W power, 0.8 GPM flow with solenoid valve and smart controller with digital TDS display.

Construction uses transparent polycarbonate housings 60 bar pressure rating and brass quick-connect fittings. Post-carbon coconut shell carbon filter enhances taste/odor and stabilizes pH to 7.5. Features automatic membrane flush, filter change alerts, and leak protection. Energy rating A+ with advanced 1:2 wastewater to purified water ratio. Removes 99.9% bacteria, viruses, chlorine, and heavy metals per NSF/ANSI 58 & 53 standards. Optional UV sterilizer and mineralizer available for final disinfection and mineral enrichment.

Fleetguard FS19763 diesel fuel water separator filter

The Fleetguard FS19763 diesel fuel water separator filter is engineered with advanced separation technology and can remove solid particles down to 5 microns. This filter has approximate dimensions of 93 millimeters outer diameter and 209 millimeters height, and uses a 1-14 UNS thread connection. Its separation efficiency reaches up to 98 percent in removing free water and diesel fuel contaminants. The maximum allowable operating pressure is 1034 kilopascals, and its operating temperature range is specified between -40 and 100 degrees Celsius.

The Fleetguard FS19763 diesel fuel water separator filter is designed to extend the service life of the fuel system and protect the engine’s pump and injectors. Its nominal flow rate is approximately 114 liters per hour, and it maintains stable performance under vibration and variable pressure conditions. The steel housing with anti-corrosion coating and the internal element made of cellulose and blended fibers provide resistance against high-sulfur fuels. The built-in water trap system with manual drain allows easy removal of separated water.
