10mm elevator wire rope

The Chinese-made 10 mm elevator wire rope with fiber core is suitable for light to medium-duty lifting systems. This rope is typically manufactured in a 6x19 or 6x37 construction, meaning six strands with 19 or 37 wires per strand. The nominal diameter of 10 millimeters provides a tensile strength ranging from 55 to 65 kilonewtons, making it suitable for elevator cabins carrying up to 800 kilograms in 2:1 suspension systems. The fiber core increases flexibility, reduces friction, minimizes vibrations during operation, and extends the service life of the rope.

The approximate weight per meter of the 10 mm wire rope is about 0.41 to 0.44 kilograms, making it suitable for sheaves with a minimum diameter of 400 millimeters. The WLL Working Load Limit is between 450 and 550 kilograms, while the MBL Maximum Breaking Load ranges from 36,000 to 42,000 newtons. These specifications ensure safe and reliable performance under continuous operation and intermittent loading conditions.

The outer wires of the 10 mm elevator wire rope are made of carbon steel with a tensile strength of 1570 to 1770 N/mm². The elongation under tensile load is approximately 2 to 2.5 percent, and the recommended safety factor is between 8 and 12. These characteristics make the 10 mm fiber core Chinese wire r

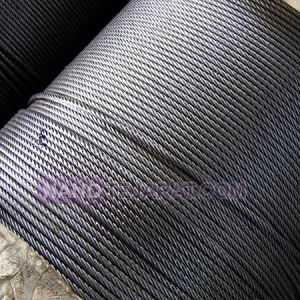

Elevator wire rope

The elevator wire rope with a hemp core is a critical component for transmitting force and moving elevator cabins in traction systems. It is made of carbon steel with tensile strength ranging from 1570 to 1770 N/mm². Outer wire diameters typically range from 8 to 16 mm, and constructions such as 6x19 or 8x19 are chosen to enhance flexibility and reduce wear. The soft hemp core, impregnated with industrial oil, provides internal lubrication and reduces friction between strands. Standard safety factors range from 6:1 to 8:1, and uniform stress distribution increases service life.

Structurally, the elevator wire rope consists of steel strands twisted around the hemp core, providing both flexibility and radial strength for long-term operation. The rope surface is treated with protective oil or industrial coating to prevent corrosion and rust. Standard rope lengths, customized according to elevator height, range from 50 to 300 meters. This wire rope is suitable for residential and commercial traction elevators, hydraulic cabins, and industrial lifts, delivering stable performance in operating temperatures from −20°C to +80°C.

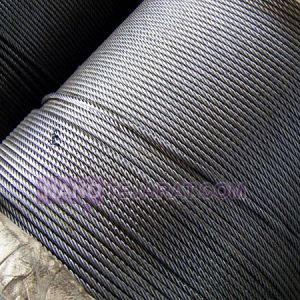

Elevator Wire Rope

Elevator wire rope is a precision steel cable designed for suspension and movement systems in elevators. These wire ropes are commonly manufactured in 8x19 or 8x25 constructions with either fiber core or steel core. The diameter typically ranges from 6.5 to 13 mm, while tensile strength falls between 1570 and 1770 N/mm². High flexibility, uniform load distribution, and controlled friction with the sheave are key characteristics. The wires are usually lubricated to reduce wear and corrosion.

Structurally, elevator wire ropes are produced with precise diameter tolerance and controlled lay to minimize vibration, noise, and uneven wear. They are manufactured according to international standards such as EN 12385 and ISO 4344 and offer long service life under continuous operating cycles. High quality steel wires, uniform heat treatment, and fatigue resistance significantly enhance elevator system safety. Elevator wire ropes are widely used in traction elevators, indirect hydraulic lifts, and industrial hoisting systems.

19×8 Elevator Wire Rope with Seale Core

The 19×8 elevator wire rope with a Seale core is designed for elevator hoisting and vertical transport systems, providing high safety and durability. The rope consists of 19 main strands, each made of 8 abrasion-resistant steel wires, with a Seale core that enhances abrasion and lateral pressure resistance. Rope diameters typically range from 8 to 12 mm, with nominal tensile strength between 1570 and 1960 MPa, and a design safety factor of 8 to 12.

The Seale steel core and uniform strand lay provide torsional stability and reduce metal fatigue. The smooth outer surface ensures efficient operation on sheaves and grooves while reducing wear on elevator cabin guides. Standard coil lengths range from 50 to 100 meters, with galvanized or lubricated finishes for corrosion and moisture resistance. This rope is ideal for residential and commercial elevators, hydraulic and traction lifts, and vertical transport systems, ensuring safe and smooth cabin movement.

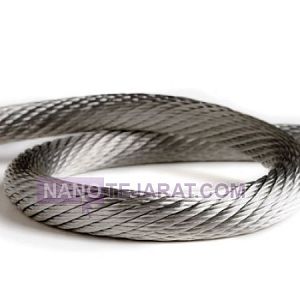

Elevator wire rope

Elevator wire rope is a multi-strand steel cable used for safely lifting and lowering elevator cabins. Wire diameters typically range from 4 to 12 millimeters, with strand configurations from 6×19 to 8×19, providing optimal flexibility and tensile strength. Tensile strength usually ranges between 20 and 60 kN. Galvanized or stainless steel coatings prevent corrosion and abrasion. Strand design with a steel or polyamide core ensures a balance of flexibility and long service life.

Structurally, elevator wire rope consists of a strong central core, outer steel layers with standard lay, and protective coatings. Standard lengths range from 20 to 200 meters, compatible with drum diameters and guide pulleys. High abrasion resistance and dynamic fatigue endurance are key characteristics. These wire ropes are designed according to ISO and EN international standards and can be used in both dry and humid environments.

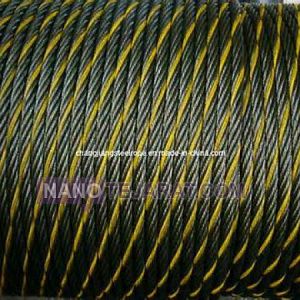

8X19+FC elevator wire rope

Elevator wire ropes usually are manufactured following 8X19 structure and in various tensile. in most cases elevator wire ropes are used with 1560 and 1770 N/mm2 of tensile. both fiber core and metal core elevator wire ropes are available.

elevator wire rope with fiber core

Elevator cabin wire rope is available both with fiber core and with metal core and is used more often with the diameter of 8 to 13 mm.
