Trolley

2 ton chain electric hoist with trolley

The 2-ton electric chain hoist with motorized trolley, 4-function type lifting up, lowering down, forward travel, and backward travel is manufactured in China and designed for medium-duty industrial applications. The unit is equipped with a high-efficiency three-phase induction motor, typically operating at 380V/50Hz, with a thermal protection system to prevent overheating. Its lifting speed is generally in the range of 6–8 m/min, while the traveling trolley moves horizontally at approximately 10–20 m/min, depending on the model. The gearbox is constructed with hardened alloy steel gears for improved durability, and the load chain is made of Grade 80 alloy steel to ensure maximum tensile strength. Safety features include an electromagnetic brake, upper and lower limit switches, and overload protection for reliable operation.

This type of hoist is widely used in factories, assembly lines, metal workshops, construction warehouses, and maintenance facilities where safe and efficient material handling is required. Its 4-function capability allows both vertical and horizontal load movement, making it ideal for overhead beam systems and production halls with limited space. The motorized trolley enables precise positioning of heavy components up to 2,000 kg, reducing manual handl

TOYO 5 ton hoist and trolley

The TOYO 5-ton electric chain hoist, four-function, dual-speed model, has a nominal lifting capacity of 5000 kg and a motor power of approximately 5.5 to 7.5 kW. The lifting system operates in two-speed modes, with a low speed of about 3 m/min and a high speed of about 6 m/min. The load chain is made of heat-treated alloy steel with a diameter of 11 to 13 mm and a standard lifting height of 6 to 12 meters, ensuring high tensile strength.

The chain used in this hoist is typically grade G80 or G100, manufactured according to EN 818 standards, providing excellent strength for heavy-duty applications. The safety factor for both the chain and lifting mechanism is generally between 1.25 and 1.5 times the rated capacity, which increases operational reliability. The four-function design includes lifting up, lowering down, and trolley movement in left and right directions, offering high flexibility in material handling.

Industrial applications of the TOYO 5-ton dual-speed hoist include steel plants, automotive workshops, heavy equipment manufacturing, ports, and large-scale construction projects. Its dual-speed feature enables precise handling of sensitive loads at low speed and faster operation for general loads at high speed. An electromagnetic brake, overload limiter, and motor t

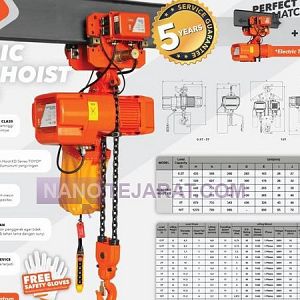

TOYO 3 ton dual hoist with trolley

The TOYO 3-ton electric chain hoist, 4-function dual-speed model with trolley, has a rated capacity of 3000 kg and is powered by an electric motor of approximately 5.5 to 7.5 kW. Its dual-speed lifting system provides a low speed of about 3 meters per minute and a high speed of about 6 meters per minute, allowing precise and fast handling of heavy loads. The load chain is made of heat-treated alloy steel with a diameter of 10 to 12 mm, and the standard lifting height ranges from 6 to 12 meters. A forged steel hook with a safety latch ensures secure load handling.

The chain used in this hoist is manufactured according to EN 818 standards in industrial grade G80 or G100, offering high resistance to tensile stress and mechanical shocks. The trolley is designed to operate along IPE or INP beams and is suitable for spans of 2 to 6 meters. Steel wheels with durable bearings ensure smooth, vibration-free travel, while the reinforced trolley frame prevents deformation under continuous load.

The safety factor of the TOYO 3-ton chain hoist is typically between 1.25 and 1.5 times the nominal capacity, equivalent to a test load of 3750 to 4500 kg. An electromagnetic brake, overload limiter, and motor thermal protection enhance safety and durability. This hoist is widely used in steel i

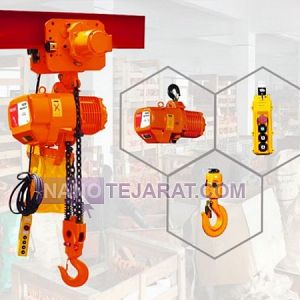

1 ton toyo hoist with trolley

The TOYO 1-ton electric chain hoist, four-function single-speed model, is designed with a rated lifting capacity of 1000 kg and is powered by an electric motor of approximately 1.5 to 2 kW. Its lifting speed in single-speed mode is around 6 to 8 meters per minute, making it suitable for handling medium-weight loads. The load chain is manufactured from heat-treated alloy steel with a diameter of 6 to 8 mm, and its standard lifting height typically ranges from 3 to 6 meters depending on the application.

The chain of this hoist is produced according to EN 818 standards with industrial grade G80, ensuring resistance against continuous loads and mechanical shocks. The trolley designed for this model operates along IPE or INP beams and is generally suitable for spans of 2 to 6 meters. Steel wheels equipped with durable bearings ensure smooth movement with minimal friction, while the reinforced trolley frame prevents deformation under load.

The safety factor of the TOYO 1-ton electric hoist is defined between 1.25 and 1.5 times the rated capacity, equivalent to a test load of 1250 to 1500 kg. Combined with an electromagnetic brake and overload limiter, this ensures maximum safety in industrial environments. Typical applications include machining workshops, assembly industries, lig

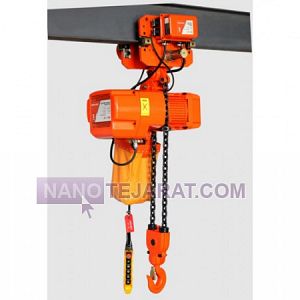

TOYO 5 ton single speed hoist with trolley

The TOYO 5-ton electric chain hoist, 4-function single-speed model with trolley, has a rated capacity of 5000 kg and is powered by an electric motor of approximately 7 to 8 kW. Its single-speed lifting system operates at about 5 meters per minute, suitable for handling heavy loads with moderate precision. The load chain is made of heat-treated alloy steel with a diameter of 12 to 14 mm, and the standard lifting height ranges from 6 to 12 meters. A forged steel hook with a safety latch ensures stable and secure load handling.

The chain used in this hoist is manufactured according to EN 818 standards in industrial grade G80 or G100, providing high resistance to tensile stress and mechanical shocks. The trolley is designed for IPE or INP beams, allowing horizontal movement of loads. Steel wheels with durable bearings ensure smooth, vibration-free travel, while the reinforced trolley frame prevents deformation under continuous loads.

The safety factor of the TOYO 5-ton chain hoist is typically rated between 1.25 and 1.5 times the nominal capacity, equivalent to a test load of 6250 to 7500 kg. An electromagnetic brake, overload limiter, and motor thermal protection enhance safety and durability. This hoist is widely used in steel industries, assembly workshops, large constructio

500kg hoist with trolley

The TOYO 0.5-ton electric chain hoist, 4-function single-speed model, has a rated lifting capacity of 500 kg and is powered by an electric motor of approximately 1 to 1.2 kW. Its lifting speed in single-speed mode is around 6 to 7 meters per minute, making it suitable for handling light to medium loads. The load chain is made of heat-treated alloy steel with a diameter of 5 to 6 mm, and the standard lifting height typically ranges from 3 to 6 meters. A forged steel hook with a safety latch ensures secure load handling.

The chain used in this hoist is manufactured according to EN 818 standards and usually in G80 grade, providing excellent resistance to tensile stress and sudden shocks. The trolley is designed for use on IPE or INP beams, enabling horizontal movement in two directions. Steel wheels equipped with high-quality bearings ensure smooth travel, while the reinforced trolley frame prevents deformation under continuous load.

The safety factor of the TOYO 0.5-ton hoist is defined between 1.25 and 1.5 times the rated capacity, equivalent to a test load of 625 to 750 kg. An electromagnetic brake and overload limiter enhance operational safety, while motor thermal protection prevents damage from excessive loading. This model is highly efficient and economical for assembly

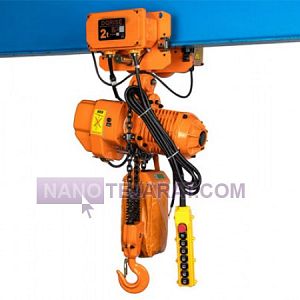

toyo 2 ton hoist with trolley

The 4-way two-speed electric crane with a 2-ton capacity from TOYO features a rail trolley system, enabling smooth horizontal movement along tracks up to 15 meters. Its dual-speed hoist allows lifting speeds of 4 and 8 meters per minute, adapting to precise or rapid load handling. The crane’s motor is rated at 3.7 kW with 380 volts supply, delivering high torque and reliable performance under continuous operation. The steel frame, 5 mm thick with anti-corrosion coating, provides 420 MPa tensile strength and resistance to bending and torsion. The expected service life of the motor and wire rope under standard working conditions reaches approximately 8000 hours.

Equipped with a remote control operating within 20 meters, the crane achieves positioning accuracy of ±2 centimeters. Full-load current consumption is 12 amperes, and system efficiency reaches 90 percent. Overload protection up to 110 percent of nominal capacity and integrated thermal sensors ensure operator safety. Easy maintenance is supported by direct access to mechanical and electrical components, minimizing downtime and reducing repair costs, making this crane suitable for industrial and workshop applications.
