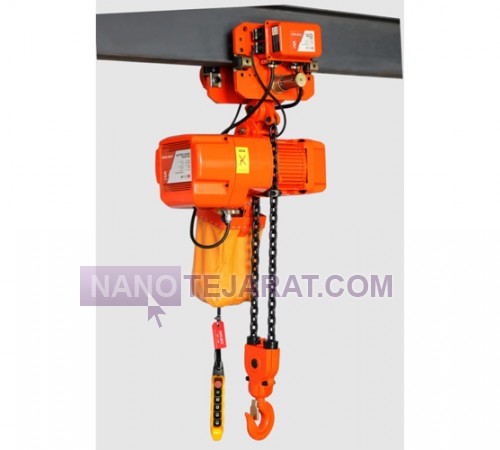

The TOYO 5-ton electric chain hoist, four-function, dual-speed model, has a nominal lifting capacity of 5000 kg and a motor power of approximately 5.5 to 7.5 kW. The lifting system operates in two-speed modes, with a low speed of about 3 m/min and a high speed of about 6 m/min. The load chain is made of heat-treated alloy steel with a diameter of 11 to 13 mm and a standard lifting height of 6 to 12 meters, ensuring high tensile strength.
The chain used in this hoist is typically grade G80 or G100, manufactured according to EN 818 standards, providing excellent strength for heavy-duty applications. The safety factor for both the chain and lifting mechanism is generally between 1.25 and 1.5 times the rated capacity, which increases operational reliability. The four-function design includes lifting up, lowering down, and trolley movement in left and right directions, offering high flexibility in material handling.
Industrial applications of the TOYO 5-ton dual-speed hoist include steel plants, automotive workshops, heavy equipment manufacturing, ports, and large-scale construction projects. Its dual-speed feature enables precise handling of sensitive loads at low speed and faster operation for general loads at high speed. An electromagnetic brake, overload limiter, and motor thermal cut-off enhance safety and durability. These characteristics make the hoist highly reliable for continuous operation in demanding industrial environments.
