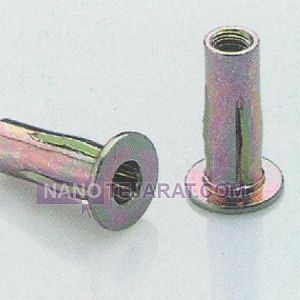

Flanged Rivet Nut

Flanged rivet nuts are manufactured in three primary material families including carbon steel, stainless steel, and aluminum. Carbon steel typically uses grades 1008 or 1010 with yellow zinc chromate coating according to standard industrial plating methods. Stainless steel comes in two austenitic grades including A2 for general environments and A4 for superior resistance against marine and chemical corrosion. Aluminum grades 5056 or 6061 are used for lightweight applications in aerospace and transportation industries. The main production standards for these components include ISO 15983 and DIN 7337 for large flange types. Aerospace specifications NAS1329 and NAS1330 are also defined for applications requiring tight tolerances and high quality control.

Nominal sizes of these nuts range from M3 to M12 in the metric system and from 4-40 to 1/2 inch in the imperial system. Flange diameter for size M4 equals 9 millimeters while size M8 reaches approximately 16 millimeters. Flange thickness varies between 1.0 to 2.0 millimeters depending on size to ensure proper clamping force distribution. Tensile strength for a carbon steel M8 sample reaches approximately 5700 Newtons with shear strength around 4900 Newtons. Grip range for each nut depends on its body length; for example an M6 nut


pichsazan	021-55413167

pichkarantalash

Iran

021-55425093

Rivets

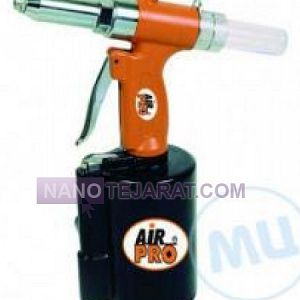

A rivet is a permanent mechanical fastener used to join two or more components in metalworking, aerospace, and construction. Rivet diameters typically range from 2 to 25 mm, with lengths from 6 to 150 mm. Materials include carbon steel, stainless steel, aluminum, or copper, often heat-treated or coated for corrosion resistance, providing tensile strength between 300 and 1000 MPa. Rivets can withstand tensile, shear, and combined loads, and are installed using manual or pneumatic riveting tools.

Structurally, a rivet consists of a cylindrical body, head, and tail, which deforms under pressure or impact to form a permanent joint. Rivets are manufactured as solid or hollow blind/pop types. Their mechanical strength and stability make them widely used in metal structures, vehicle bodies, aircraft, and industrial machinery, providing a secure, non-removable connection without screws or nuts.
