Pallet Jack

Modern pallet jacks are constructed from a robust steel chassis utilizing robotic welding methods to ensure maximum tensile strength . The overall length of this equipment ranges from 1740 mm for compact models to 1934 mm . The standard width is 685 mm and the height is 1260 mm . Forks are designed with a thickness of 53 mm and a length of 1220 mm, with a fork gap of 160 mm . The wheel system includes polyurethane load wheels with a diameter of 76 mm and steer wheels with a diameter of 177 mm, featuring a 200-degree steering arc for maneuvering in tight spaces . The minimum fork height in the lowered position is 75 mm and the maximum lifting height is 190 mm .

The load capacity for industrial models varies from 1200 kg in autonomous mobile robots to 3300 kg in electric variants . The electric drive system utilizes a 48-volt lithium-ion battery with a 15 Ah capacity . The maximum travel speed reaches 1.5 m/s 5.4 km/h, with a continuous operation time of up to 10 hours on a single charge . The turning radius is 1230 mm and the equipment weight is approximately 130 kg . The IP52 protection rating guards against dust and water droplets, while 360-degree laser safety sensors are integrated for emergency stopping .

Types of Pallet Jack

A pallet jack is a manual or semi-automatic material handling tool designed to move and lift heavy loads on pallets. It is typically made of high-strength steel, with standard load capacities ranging from 1 to 5 tons. Fork lengths range from 800 to 1150 mm, and widths from 520 to 680 mm. Manual or pump-driven hydraulic systems allow lifting loads between 200 and 220 mm above the floor. Wheels and rollers are made from durable polyurethane or nylon, ensuring smooth and quiet movement.

Structurally, a pallet jack consists of a pump handle, horizontal forks, a hydraulic pump, and a pressure release system. Types of pallet jacks include manual, semi-automatic, and electric models. Manual pallet jacks rely on hand force and are suitable for short-term use or small warehouses. Semi-automatic jacks use a hydraulic pump to assist the operator in lifting loads more easily. Electric pallet jacks feature battery-powered motors, facilitating movement of heavy loads over extended periods. They are widely used in warehouses, factories, and logistics industries.

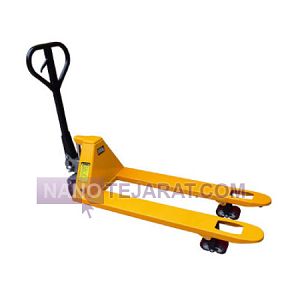

Pallet Jack

The pallet jack is a mechanical device used for lifting and moving palletized loads in warehouses, workshops, and transport industries. It is typically made from hardened alloy steel with high tensile strength, capable of supporting loads from 1 to 5 tons. The design includes a sturdy body, two horizontal forks to position under the pallet, and a hydraulic pump or mechanical lever that allows lifting and lowering the load with minimal manual effort. The forks and body surface are coated for corrosion and wear resistance to ensure durability and long service life.

Structurally, the pallet jack features hardened steel shafts and wheels capable of handling high radial and axial loads. The hydraulic pump or lever system is designed for efficient force application with minimal friction. Fork length, lifting height, load capacity, and movement angle vary depending on the model. It operates reliably within minus 20 to plus 50 degrees Celsius. Each unit undergoes proof load testing and quality inspection before use to ensure safety and durability.

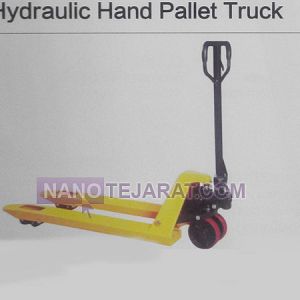

Pallet jack

Iranian pause tool for the supply of all kinds of pallet jacks. The pallet jack is a practical tool for transporting and moving all kinds of loads on wooden, plastic, iron pallets, etc. in small environments such as stores, warehouses, pharmacies, as well as larger environments such as factories and workshops in different and appropriate modes. It is designed and produced with their specific type of use
