PVC Coated Wire Rope

body building pvc coated wire rope

The coated gym wire rope with a 6x19 construction is one of the most widely used types of wire ropes in fitness and gym equipment, as it provides a balanced combination of high flexibility and adequate abrasion and fatigue resistance. This rope consists of six main strands, each containing 19 individual wires, a configuration that maintains tensile strength while minimizing twisting or kinking during use. Its protective coating, typically made of PVC or polyurethane, plays a critical role in extending the rope’s lifespan, protecting users’ hands, and guarding against moisture, dust, and corrosion. Due to these features, the 6x19 coated wire rope is ideal for fitness machines such as cable pull systems, pulley stations, and free-weight attachments.

In addition to high durability and safety, the 6x19 coated gym wire rope can withstand dynamic loads and repeated stress, and it is fully compatible with standard attachments and components used in fitness equipment. Available in various diameters and lengths, it allows gyms and users to select the optimal rope according to their machine specifications and training intensity. The soft, resilient coating not only prevents corrosion but also enhances user comfort and safety, while making maintenance and replacement simple and cost-

7mm PVC coated wire rope

The coating of the wire rope, which is often done for the lower sizes of the steel wire rope, is done to create a soft, non-metallic layer and to protect the surface of the tow wire from one side and to prevent skin injuries from the other side. Coated tow wire in size 5 to 7 is often used to connect devices such as cross, crunches and other bodybuilding devices. Coated wire rope size 5 to 7 is actually used to connect the handle to the weight stones and one or more pulleys are used for the smooth movement of the tow wire in the connection. The constant movement of the coated towing wire under heavy load on the reel brings both surface wear on the coating of the steel wire rope and causes the permanent change of the coated ropes shape under successive cycles.

6mm PVC coated wire rope

Coated pull-up cords in various sizes are often used in gyms. Coated wire rope can be found in the market both in imported coated form and in domestic coated form, which foreign imported samples often have higher quality and price. Coated wire rope is used in gyms on machines to connect weights and handles and passes over one or more pulleys during use.

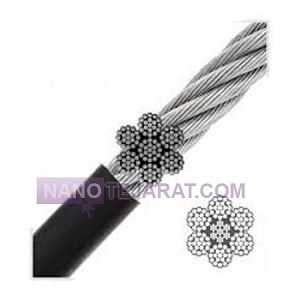

The core of coated towing wire is made of steel and is often used with a tensile strength of 1770 N/mm2. The most widely used structure of tow wire that is used in coated wire rope core is the structure of 6 strands with 19 wires, which is displayed as 6X19.

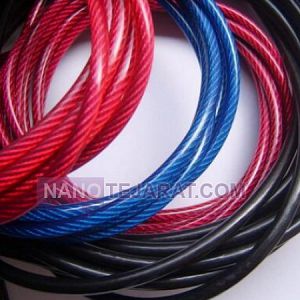

pvc coated wire rope

The steel wire rope cover is used as a layer to protect the wire rope and is a cover for the wire rope against factors such as burns and moisture, etc.
In pvc coated wire rope, a pvc coating with different thicknesses and different colors is stretched.
In fact, this cover is to prevent direct contact of the body skin with the wire rope and is the best option for various and heavy sports machines in gyms.
These coatings are widely used in cables and wires due to their resistance to ultraviolet rays and other factors.

gym PVC coated wire rope

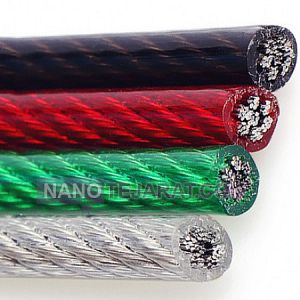

PVC coated wire rope actually consists of a steel core on which a PVC plastic layer is placed. Coated towing wire is often used in low sizes and plays a connecting role. Coated tow wire is used in various applications, but its main use is for connection in gyms and on exercise machines. The coated wire rope is connected to the weight stones on one side in the use of a club, and by passing through the pulley method, it is connected to the handle that is held by the athletes on the other side.

5mm pvc coated wire rope

Coated tow wire in size 3 to 5 actually has a steel core with a diameter of 3 mm, which has reached a final diameter of 5 mm by placing a plastic cover made of PVC material.
3 to 5 coated towing wire in the steel core part can be supplied with different structures such as 7X7 and 6X19, the 6X19 structure is used with higher flexibility and wider usage. Coated tow wire in sizes 3 to 5 is often imported from China in Rayan Bexal and domestically, which is actually coated with plastic in Iran.

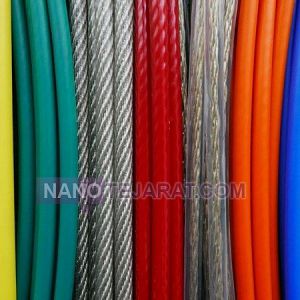

PVC coated wire rope

PVC coated wire ropes are used more often in gym and to connect the weights to the gym equipment. PVC coated wire ropes usually have the 7X7 structure wire rope as core in lower diameters and 19X7 wire rope as core in higher diameters. various colors are used to coat PVC coated wire ropes that have equal resistance and do not represent any specification.
