Search Results For Nipple drinker

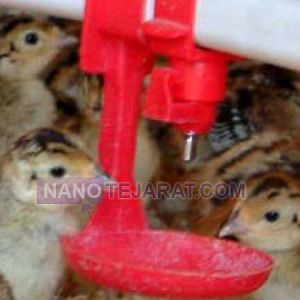

Nipple drinker

The nipple drinker is an automatic water supply system used in poultry farms to provide hygienic water and control consumption. Operating pressure ranges from 0.1 to 0.4 MPa. Flow rate per nipple is designed between 50 and 120 ml per minute. The nipple body is made of stainless steel or corrosion resistant engineering plastic. Water transfer pipe diameter typically ranges from 20 to 25 mm. Each nipple can supply water for 8 to 12 birds. The operating system is based on a pressure sensitive valve activated by beak contact.

Structurally, the nipple drinker includes an internal valve, moving pin, sealed body, and water distribution pipe. The sealing design prevents water leakage and environmental contamination. Installation on farm water lines is performed using standard fittings. Height adjustment is provided for different poultry ages. The modular structure allows easy cleaning and maintenance. Designed according to ISO and CE hygiene standards, the system reduces water consumption and losses.


jam-no	021-76212750

jam-no

Iran

021-76212750

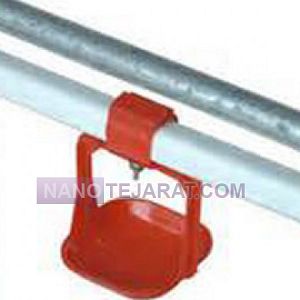

Nipple drinker

The nipple drinker is an automatic and hygienic system for providing fresh water to poultry. Operating pressure ranges from 0.2–0.5 bar, with each nipple delivering 60–120 ml per minute. Standard spacing between nipples is 10–25 cm, and line lengths vary from 10–50 meters. The body and nipples are made of high-density plastic or polymer resistant to heat, moisture, and bird digestive acids for durability.

Structurally, the system includes main PVC or polyethylene pipes with 20–32 mm diameter, spring-loaded drip-proof nipples, and multi-layer filters to remove suspended particles. Quick installation with durable clamps and easy connection to automated ventilation and feeding systems is possible. Smooth, corner-free design reduces microbial growth and prevents water wastage. This drinker ensures uniform bird growth, water conservation, and easy farm management.
