Hood

The Uranous hood model is made of 304-grade stainless steel with a thickness of 0.9 mm. Its large dimensions are 1500 x 700 mm with a designed height of 400 mm. This model features two three-speed motors with a combined power of 450 watts. Its maximum suction power is 1300 cubic meters per hour at 220 Pa static pressure. The noise level at the lowest setting is recorded at only 42 decibels. Standard installation includes five-layer aluminum filters with a nano anti-grease coating.

This hoods structure utilizes a two-stage centrifugal separator system. The full touch control panel is equipped with a 5-inch color TFT display. Illumination is provided by 6-watt LED lights with adjustable color temperature. The programmable smart timer can be set from 1 minute to 2 hours. An activated carbon filter coated with silver nanoparticles is installed for air disinfection. A 200 mm diameter chimney connection with an automatic electric damper is provided in this model.

Hood

The Zomorrod hood model is manufactured from 0.8 mm thick 304-grade stainless steel. Its installation dimensions are 1200 x 600 mm with a 1000 mm chimney height. This model is equipped with two 230-watt motors featuring four adjustable speeds. Combined maximum suction power is 1300 cubic meters per hour. System static pressure reaches 200 Pa at maximum performance. Noise level at the lowest setting is limited to 48 decibels. Double-layer aluminum filters with 1.5 mm thickness are utilized.

The chimney structure features an automatic lift mechanism with remote control. Four 6-watt LED lights with dimming capability are installed on each side. The control panel is a color touchscreen with pre-set programs. Smoke and temperature detection sensors are designed for automatic speed activation. The chimney connection is 180 mm diameter with a quick magnetic attachment. The activated carbon filter features a nano-silver coating for antibacterial properties.

Hood

Ilia Steel hoods with touch panels are made from 304-grade stainless steel, 0.7 to 1.0 mm thick. Their typical dimensions range from 600 x 450 mm to 1200 x 600 mm. These models feature 220 to 280-watt motors with three to five speed settings. Maximum extraction capacity is designed from 700 to 1500 m³/h. Operational noise levels are optimized between 45 to 55 decibels. Washable aluminum filters with 0.8 to 1.2 mm thickness are standard.

A capacitive touch control panel with scratch-resistant glass coating is utilized. These panels offer 15 to 60-minute timer functions and child lock features. Integrated LED lights with 3 to 6 watts and 4000K to 6000K color temperature are installed. Steam detection sensors for automatic speed adjustment are available in select models. Chimney connection is via 150 mm or 180 mm diameter with anti-backflow valves. Replaceable activated carbon filters for recirculation mode are supported in all models.

Hood

The HS2013 hood model is manufactured from 0.7 mm thick 304 stainless steel sheet. Its installation dimensions are 900 x 500 mm with a 900 mm chimney height. This model features a 220-watt dual-speed motor with a centrifugal turbine fan. Maximum extraction capacity is 680 m³/h at 160 Pa static pressure. Noise level at the lowest speed is measured at only 47 decibels. Standard washable aluminum main filters are 1.0 mm thick.

The chimney structure features a two-section sliding mechanism for 600-900 mm height adjustment. Two 25-watt halogen lights with heat-resistant glass covers are installed. The control panel is a digital touch type with a 15-minute timer and child lock. The chimney connection uses a 150 mm diameter pipe with an anti-backflow valve. A replaceable activated carbon filter with 120-gram absorption capacity is available for ductless mode. A motor housing acoustic insulation pad reduces vibration levels by up to 40%.

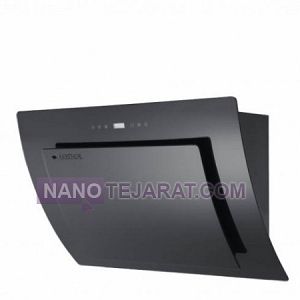

Hood

The Arina hood model is constructed from 0.8 mm thick 304-grade stainless steel. Its standard dimensions are 1000 x 500 mm with a chimney height of 900 mm. This model features a three-speed 250-watt motor with a balanced rotor. Maximum extraction flow is 750 m³/h at 165 Pa static pressure. Noise level at first speed is limited to 45 decibels. Two perforated aluminum filters, 1.0 mm thick, are provided as standard.

The chimney structure comprises two separate sections with a spring-arm height adjustment mechanism. Two 25-watt halogen lights with heat-resistant covers are front-mounted. The control panel is a digital touch type with a programmable timer up to 60 minutes. The lighting system features an automatic cut-off sensor for excess heat detection. The chimney connection is 150 mm diameter with an anti-backflow one-way valve. An activated carbon filter with 150-gram absorption capacity is included for ductless mode.

Hood

The Mitra hood model is made of 304-grade stainless steel with a thickness of 0.6 mm. Its standard dimensions are 900 x 500 mm with an adjustable height of 600 to 900 mm. This model features a dual-speed motor with a power of 220 watts. Its maximum suction capacity is 650 cubic meters per hour at 150 Pa static pressure. The noise level at the lowest speed is only 48 decibels. Standard installation includes washable aluminum filters that are 0.8 mm thick.

The hoods structure features a main duct with a 150 x 200 mm cross-section. The body has a brushed satin finish with high stain resistance. Integrated 4-watt LED lights with a 4000 Kelvin color temperature provide optimal illumination. The model offers a digital touch control system with a 15-minute timer. A replaceable activated carbon filter is designed to absorb unpleasant odors. The chimney connections are 150 mm in diameter and come with an adjustable adapter.

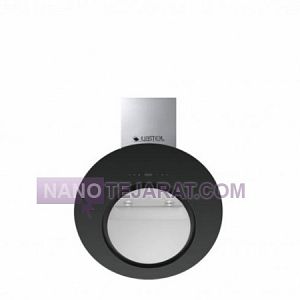

Hood

The Toranj hood model is made from 0.75 mm thick 304 stainless steel sheet. Its installation dimensions are 900 x 450 mm with an 850 mm chimney height. This model utilizes a 220-watt centrifugal motor with three adjustable speeds. Maximum extraction capacity is 700 m³/h at 170 Pa static pressure. The generated noise level at medium speed is measured at 50 decibels. Two washable aluminum filters with fine mesh are standard.

The all-steel chimney structure has a three-section sliding mechanism for height adjustment. Integrated 5-watt LED lights with 6000 Kelvin color temperature provide uniform illumination. The digital touch control panel displays remaining time and speed settings. An alert system notifies when the activated carbon filter requires replacement. The chimney connection uses a standard 150 mm diameter with a one-way valve. The carbon filter features a nano-coating designed for 98% odor absorption.

Hood

The Majic hood model is constructed from 0.7 mm thick 304-grade stainless steel. Its standard dimensions are 1000 x 550 mm with an adjustable height of 700 to 950 mm. This model features a three-speed motor with a maximum power of 280 watts. Its suction capacity reaches up to 800 cubic meters per hour at 165 Pa static pressure. The noise level in quiet mode measures only 44 decibels. This model employs 1 mm thick nano-coated stainless steel mesh filters.

The hoods structure includes a centrifugal separation chamber with 92% efficiency. Control is via a sensitive touch panel with six pre-programmed modes. Illumination is provided by four 5-watt LED lights with adjustable color temperature. A smart timer with 5 time settings from 5 to 60 minutes is included. A washable 150-gram active carbon filter is integrated into this hood. A 150 mm diameter chimney connection with a manual anti-backdraft damper is standard.

Hood

The Royal hood model is constructed from 0.8 mm thick 304-grade stainless steel. Its expansive dimensions are 1200 x 600 mm with a fixed height of 350 mm. This model is equipped with two dual-speed motors with a total power of 320 watts. Its maximum suction capacity is 950 cubic meters per hour at 180 Pa static pressure. The noise level in silent mode measures only 45 decibels. The mesh aluminum filters are designed in two layers, each 1.2 mm thick.

The internal structure features a cyclonic-design grease separation chamber. The control panel is a touch-slide type with an LCD digital display. Adjustable-angle 20-watt halogen lights are integrated into this model. An intelligent timer system adjustable from 1 to 30 minutes is included. An active carbon filter with a 120-gram absorption capacity is installed. The 180 mm diameter chimney connections feature an automatic anti-backdraft damper.

Hood

The Parmis hood model is constructed from 0.8 mm thick 304-grade stainless steel. Its standard dimensions are 900 x 500 mm with an adjustable height of 600 to 900 mm. This model features a dual-speed motor with a power consumption of 220 watts. The hoods maximum suction power is 850 cubic meters per hour in turbo mode. The sound level at the lowest speed measures only 55 decibels. The washable aluminum filters have a mesh size of 0.3 mm.

The chimney structure features an internal polymer anti-grease coating. The control panel is a digital touch interface with four pre-set programs. Two 40-watt halogen lights with adjustable angle are installed. The exhaust system allows connection to a 150 mm diameter duct. The body has rolled edges to collect potential drips and condensation. The exterior surface features a brushed satin finish optimized for scratch resistance.

Hood

The Negin hood model is made of 0.6 mm thick 304-grade stainless steel. Its standard dimensions are 60 by 50 centimeters with a mounting height of 70 cm. This model features a 200-watt dual-speed motor with copper winding. Its suction power is 700 cubic meters per hour with an A+ energy rating. Its sound level in normal mode measures only 48 decibels. The aluminum mesh filters are washable and feature an anodized coating.

Its telescopic chimney structure allows height adjustment from 70 to 120 cm. The control panel includes touch buttons with an LED digital display. 20-watt halogen lights with heat-resistant glass shields are installed. The system can be set for recirculation or direct venting to a 15 cm duct. The interior coating is oil and moisture-resistant polypropylene. The external frame has a satin finish and argon-welded seams for high durability.

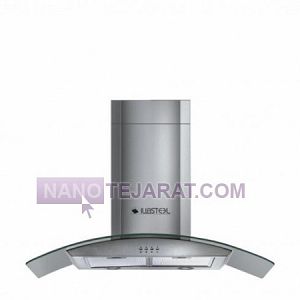

Hood

The Orbital hood model is manufactured from 0.7 mm thick 304 stainless steel sheet. This model measures 1200 x 600 mm with a fixed height of 350 mm. It features two 280-watt dual-speed motors with ball bearings. Its combined maximum extraction capacity is 1100 cubic meters per hour. The system static pressure reaches 180 Pa at maximum speed. The operational noise level in standard mode is measured at 52 decibels.

Its aerodynamic structure features profiled internal ducts to reduce turbulence. The main filters are made from five-layer aluminum, 1.2 mm thick. Two 20-watt halogen lights with IPX4 protection rating are installed on each side. The control panel is a slide touch type with a digital LED display. The central chimney outlet is 200 mm with a 150 mm flexible adapter. A replaceable 3-layer activated carbon filter is designed for recirculation mode.
