End Mill

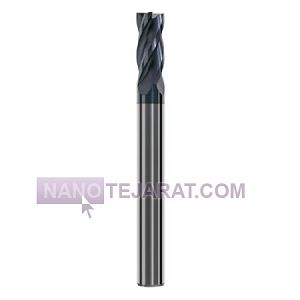

Solid Diamond End Mill Flat End, Ball End, and Radius Tip

Solid diamond end mills with flat end, ball end, and radius tip are manufactured from polycrystalline diamond grains to deliver maximum hardness and wear resistance. Their diameters range from 0.2 millimeters to 12 millimeters, with overall lengths between 40 and 100 millimeters. The surface hardness of diamond is around 98 HRA, enabling machining of ultra-hard materials such as silicon carbide, titanium alloys, and carbon fiber composites. Cutting speeds can reach up to 1000 meters per minute while maintaining dimensional accuracy within 0.005 millimeters.

Flat end types are used for creating smooth surfaces and precise slots, while ball end mills are ideal for 3D machining and mold manufacturing. Radius tip end mills are produced with edge radii ranging from 0.2 to 3 millimeters, providing greater strength in continuous operations. The helix angle is typically designed between 30 and 45 degrees to optimize chip evacuation. Thermal resistance up to 1100 degrees Celsius can be achieved with CVD or PVD coatings. These tools are manufactured in compliance with ISO 513 and DIN 6527 standards and are widely used in aerospace, mold making, and medical industries.

M6 Carbide End Mill

The M6 carbide end mill is a durable and precise tool for machining hard metals, steel alloys, and engineering non-metallic materials. The tool shaft diameter is 6 millimeters, and its overall length typically ranges from 50 to 120 millimeters. Rotational speed on CNC machines can be adjusted between 12,000 and 30,000 RPM, providing sufficient cutting power for steel up to 45 HRC. Helix angles range from 30 to 45 degrees, and the number of cutting edges varies from 2 to 4 to ensure uniform and precise material removal. The tool weighs between 0.1 and 0.25 kilograms, and its M6 standard design allows excellent control while minimizing vibration during operation.

This end mill features coaxial runout accuracy below 0.005 millimeters and high thermal resistance up to 800 degrees Celsius at the cutting interface. Tool life with proper lubrication and cooling can reach up to 1,500 operational hours. Manufacturing according to ISO 13399 guarantees dimensional stability and quality for automotive, aerospace, and mold-making industries. This end mill is compatible with CNC machines, drills, and bench grinders, offering high precision and practical versatility.

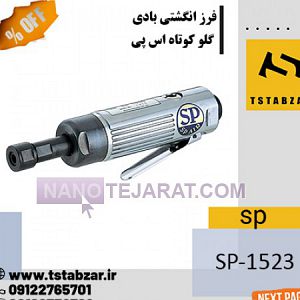

Short-Neck Pneumatic End Mill

The short-neck pneumatic end mill is a precision tool designed for machining metals and non-metallic materials in confined spaces. The overall tool length typically ranges from 80 to 150 millimeters, with the short neck measuring 20 to 50 millimeters. Shaft diameters are produced from 2 to 12 millimeters, and rotational speeds at 6 bar air pressure reach 20,000 to 35,000 RPM. The pneumatic motor input power usually ranges from 0.2 to 0.5 kilowatts, enabling fast material removal with minimal vibration. Tool weight ranges between 0.5 and 1.2 kilograms, ensuring operator control for precise machining.

These tools generally feature a coaxial shaft with runout below 0.01 millimeters and collets of 3 or 6 millimeters. Bearing life can reach up to 2,000 operational hours due to proper lubrication, while the short-neck design allows access to tight spaces. Helix angles range from 30 to 45 degrees, and cutting edges typically number 2 to 4, suitable for aluminum, mild steel, and engineering plastics. These end mills are manufactured according to ISO 2768 standards and are widely used in automotive, mold making, and small parts assembly industries.

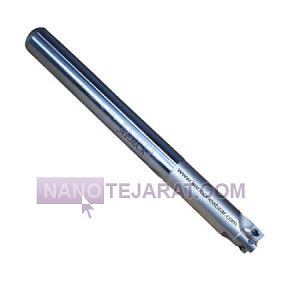

Diamond-tipped End Mill

The diamond-coated end mill is a precision tool designed for machining the hardest materials, including ceramics, glass, and tough composites. The overall tool length typically ranges from 80 to 150 millimeters, with shaft diameters from 2 to 12 millimeters. Rotational speeds with 6 bar air pressure or an electric motor reach 20,000 to 40,000 RPM, and motor power usually ranges from 0.2 to 0.6 kilowatts. The tool weighs between 0.5 and 1.2 kilograms to maintain operator control during precise machining and minimize vibration. Ergonomic design and coaxial shaft alignment with accuracy below 0.01 millimeters ensure consistent material removal during long operations.

These end mills feature cutting edges coated with industrial diamond and helix angles ranging from 30 to 45 degrees. The number of cutting edges typically ranges from 2 to 4, enabling material removal without causing cracks. With proper care and lubrication, tool life can exceed 2,500 operational hours. Diamond-coated end mills are manufactured according to ISO 2768 standards and are widely used in aerospace, mold-making, medical, and glass machining industries.

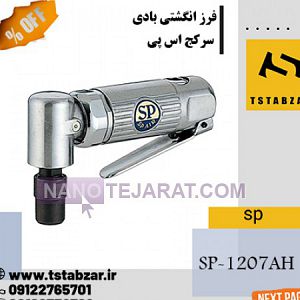

Angled-Head Pneumatic End Mill

The angled-head pneumatic end mill is a precision tool designed for accessing hard-to-reach angles and surfaces in machining metals and engineering plastics. The overall tool length typically ranges from 120 to 180 millimeters, with the angled shaft length between 30 and 60 millimeters. Shaft diameters are produced from 2 to 12 millimeters, and rotational speeds at 6 bar air pressure reach 18,000 to 30,000 RPM. Pneumatic motor power ranges from 0.2 to 0.6 kilowatts, enabling fast and precise material removal. The tool weight typically ranges from 0.6 to 1.3 kilograms, ensuring comfortable operation over extended periods.

This tool features 3- or 6-millimeter collets and coaxial runout accuracy below 0.01 millimeters. The angled shaft is usually designed between 15 and 45 degrees, and cutting edges number 2 to 4. The angled-head pneumatic end mill can machine aluminum, mild steel, brass, and engineering plastics, with bearing life up to 2,000 hours under proper lubrication. These tools are manufactured according to ISO 2768 standards and are widely used in automotive, mold making, and small parts assembly industries.

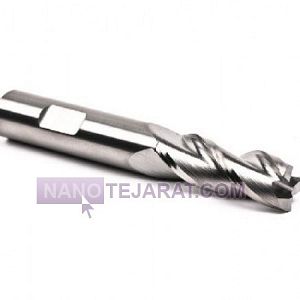

Stock End Mill

Stock end mills refer to tools that are either lightly used or surplus inventory available in the market. Their diameters typically range from 2 to 20 millimeters, with overall lengths between 50 and 120 millimeters. The hardness of stock carbide tools is around 90 HRA, enabling machining of alloy steels, cast iron, and aluminum. Cutting edges usually range from 2 to 6, and the helix angle is designed between 30 and 45 degrees. These specifications provide performance similar to new tools, while prices are on average 30 to 50 percent lower.

Stock end mills can include flat, ball, or radius tip types, and depending on coatings such as TiN or TiAlN, thermal resistance can reach up to 900 degrees Celsius. Runout accuracy of stock tools is maintained below 0.01 millimeters, making them suitable for machining molds and precision components. The average lifespan of a stock tool is approximately 60 to 80 percent of a new tool depending on prior usage. These products are tested according to DIN 6535 and ISO 9001 standards and are widely used in mold making, automotive, and medium-duty production lines.
