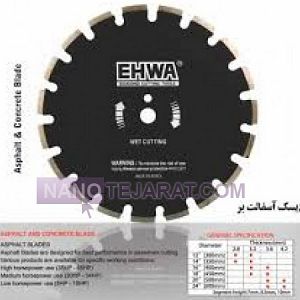

Diamond Asphalt Cutting Disc
Diamond asphalt cutting discs are produced in diameters from 300 to 1200 mm. The steel core is made from specially heat-treated low-carbon steel. Disc thickness ranges from 3.2 to 4.5 mm with a tolerance of ±0.15 mm. Coarse industrial diamond particles of 20/30 mesh are set in the segments. A hard bond matrix of cobalt-iron with 18-25% diamond concentration by volume is used. This composition provides high impact resistance up to 25 Joules. The recommended linear speed is between 35 to 50 meters per second. This disc is optimized for cutting asphalt depths of 100-150 mm with aggregates up to 7 Mohs hardness.
The disc structure features deep, wide gullets with a 15-degree angle. This design enables rapid removal of heavy debris and heat dissipation. The number of segments varies from 18 to 36 depending on the diameter. Segment height is 10 to 14 mm, designed for long service life. Segment edges are often nickel-coated to reduce friction. The disc mounts on balanced flanges with a TIR accuracy below 0.3 mm. This disc can cut up to 50 linear meters of asphalt per hour. Its service life before re-tipping reaches 1500 effective hours under standard conditions.
 | |
| jahanborsh | |
| jahanborsh |
| Iran |
StarMax Metal and Stainless Steel Cutting Disc
StarMax cutting discs are manufactured from M42 tungsten-vanadium steel. This composition guarantees a Rockwell hardness of 67 to 69. Standard disc diameters range from 100 to 350 millimeters. Core thickness is maintained between 1.2 to 2.5 mm with ±0.05 mm tolerance. Triangular teeth are designed with a positive 15-degree rake angle. This design reduces cutting force by 30%. Maximum cutting speed for stainless steel is set at 80 meters per second. The disc can cut profiles up to 100 millimeters thick. Its service life on mild steel reaches 5000 linear meters.
The disc structure features dynamic balancing holes. These holes reduce vibration levels to 2.5 microns. A Titanium Nitride coating, 3 microns thick, covers the surface. This coating reduces friction and operating temperature. The specialized cutting system ensures blue chip output. This indicates no loss of steel hardness at the cut point. The disc is recommended for cut-off machines with minimum 2200-watt power. Achieved cutting accuracy shows less than 0.1 mm deviation per meter. Vacuum packaging prevents oxidation during long-term storage.
 | |
| jahanborsh | |
| jahanborsh |
| Iran |
BLUEMOL Metal Cutting Disc
BLUEMOL cutting discs are made from M42 high-speed steel containing 8% cobalt. This composition maintains 67-69 Rockwell C hardness even under impact loads. Standard disc diameters range from 115 to 350 mm for various machines. Disc thickness is maintained between 1.6 to 2.6 mm with a dimensional tolerance of ±0.04 mm. The Aggressive Trip ATB tooth geometry with a 25-degree positive angle enables fast material removal. Maximum operating speed is 80 meters per second 13500 RPM for 115mm diameter. This disc is optimized for cutting structural steel, rebar, pipes, and profiles up to 40 mm thick.
The disc structure incorporates a bi-directional fiberglass reinforcement mesh for superior strength. A non-stick Titanium Nitride coating, 4 microns thick, reduces friction and heat. Laser-cut balancing holes limit vibration to under 2.0 microns. This product is recommended for use on handheld and benchtop cut-off saws with minimum 2200-watt power. Cut quality features minimal burr and a relatively smooth surface finish of Ra 6.3 micrometers. The discs service life on mild steel reaches 4500
 | |
