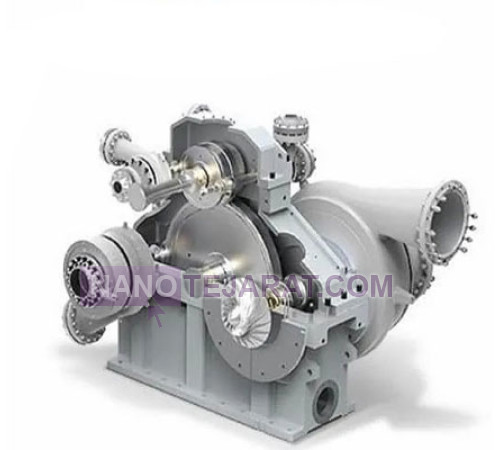

Centrifugal Compressor Integrally Gear , Iran
The centrifugal compressor features an integral speed-increasing gearbox design. Gears are made from nickel-chromium-molybdenum alloy steel AISI 4340 hardened to 58 HRC. Gearbox speed increase ratio ranges from 1:3 to 1:7 with mechanical efficiency reaching 98.5%. Three-dimensional impellers are made from titanium alloy 6Al-4V coated with wear-resistant WC/Co. Output shaft rotational speed reaches 60,000 RPM with G2.5 dynamic balance tolerance. Compressed air volumetric flow ranges from 50 to 1500 m³/min at 3.5 to 12 bar discharge pressure.
The shaft sealing system utilizes double mechanical seals made of silicon carbide. Main bearings are hybrid ceramic rolling type with a nominal life of 100,000 hours. The forced lubrication system operates with oil temperature maintained at 55±5°C. The compressor casing is constructed from ductile iron with internal anti-erosion epoxy coating. An advanced PLC control system with vibration and temperature monitoring is installed. Sound level at one meter is below 85 dB, and isentropic efficiency reaches up to 82%.You can order and buy Centrifugal Compressor Integrally Gear from Iran by contacting us through whatsaap and email.
WEBSITE: Centrifugal Compressor Integrally Gear Iran
Industrial Applications of Centrifugal Compressors
Centrifugal compressors operate using high rotational speed to generate pressure via centrifugal force. They are designed for very high air flow rates up to several hundred thousand cubic meters per hour. Their primary application is in the oil, gas, and petrochemical industries for cracking, refining, and gas transmission processes. In the steel and iron smelting industries, they are used for combustion air systems in blast furnaces. Power generation industries utilize them in gas turbines and combined-cycle power plants. The aviation industry uses them for testing ventilation systems and providing ground compressed air. In chemical and pharmaceutical industries, they are employed for fermentation processes and tank aeration. These compressors are preferred due to their high efficiency at large capacities and compact design.
