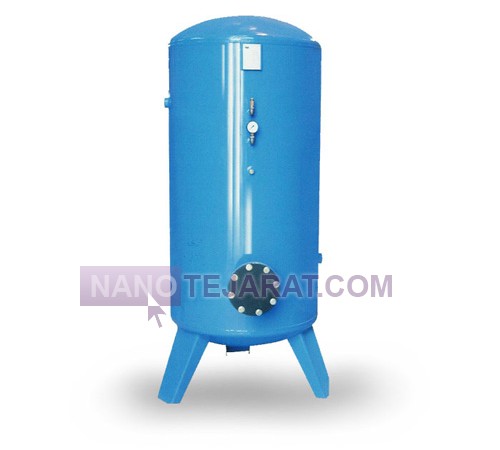

Compressed air receivers are constructed from carbon steel plate grade P355GH or stainless steel 304. Standard capacity ranges from 50 to 10,000 liters with a design pressure of 10 to 15 bar. Shell plate thickness is calculated based on pressure and diameter, ranging from 3 to 20 mm. All tank seams are welded using automated Submerged Arc Welding SAW technology. Post-fabrication, tanks undergo hydrostatic testing at 1.5 times the design pressure. A solvent-free two-component internal epoxy coating guarantees corrosion resistance. The external coating is industrial-grade polyurethane with a minimum thickness of 80 microns. Each tank includes a calibrated safety valve, pressure gauge, and drain valve.

The tank structure features a cylindrical shell with two hemispherical dished ends. The ends are cold-formed to a specified thickness-to-diameter ratio. All inlet/outlet connections are DIN or ANSI flanges with appropriate pressure ratings. The tank is mounted on steel supports with seismic restraint capability. Storage capacity should equal at least 20% to 30% of the compressors flow rate. An internal moisture separator baffle increases separation efficiency to 99%. Design complies with the European Pressure Equipment Directive PED 2014/68/EU and ASME Section VIII. Mandatory periodic inspection of the tank is required every 48 months.You can order and buy tank from Iran by contacting us through whatsaap and email.
