Breathing Compressor , Iran

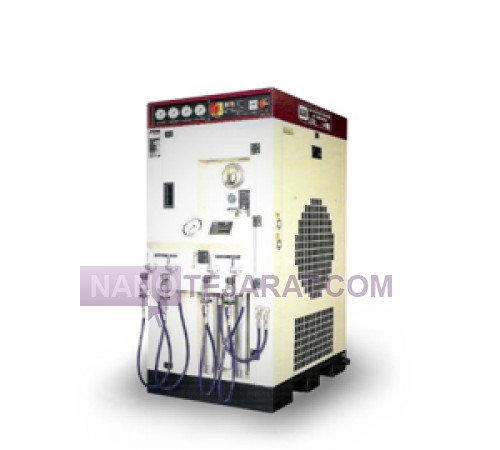

Breathing air compressors are constructed from 6061 aluminum alloy with hard anodized coating. They produce compressed air meeting ISO 8573-1 Class 0 purity standards. Output capacity typically ranges from 50 to 150 liters per minute at maximum working pressures up to 350 bar. A two-stage cooling system incorporates air-oil radiators and low-noise DC fans. Four-stage filtration includes particle separation, carbon absorption, catalytic conversion, and 0.01 micron particulate filters. A brushless DC BLDC motor with 92% efficiency and 2.2 to 4 kW power is employed. Operational noise level at 7 meters distance is below 60 dB. The unit features an air dryer system with a -40°C dew point rating.

The compressor structure comprises two titanium piston cylinders with hard chrome plating. A digital PID control system adjusts operating parameters within 1% accuracy. A 316L stainless steel storage tank, capacity 10-30 liters, rated for 550 bar hydrostatic test, is integrated. Continuous monitoring sensors track CO, CO2, and oil levels with 1 ppm precision. A touchscreen display shows filter status, output pressure, and temperature. It connects to breathing cylinders via DIN 477 valves with automatic fill-stop capability. The enclosure has IP54 protection against dust and water ingress. Total unit weight is 45-85 kg with compact dimensions for easy mobility.You can order and buy Breathing Compressor from Iran by contacting us through whatsaap and email.
