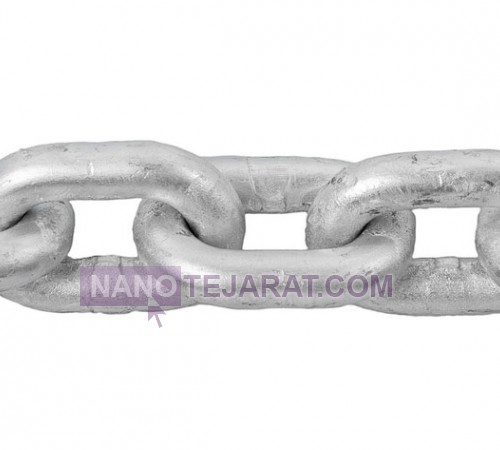

Hot dip galvanized chain , Iran

Hot-dip galvanized steel chains are made from carbon steel grade C50 or A8 with tensile strength of 800–900 N/mm². Wire diameters range from 6 to 30 mm with a pitch length approximately 3.2 to 3.6 times the wire diameter. Minimum breaking force varies from 25 to 550 kN depending on chain size. Working Load Limit is calculated with a 4:1 safety factor for general use and 5:1 for critical operations. The galvanizing process involves immersion in molten zinc at 450°C. Coating thickness is guaranteed between 50 to 100 microns per ISO 1461 standards.

The chain structure features resistance welded links with full circumferential flash butt welding. Links are designed in a standard oval shape with a 60-degree internal attachment angle for even load distribution. Post-heat treatment surface hardness is maintained between 30 to 35 HRC Rockwell C. The galvanized coating provides uniform coverage with high adhesion Grade 1 and scratch resistance. These chains are suitable for operating temperatures from –40°C to 200°C in humid and corrosive environments. Production complies with ISO 1834 Grade 8 and DIN 766 standards for industrial, marine, and agricultural applications.You can order and buy Hot dip galvanized chain from Iran by contacting us through whatsaap and email.
