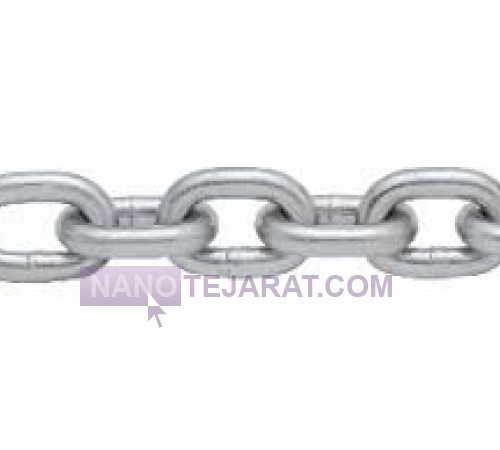

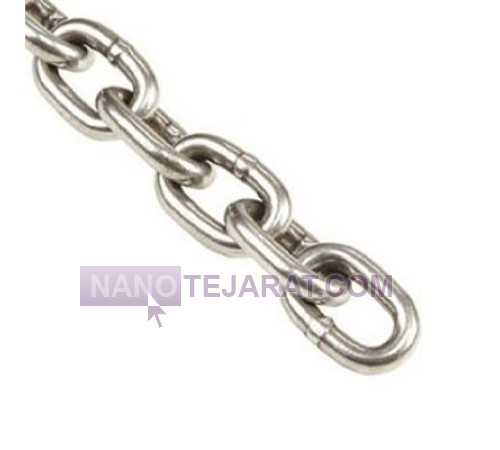

Galvanized high carbon chain , Iran

Galvanized steel chains are manufactured from carbon steel grade C50 or A8 with a tensile strength of 800–900 N/mm². Wire diameters range from 6 to 30 mm with a pitch length approximately 3.2 to 3.6 times the wire diameter. Minimum breaking force varies from 25 to 550 kN depending on chain size. Working Load Limit is calculated with a 4:1 safety factor for general use and 5:1 for critical operations. The galvanizing process uses hot-dip or electro-galvanizing methods with a coating thickness of 20 to 100 microns. The galvanized coating is certified per ISO 1461 for resistance to atmospheric corrosion and moisture.

The chain structure features resistance welded links with full circumferential flash butt welding. Links are designed in a standard oval shape with a 60-degree internal attachment angle for even load distribution. Post-heat treatment surface hardness is maintained between 30 to 35 HRC Rockwell C. The galvanized coating provides uniform coverage with high adhesion Grade 1 and wear resistance. These chains are suitable for operating temperatures from –40°C to 200°C in humid, marine, and mild chemical environments. Production complies with ISO 1834 Grade 8 and DIN 766 standards for industrial, agricultural, marine, and safety applications.You can order and buy Galvanized high carbon chain from Iran by contacting us through whatsaap and email.
