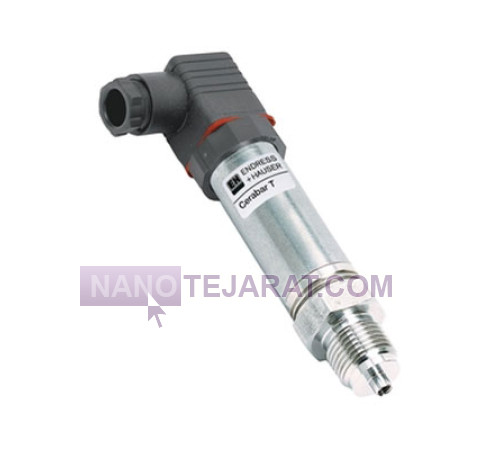

PMP131-A1101A1T 0-16 BAR 24VDCA4...20 pressure transmitter

The PMP131-A1101A1T pressure transmitter is a high-precision industrial sensor with a measuring range of 0 to 16 bar, designed for monitoring and controlling liquid and gas pressure. It operates with a 24V DC power supply and provides a standard 4–20 mA current output signal. The sensing element is piezoresistive with an AISI 316L stainless-steel diaphragm, offering measurement accuracy of ±0.5% of full scale. The housing is made of corrosion-resistant stainless steel with IP65 protection. The operating temperature range is -20°C to +80°C, and the maximum allowable pressure is 25 bar.

The PMP131-A1101A1T features a G1/4 threaded process connection and a DIN EN 175301-803-A electrical connector. Its response time is less than 5 milliseconds, with long-term stability below 0.2% per year. This model is suitable for hydraulic and pneumatic systems, industrial machinery, and process control applications. The device weighs approximately 180 grams and complies with CE and EMC standards for operation in electrically noisy industrial environments.
