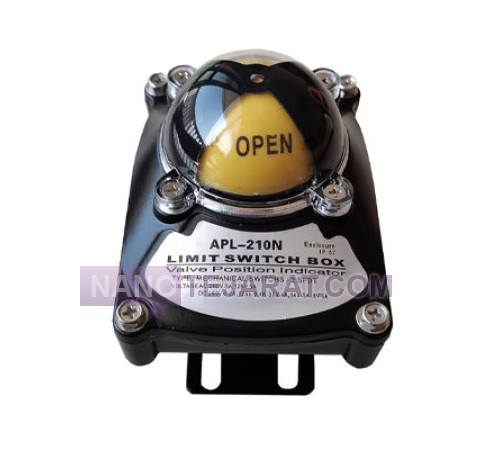

Limit Switch Box APL-210N Mechanical Switches / 2 SPDT AC 250V 5A

The APL-210N limit switch box is a precision mechanical position indicator designed for detecting open and closed states of industrial valves. It features two SPDT mechanical switches rated at 5A and 250V AC. The housing is made of die-cast aluminum with epoxy coating for corrosion resistance and provides IP67 protection. Its operating temperature range is from -20°C to +80°C, and the terminals use spring-type connectors with heat-resistant insulation. The position indicator is made of transparent polycarbonate and rotates 360 degrees for visibility from any direction.

The APL-210N limit switch box includes an M20×1.5 cable entry and ISO 5211 standard mounting base compatible with rotary actuators. It is equipped with a dual-color mechanical indicator and a stainless-steel shaft ensuring high positioning accuracy. The shaft rotation angle is 90 degrees with a position detection accuracy of ±1 degree. The unit weighs approximately 850 grams and offers a mechanical switch lifespan exceeding one million cycles. This model is designed for industrial automation, petrochemical plants, and flow control systems.
