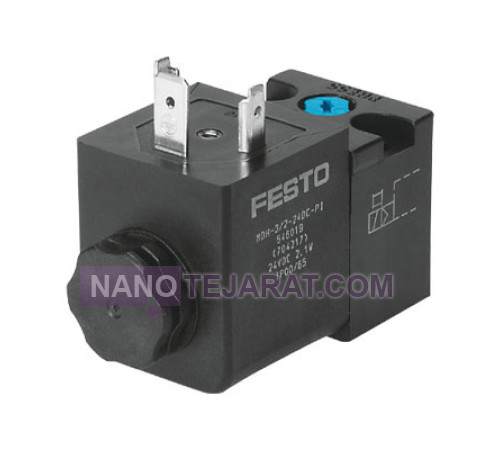

Festo solenoid coil model MDH-3/2-24DC-PI operates at 24V DC

The Festo solenoid coil model MDH-3/2-24DC-PI operates at 24V DC with a rated power of 2.1W, designed for precise and stable performance in pneumatic systems. Identified by part number 546019, it uses a high-purity copper winding capable of continuous duty within thermal class F up to 155°C. The coil has an electrical resistance of approximately 275 ohms and a nominal current of about 85 mA. Its housing is made from heat- and impact-resistant polyamide, providing IP00 protection when unmounted and IP65 when attached to the valve.

This coil is engineered for the Festo MDH valve series with a quick-mount mechanical locking system for secure installation. It features a response time under 15 milliseconds and complies with EMC standards per EN 61000. Its low power consumption and precise actuation enhance efficiency in industrial automation, production lines, and packaging systems. The coil operates reliably within a temperature range of -10°C to +50°C and up to 90% relative humidity without condensation.
