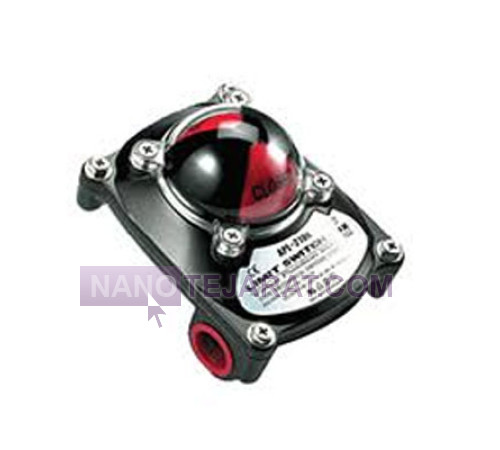

VDXCL12M1-18-00200 switch box

The VDXCL12M1-18-00200 switch box is a high-precision electro-mechanical position indicator designed for monitoring the open and closed states of rotary valves. It features two SPDT microswitches rated at 5A, 250V AC. The housing is made of epoxy-coated die-cast aluminum, providing corrosion resistance and IP67 protection. Its operating temperature range is from -25°C to +85°C, and it includes a stainless-steel shaft with NBR sealing to prevent moisture and dust ingress. The position indicator is made of durable polycarbonate with 360° visibility for clear valve status indication.

The VDXCL12M1-18-00200 switch box includes an M20×1.5 cable entry and ISO 5211 mounting base for compatibility with pneumatic and electric actuators. The shaft rotation angle is 90°, and the switch repeatability accuracy is ±1°. Each microswitch has a mechanical lifespan exceeding one million cycles, with a response time below 10 milliseconds. Designed for industrial, process control, petrochemical, and automated production systems, this device complies with CE and ATEX standards for safe operation in environments containing flammable gases or dust.
