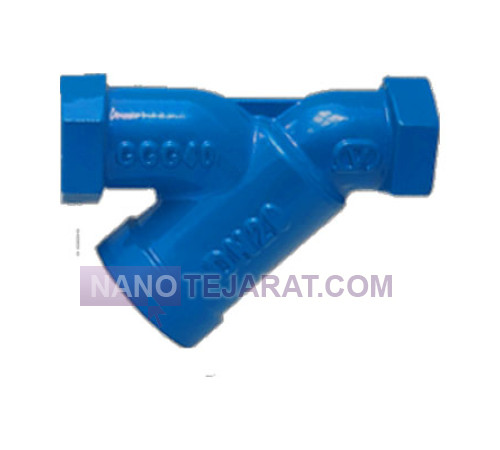

The Vogiran threaded strainer valve is designed with a ductile iron GGG40 or bronze body to remove suspended particles from fluid systems. It features a stainless steel 304 or 316 mesh filter with a filtration precision of 500–800 microns. The valve body is rated for PN16 pressure and operates effectively within a temperature range of 0°C to 200°C. Its threaded connections are manufactured according to ISO 7/1 BSP or NPT standards, ensuring reliable sealing and leak-free performance. The bottom cap is threaded for easy drainage and filter maintenance, making it ideal for water, air, steam, oil, and other non-corrosive fluids.
Depending on the nominal diameter DN15–DN50, the valve weight ranges from 0.4 to 2.5 kilograms. The internal and external surfaces are epoxy-coated for excellent corrosion and rust resistance. The Y-pattern body design minimizes pressure loss and enhances flow efficiency. Built in accordance with EN 558 and DIN 3202 standards, the stainless-steel mesh is removable and washable for repeated use. The Vogiran threaded strainer valve combines durability, easy maintenance, and high filtration accuracy, making it a preferred choice for industrial systems, heating installations, and water supply lines.
WEBSITE: Vogiran threaded strainer valve Iran
To install a WEG Iran threaded strainer, first shut off system flow and fully release internal pressure. The valve body and threaded connections should be carefully aligned with the pipeline axis to avoid excess stress. The strainer must be installed according to the flow direction indicated on the body to ensure optimal filtering and solid particle discharge. Applying Teflon tape or standard sealing materials on threads prevents leakage. After installation, perform operational and leakage tests at system working pressure. Periodic maintenance, including cleaning the internal mesh and inspecting metal surfaces for corrosion, ensures long service life and stable operation.
