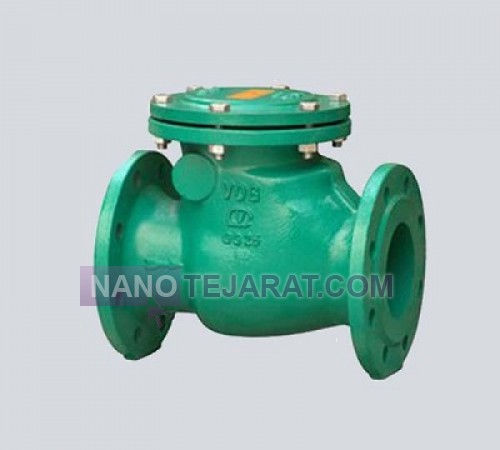

Automatic Swing Check Valve WEG Iran Model Figure 287 for Steam Systems: Technical Specifications
Valve Type: Automatic swing check valve with a flap mechanism Check Valve
Model: Figure 287
Connection: Flanged connection according to DIN/ANSI standards, customizable based on project requirements
Body Material: Carbon steel or stainless steel, suitable for working conditions and installation environment
Disc Material: Stainless steel with corrosion and wear-resistant coating
Working Pressure: Up to 40 bar, depending on order type and related standards
Operating Temperature: Up to 450°C, suitable for high-temperature industrial steam systems
Sealing Type: Mechanical or metal sealing capable of withstanding high pressure and temperature
Dimensions and Sizes: Available in various sizes from DN 15 to DN 300, customizable according to project needs
Standards: Compliant with international standards API 6D, DIN EN 12334, and ISO standards for check valves
WEBSITE: Automatic Swing Check Valve Flanged vogiran Iran
The WEG Iran Automatic Swing Check Valve, Flanged Model Figure 287, is one of the essential and widely used components in steam flow transfer and control systems. With its swing-type design and flanged structure, this check valve allows flow in only one direction and effectively prevents backflow. Therefore, it is considered an ideal choice for applications where the prevention of steam or fluid return is critical.
Key Features of the WEG Iran Figure 287 Automatic Check Valve:
Swing-Type Flanged Design: Secure and standardized flanged connection ensures easy installation and leak-free performance in high-pressure steam systems
Automatic Operation: Operates automatically without the need for manual intervention to control the flow
High Pressure and Temperature Resistance: Suitable for steam systems with high temperature and variable pressure conditions
Backflow Prevention: The swing mechanism ensures that fluid or steam flows in only one direction
High-Quality Materials: Constructed from corrosion- and wear-resistant materials for extended service life
