Search Results For Wire Rope Clips

wire rope clips

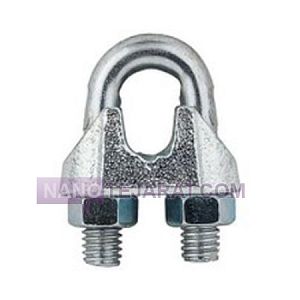

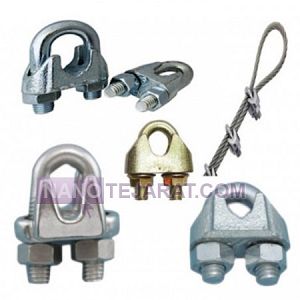

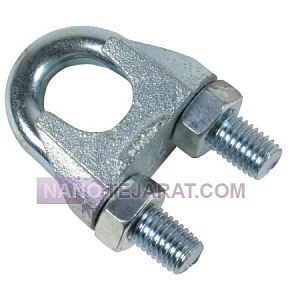

The steel wire rope clip is a durable mechanical fitting used to secure and fasten wire ropes in lifting systems, cranes, steel structures, and industrial applications. Clip sizes typically match wire rope diameters from 6 mm to 40 mm, with load capacities ranging from 0.5 to 20 tons depending on size and steel grade. The body is made from carbon steel or alloy steel, and some models undergo heat treatment to enhance tensile strength and durability. The surface is protected with hot-dip galvanizing, zinc plating, or phosphating to resist corrosion, moisture, and environmental conditions.

Structurally, the steel wire rope clip consists of a saddle base, a threaded steel U-bolt, and two heavy-duty hex nuts that apply uniform clamping force to secure the wire rope. It is widely used for forming wire rope eyes, structural bracing, and medium-duty connections. Proper installation—including correct number of clips, standard spacing, and correct saddle orientation—is essential for safety. Steel wire rope clips are commonly manufactured according to DIN 741 and EN 13411-5 standards to ensure strength, safety, and reliable performance.


hardwire-steel-wire-rope	021-55423008

hardwire-steel-wire-rope

Iran

021-55423008

wire rope clips

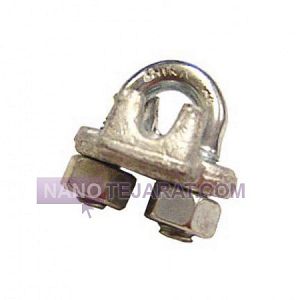

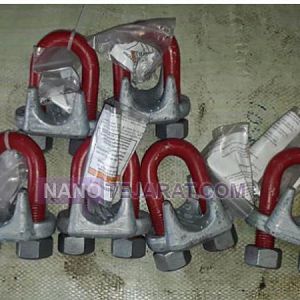

The forged wire rope clip is a heavy-duty mechanical fitting used to secure and fasten wire ropes in lifting systems, cranes, and industrial applications. Clip sizes are typically selected for wire rope diameters ranging from 6 mm to 40 mm, with load capacities from 0.5 to 25 tons depending on size and material grade. The clip body is manufactured from forged alloy steel with controlled heat treatment, providing high tensile and impact strength. The surface is protected with hot-dip galvanizing or zinc plating for long-term resistance against corrosion, moisture, and wear.

Structurally, the forged wire rope clip consists of a saddle base, a threaded U-bolt, and two heavy-duty hex nuts to ensure a secure and stable connection. The engineered design distributes clamping force evenly across the wire rope, preventing crushing or slippage. This clip is widely used for forming wire rope eyes, temporary or permanent connections, and tensioning systems, manufactured according to EN 13411-5 and ASTM A952 standards to guarantee safety, strength, and reliable performance.


hardwire-steel-wire-rope	021-55423008

hardwire-steel-wire-rope

Iran

021-55423008

wire rope clips

The cast iron wire rope clip is an economical mechanical fitting used for securing wire ropes in light to medium-duty applications. Clip sizes typically match wire rope diameters from 6 mm to 26 mm, with load capacities ranging from 0.3 to 8 tons depending on size and material quality. The body is made of ductile or malleable cast iron, offering good compressive strength but lower tensile and impact resistance compared to forged types. The surface is usually zinc-plated electro-galvanized for improved resistance against corrosion and moisture.

Structurally, the cast iron wire rope clip consists of a saddle base, a threaded steel U-bolt, and two hex nuts that apply uniform pressure to secure the wire rope. This type is mainly used for forming wire rope eyes in non-critical applications, light-duty rigging, and temporary connections. Proper installation, including correct number of clips and spacing, is essential for safety. Cast iron wire rope clips are commonly manufactured according to DIN 741 standards to provide acceptable performance for light-duty uses.
